How To Choose a Butterfly Valve and What Are the Parts?
Consider these key factors when selecting the right butterfly valve:
Material: Assess the operating conditions, lifespan, and characteristics of the fluid handled. Factors like temperature, pressure, and corrosiveness are crucial. Common materials include carbon steel, stainless steel, PVC, and CPVC.
Valve Sizing: Determine the valve size based on fluid properties such as specific gravity and viscosity, inlet and outlet pressures, maximum capacity, and pressure drop.
Seat Type: Resilient seats offer excellent sealing, while metal seats are preferable for high-pressure and high-temperature environments.
Disk Type: Concentric disks suit low-pressure settings, while eccentric disks (double or triple offset) enhance control and sealing performance in high-pressure environments.
Actuator Type: Choose from electric, manual, and pneumatic actuators. Manual options provide simplicity, while electric and pneumatic actuators offer automation, particularly beneficial for large or remote systems requiring precise flow control.
Actuator Speed: Fast-acting actuators are ideal for quick isolation, while slow-acting ones are suitable for controlled adjustments.
Fluid Characteristics: Consider the properties of the fluid being handled. For gas systems, tight sealing is crucial. In slurry applications, prevent premature wear and address potential issues like disk jamming or material entrapment for efficient flow control.

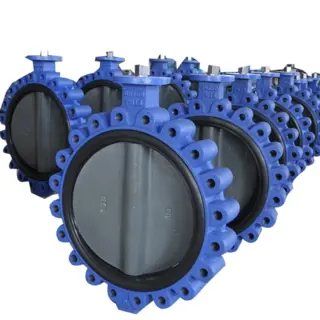

A butterfly valve consists of various vital components, as illustrated in Figure 8:
Valve Body: This robust enclosure connects the valve to the piping system and houses the internal components.
Disk: This component regulates fluid flow by rotating within the valve, transitioning from fully open to fully closed with a 90° turn.
Stem: The stem is a shaft that links the disk to the external operating mechanism. It is sealed with O-rings and bushings to prevent fluid leakage.
Seat or Sealing Ring: Found in basic concentric butterfly valves, the valve seat forms a seal between the disk’s edge and the valve body when the valve is closed.
Operating Mechanism: Responsible for controlling fluid flow through the valve, the external operating mechanism can be manually operated by rotating the stem or automatically controlled with an electrical or pneumatic actuator.
Bushing or Bearing: These high-quality components are corrosion and wear-resistant, facilitating precision control in diverse applications such as chemical, petrochemical, and paper production. Available in various materials, some bushings are self-lubricating, enhancing valve performance.
Butterfly valves find widespread application across various industries due to their versatility:
In HVAC (Heating, Ventilation, and Air Conditioning) systems, they regulate airflow within ducts, ensuring efficient temperature control.
They play a crucial role in maintaining precise control over chemical processes and are prevalent in pharmaceutical manufacturing and food processing industries.
Butterfly valves are indispensable in directing the movement of water and various treatment agents in purification processes. They are also utilized in irrigation systems and water distribution networks to regulate water flow effectively.
They are instrumental in controlling the movement of materials in pipelines, commonly employed in oil refineries and petrochemical plants to facilitate the production and processing of various petroleum products.
