In the realm of industrial automation and process control, valves play a crucial role in regulating the flow of gases, liquids, and steam through pipelines. Among the various types of valves, control valves are essential components that manage flow rates, pressure, and temperature to maintain safe and efficient operations.
Control valves are broadly categorized based on their actuation mechanism, with pneumatic and electric actuators being the two dominant technologies. Both types serve similar fundamental purposes, but they differ significantly in power sources, response times, installation requirements, control precision, and suitability for various operating environments. Understanding these differences is key for engineers, plant operators, and maintenance professionals to select the most appropriate valve solution for a specific application.

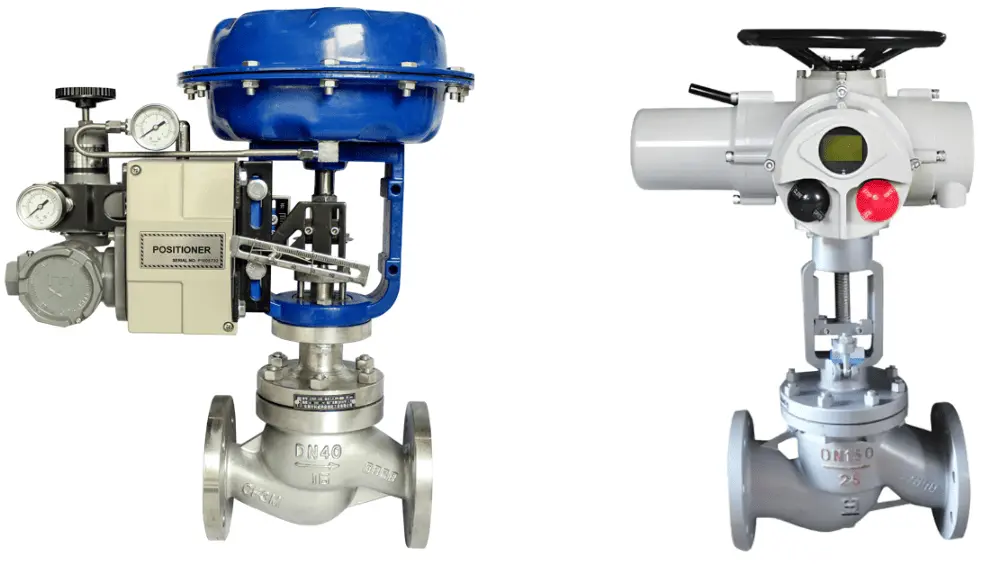

This article provides a comprehensive comparison between pneumatic and electric control valves, highlighting their operational characteristics, advantages, limitations, and maintenance considerations.
Pneumatic control valves are actuated using compressed air. The actuator converts air pressure into mechanical motion, which then moves the valve plug, disc, or gate to regulate flow. Pneumatic valves are widely used in industries such as chemical processing, oil and gas, power generation, and water treatment due to their reliability and fast actuation.
Key features of pneumatic control valves include:
Rapid response times: Compressed air moves quickly through the actuator, allowing the valve to adjust flow almost instantaneously.
Mechanical simplicity: Pneumatic actuators typically have fewer moving parts compared to electric actuators, making them less susceptible to certain mechanical failures.
Safety in hazardous environments: Since these valves do not rely on electricity, they are inherently safer in explosive or flammable atmospheres.
Pneumatic valves are particularly beneficial in scenarios where air supply is readily available and immediate valve action is critical.
Electric control valves utilize electric motors to power their actuators. The motor converts electrical energy into mechanical motion, moving the valve to the desired position. Electric actuators can be either rotary or linear, depending on the valve design, and are widely used in applications where precision, energy efficiency, and remote control are paramount.
Key features of electric control valves include:
High precision: Electric actuators allow for fine adjustments with digital or analog control signals.
Remote operation capabilities: Electric valves can be integrated with modern process control systems, allowing operators to monitor and control valves from a central control room.
Energy efficiency: Electric actuators do not require continuous air supply, reducing energy consumption in comparison to pneumatic systems.
Electric valves are especially suitable for processes where slow, precise adjustments are needed, and where compressed air may not be readily available.
The actuation mechanism defines the primary power requirement for control valves:
Pneumatic Control Valve: Powered by compressed air, typically supplied from an industrial air compressor. The air pressure is directed to the actuator, which moves the valve. This requires a continuous and reliable air supply, along with associated piping, regulators, and filters to maintain proper operation.
Electric Control Valve: Uses an electric motor to drive the actuator. The motor receives electrical signals from a control system, converting them into precise valve movement. Electric valves only require an electrical connection, simplifying power supply needs.
Implication: Plants with existing compressed air infrastructure may find pneumatic valves convenient, while facilities emphasizing remote monitoring and automation often favor electric valves.
Response time refers to how quickly a valve can react to control signals and reach the desired position:
Pneumatic Actuated Valve: Pneumatic valves typically offer faster response times due to the rapid movement of air within the actuator. They are ideal for applications requiring frequent and quick adjustments, such as emergency shutdown systems or high-speed flow regulation.
Electric Valve Actuator: Electric valves may have slower response times relative to pneumatic valves, depending on motor speed and actuator design. However, modern electric actuators have narrowed this gap significantly, with high-speed motors and advanced control algorithms improving performance.
Implication: Where speed is critical, pneumatic valves have an edge. For applications prioritizing precise positioning over rapid changes, electric valves are often more suitable.
The installation process and ongoing maintenance requirements differ between pneumatic and electric systems:
Air-Operated Control Valve: Installing pneumatic valves can be more complex due to the need for an air supply network. This includes compressors, air filters, regulators, and piping. Maintenance requires checking for leaks, servicing compressors, and ensuring air purity to prevent actuator malfunction.
Motorized Control Valve: Electric valves are generally simpler to install, needing only an electrical connection and proper mounting. Maintenance is also easier, focusing on electrical connections, actuator calibration, and occasional motor servicing.
Implication: Facilities with limited mechanical expertise or without a reliable air system may benefit from electric valves, whereas pneumatic valves suit plants with established air infrastructure.
Precision is critical in processes that demand fine flow adjustments:
Pneumatic Control Valve: Offers excellent control through proportional air pressure adjustments. This allows for subtle changes in valve position, making them suitable for sensitive processes where accurate flow control is crucial.
Electric Control Valve: Provides precise control with digital or analog feedback. While extremely fine adjustments may be limited compared to pneumatic systems in some cases, electric valves benefit from modern digital controllers that enhance accuracy and repeatability.
Implication: For highly sensitive applications requiring rapid fine-tuning, pneumatic valves may have a slight advantage, but electric valves are increasingly capable with advanced automation systems.
The choice of valve also depends on the environment where it will operate:
Pneumatic Control Valve: Ideal for hazardous or explosive environments. The absence of electricity eliminates the risk of sparks, making pneumatic valves safer in flammable atmospheres.
Electric Control Valve: Requires careful consideration in hazardous locations. Explosion-proof or intrinsically safe electric actuators must be used to prevent ignition sources.
Implication: Safety regulations and environmental conditions heavily influence the valve selection process, particularly in chemical, petrochemical, and oil & gas industries.
Long-term maintenance and lifecycle costs are key factors in valve selection:
Electric Control Valves: Typically require less frequent maintenance than pneumatic valves because there are no compressed air systems to service. Advanced electric actuators often include diagnostic features that support condition-based maintenance, allowing operators to schedule interventions only when needed. Modular actuator designs also enable rapid component replacement, reducing downtime.
Pneumatic Control Valves: Require regular inspection of air supply components, including compressors, filters, and pipelines. Pneumatic systems are generally more tolerant of mechanical expertise limitations, allowing simpler repairs in field conditions without electronic troubleshooting.
Implication: Plants must weigh available maintenance resources, spare parts accessibility, and staff expertise when selecting between pneumatic and electric control valves. Electric valves reduce operational labor in high-tech facilities, while pneumatic valves remain advantageous in environments where simplicity and mechanical reliability are prioritized.
Advantages:
Fast response and actuation
High control precision
Safe for explosive atmospheres
Mechanically simple, with fewer electronic failures
Limitations:
Requires continuous compressed air supply
More complex installation with associated air infrastructure
Regular maintenance of air systems is necessary
Advantages:
High accuracy with digital control
Easy integration with automation systems
Low maintenance compared to pneumatic systems
Energy-efficient operation without continuous air supply
Limitations:
Slower response in some applications
Requires careful design for hazardous environments
Initial cost may be higher due to advanced actuators and electronics
Pneumatic valves are often chosen for industries where speed, simplicity, and safety are critical:
Oil & Gas: Emergency shutdown and safety systems
Chemical Processing: Rapid flow adjustments and hazardous locations
Power Plants: Boiler control and high-pressure steam regulation
Electric valves are preferred where precision, automation, and energy efficiency are paramount:
Water and Wastewater Treatment: Remote monitoring and fine flow control
HVAC Systems: Integration with building management systems
Pharmaceutical and Food Processing: Cleanroom and precise process control
By evaluating specific operational needs, environmental factors, and maintenance capabilities, industries can select the valve technology that maximizes efficiency, safety, and longevity.
Both pneumatic and electric control valves have their unique advantages and are suited to specific industrial requirements. Pneumatic valves offer rapid response, mechanical simplicity, and safety in hazardous environments, while electric valves provide high precision, integration with modern control systems, and reduced maintenance demands.
Selecting the appropriate control valve requires a careful assessment of:
Power source availability
Response time requirements
Installation and maintenance capabilities
Control precision needs
Operating environment constraints
By understanding these key differences, engineers and plant operators can make informed decisions, ensuring reliable, efficient, and safe operation of industrial processes.
