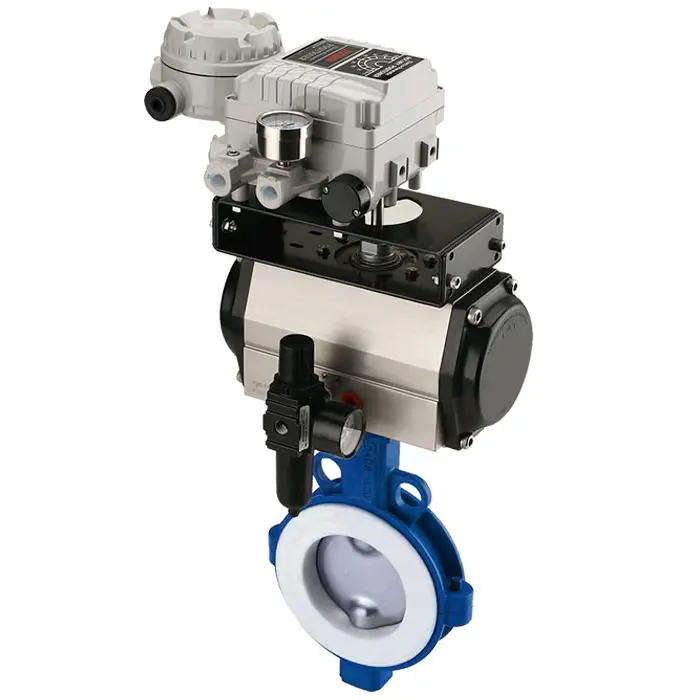

Butterfly control valves are versatile, quarter-turn valves that use a rotating disc to control the flow of fluids through a pipeline. Positioned perpendicular to the flow, the disc opens or closes when the valve is rotated, regulating the fluid movement. These valves are widely favored across various industries due to their low cost, quick operation, and high flow capacity. Typical applications include HVAC systems, water treatment and distribution plants, chemical processing facilities, and numerous industrial processes.
Butterfly control valves offer several key advantages over other valve types, including their compact design and relatively simple construction. However, maintaining them to ensure optimal performance is crucial, as improper maintenance or unexpected issues can lead to inefficiencies or system failures. This article will explore the different types of butterfly control valves, common issues that may arise, and essential maintenance and troubleshooting techniques to keep these valves performing at their best.

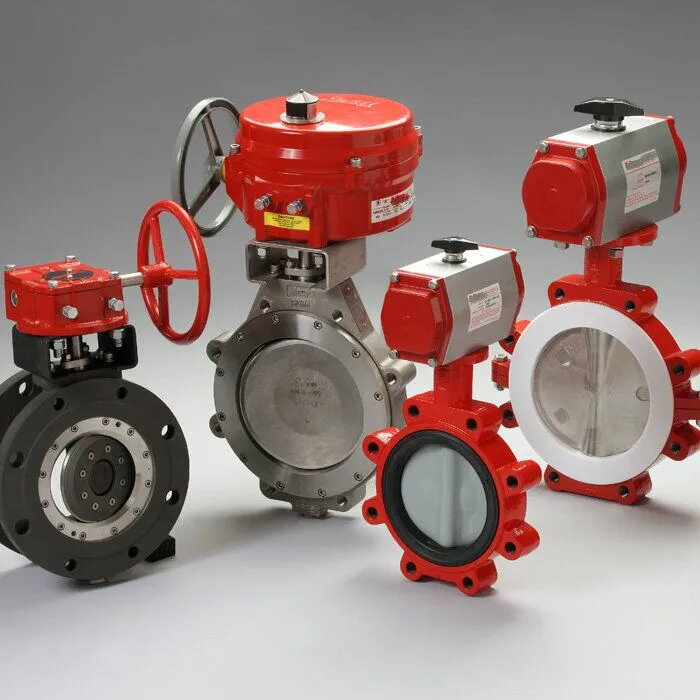

Butterfly control valves come in various designs, each suited to specific applications. The three most common types are wafer, lug, and flanged butterfly control valves.
Wafer-type butterfly valves are lightweight and compact, designed to fit snugly between flanges in a pipeline. These valves do not have their own flanges but instead have holes that align with the flange bolt patterns, securing the valve in place. This design makes them economical and suitable for installations with limited space.
Wafer-type valves are commonly used in HVAC systems, water treatment plants, and distribution networks. They are particularly valued for their ease of installation and cost-effectiveness. However, they are not as robust as other types, making them less ideal for high-pressure applications.
Advantages:
Lightweight and compact
Cost-effective
Easy to install and maintain
Disadvantages:
Lower pressure tolerance
Not suitable for isolation applications
Lug-type butterfly valves feature threaded inserts on the valve body, allowing the valve to be bolted directly to the pipeline. This design enables one side of the pipeline to be disconnected without disturbing the opposite side. Lug-type valves are typically more robust and secure compared to wafer-type valves.
They are commonly found in chemical processing, oil and gas industries, and other applications requiring reliable isolation. Although lug-type valves are more expensive, they offer enhanced durability and reliability.
Advantages:
Secure pipeline connection
Allows disassembly from one side without affecting the other
Suitable for medium to high-pressure applications
Disadvantages:
More expensive than wafer-type valves
Heavier construction
Flanged butterfly valves have integral flanges on the valve body, providing a secure connection to the pipeline. These valves are designed to handle high-pressure and high-temperature environments, making them ideal for demanding industrial applications such as power generation, chemical processing, and oil and gas production.
The flanged connection ensures a leak-proof seal, reducing the risk of fluid loss or contamination. Although they are the most expensive among butterfly valve types, the superior durability and secure attachment make them worth the investment.
Advantages:
High-pressure and high-temperature tolerance
Secure and leak-free connection
Suitable for heavy-duty applications
Disadvantages:
Higher cost
Bulky and heavier compared to other types
Regular maintenance is essential for ensuring the reliable performance and longevity of butterfly control valves. Proper care can significantly reduce the risk of unexpected failures and help maintain efficient system operations. Below are the critical maintenance practices to follow:
Routine inspections are fundamental to identifying potential issues before they escalate. During inspections, the following components should be examined:
Valve Body: Check for cracks, corrosion, or signs of leakage.
Disc: Inspect for buildup or deformation, as these can affect sealing and flow control.
Stem: Ensure the stem is securely connected and free from wear.
Seat: Look for signs of wear or damage, as a compromised seat can cause leakage.
Actuator: Verify that the actuator is functioning correctly, with no signs of jamming or excessive play.
Regular inspections help detect minor issues before they become major problems, minimizing downtime and maintenance costs.
Although butterfly valves generally do not require lubrication, pneumatic actuators may need lubricated air for smooth operation. Regularly check the air supply and maintain adequate lubrication to prevent actuator sticking or sluggish performance.
Best Practices:
Use the manufacturer-recommended lubricants.
Avoid excessive lubrication, as it may attract contaminants.
Periodically clean and inspect actuator components.
Contamination or debris buildup on the disc and seat can cause improper sealing and compromised performance. Cleaning the internal components helps maintain optimal flow control and prevents leakage.
Clean the valve body and disc with suitable cleaning agents to remove scale and deposits.
Flush the system regularly to remove any contaminants.
Avoid abrasive cleaning materials that may damage the valve surface.
Improper sealing or packing adjustments can result in leakage or pressure loss. Periodic adjustment of the packing and replacement of worn components is necessary.
Tighten packing bolts gradually to avoid excessive force.
Replace damaged gaskets and seals as needed.
Ensure the packing material is compatible with the fluid being handled.
Actuators are vital to the operation of butterfly control valves, especially in automated systems. Regular maintenance ensures consistent and reliable performance.
Check for alignment and proper connection between the actuator and valve stem.
Test the actuator's responsiveness and control accuracy.
Calibrate the actuator periodically to maintain precision.
Despite proper maintenance, butterfly control valves can still encounter issues that require prompt troubleshooting. Here are some common problems and their potential solutions:
Cause: Damaged seat or worn-out seals.
Solution:
Replace the valve seat or seals.
Tighten bolts and ensure proper alignment.
Conduct pressure testing to verify sealing integrity.
Cause: Debris buildup or actuator malfunction.
Solution:
Clean the valve interior and remove any debris.
Check actuator alignment and recalibrate if necessary.
Inspect the stem and bearings for corrosion or damage.
Cause: Actuator failure or disc misalignment.
Solution:
Inspect the actuator for calibration issues or power loss.
Verify that the disc rotates smoothly without obstruction.
Check the control system for faults.
Cause: Loose components or improper installation.
Solution:
Tighten all bolts and fasteners.
Inspect the pipeline for proper support.
Ensure the valve is installed according to manufacturer guidelines.
Butterfly control valves are indispensable in many industrial applications due to their efficiency, cost-effectiveness, and versatility. However, to maintain optimal performance and prolong their lifespan, regular maintenance and prompt troubleshooting are crucial.
By conducting regular inspections, ensuring proper lubrication, and promptly addressing issues like leakage or sticking, operators can significantly reduce the risk of valve failure. Implementing a proactive maintenance strategy not only enhances the reliability of butterfly control valves but also helps avoid costly repairs and downtime.
Through diligent upkeep and consistent monitoring, butterfly control valves can continue to deliver exceptional flow control and pressure regulation, keeping industrial processes running smoothly and efficiently.
