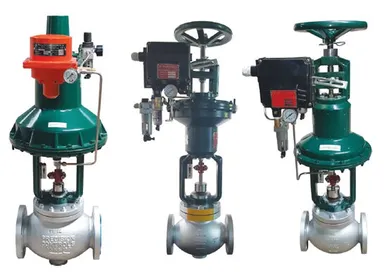

Pneumatic control valves play a vital role in numerous industrial applications, offering precise control over fluid and gas flow by converting air pressure into mechanical motion. These valves are commonly used in processes where automation and efficient flow management are critical. Understanding how these valves work, the common faults they may encounter, and effective troubleshooting techniques is essential for maintaining operational efficiency and minimizing downtime.

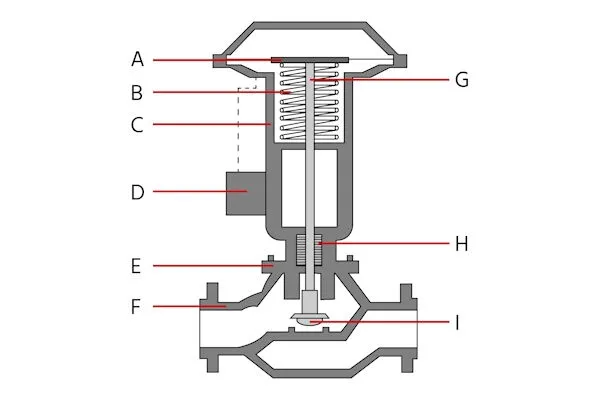

A pneumatic control valve consists of several key components, each serving a distinct purpose in ensuring smooth and accurate flow control. Let’s break down the fundamental components and their functions:
The actuator is the heart of the pneumatic control valve, responsible for transforming air pressure into mechanical motion. This component can be of two primary types: diaphragm and piston. The actuator’s function is to move the valve stem, thereby adjusting the valve’s position and controlling the fluid or gas flow.
Diaphragm Actuators: These use a flexible diaphragm that moves when air pressure is applied. They are commonly used for low-pressure applications and offer quick response times.
Piston Actuators: These are more robust and suitable for high-pressure environments, as they use a piston to create motion.
Actuators can be categorized further into single-acting and double-acting types:
Single-Acting Actuators: Utilize air pressure to move in one direction while relying on a spring to return to the original position when air pressure is lost.
Double-Acting Actuators: Use air pressure to move in both directions, providing greater control over valve positioning without relying on a spring return.
In single-acting actuators, a spring mechanism serves as a fail-safe device. If air pressure is lost, the spring automatically returns the valve to a predetermined safe position. This feature is crucial in applications where unintentional valve openings or closures could pose safety risks or disrupt processes.
The yoke is a structural component that securely connects the actuator to the valve body. It ensures proper alignment and stability, especially when dealing with high-pressure systems or large valves. A robust yoke design reduces vibrations and misalignments that could lead to operational issues or mechanical damage.
The positioner plays a critical role in achieving precise valve positioning. It receives control signals and adjusts the actuator to set the valve in the desired position. Additionally, the positioner sends feedback to the control system to ensure accurate operation. Depending on the level of control accuracy and communication needed, positioners can be:
Pneumatic Positioners: Operate purely on air signals and are ideal for simpler systems.
Electro-Pneumatic Positioners: Convert electrical signals into pneumatic outputs, offering more accurate control.
Digital Positioners: Use microprocessors to receive signals and make real-time adjustments, providing high accuracy and data communication capabilities.
The bonnet is the protective housing that covers the valve stem and internal components. Its primary function is to provide a pressure-tight seal while allowing maintenance access when needed. The bonnet's design must withstand the operational pressure and temperature of the system to maintain reliability and safety.
The valve body is the core of the control valve, holding critical components like the valve seat and plug. It directly influences the valve’s flow control capabilities and overall durability. Valve bodies come in various configurations, including:
Globe Valves: Known for precise throttling control.
Ball Valves: Offer quick opening and closing with minimal pressure drop.
Butterfly Valves: Suitable for large flow volumes and low-pressure applications.
Gate Valves: Typically used for on/off control rather than throttling.
Selecting the appropriate valve body type depends on factors such as fluid characteristics, pressure requirements, and the need for precise flow regulation.
The valve stem connects the actuator to internal components like the plug or disc. It transmits the actuator’s motion to open or close the valve. The stem must withstand operational stresses, including torque and vibration, while maintaining a tight seal to prevent leakage.
Seals and gaskets are essential for preventing leaks at various junctions within the valve assembly. They ensure that compressed air and controlled fluids or gases do not escape, maintaining efficiency and safety. Over time, these components can degrade, requiring periodic inspection and replacement.
The valve seat and plug interact to regulate flow. The plug moves into and out of the seat, either obstructing or allowing flow. The choice of materials and the precision of the seat and plug are vital for achieving reliable sealing and minimizing wear.
Despite their robust design, pneumatic control valves are prone to certain faults that can hinder performance or even cause system failures. Recognizing these faults early on helps maintain operational efficiency and prevents costly downtime. Below are some of the most common issues encountered:
Air leaks in the supply line or valve assembly can weaken actuator performance, causing the valve to move sluggishly or not at all. Common causes include worn seals, loose fittings, and cracked air hoses.
Sticking occurs when debris, corrosion, or rust prevents the valve stem or internal components from moving freely. This can cause partial or complete loss of control, impacting the efficiency of the valve.
Actuators can fail due to excessive wear, loss of air pressure, or physical damage. This may result in the valve remaining stuck in one position, unable to respond to control signals. Regular maintenance and inspections help detect potential issues before they lead to actuator failure.
Positioners that become unresponsive or miscalibrated can cause the valve to position incorrectly, leading to inaccurate flow control. This can be due to electrical faults, air pressure fluctuations, or signal interference.
Damaged or degraded seals reduce the valve’s ability to maintain pressure, allowing air or fluid to escape. Leakage can compromise system efficiency and may also pose safety risks.
When troubleshooting pneumatic control valve issues, it is crucial to follow a structured approach to diagnose the root cause efficiently. Here are essential steps to consider:
Check past maintenance logs for recurring issues. Identifying patterns can provide insight into whether the current problem is an ongoing concern or a new development.
Begin with a comprehensive visual inspection of the valve and its associated components. Look for obvious signs of wear, corrosion, leaks, or physical damage. Observing the actuator, yoke, and bonnet closely can reveal signs of mechanical stress or failure.
Inadequate air pressure is a common cause of malfunction. Use a calibrated pressure gauge to verify that the air supply is within the required range. Inspect hoses, fittings, and connections for leaks or blockages.
Ensure the actuator is functioning properly by manually testing its movement. Check for air leaks and listen for hissing sounds that may indicate a broken seal or damaged diaphragm. Verify that the actuator is receiving the correct air pressure and control signals.
A malfunctioning positioner can lead to inaccurate valve positioning. Calibrate the positioner according to the manufacturer’s guidelines to restore precise control. Inspect for electrical faults, signal interference, and calibration errors.
Confirm that the control signals sent to the valve are accurate and consistent. Check for any discrepancies that might indicate faulty wiring or electronic interference.
Operate the valve manually to check for smooth and consistent movement. Listen for unusual noises such as grinding or knocking, which may indicate internal wear or obstructions.
If necessary, disassemble the valve to examine internal components such as the valve seat, stem, and plug. Clean any accumulated debris and assess the condition of gaskets and seals. Replace any worn or damaged parts.
Blockages or restrictions in the pipeline can impede valve operation. Clean or replace pipeline sections that show signs of clogging or corrosion.
Pneumatic control valves are fundamental to automated industrial processes, offering reliable control over fluid and gas flow. However, they can experience a range of faults that disrupt performance. Understanding the components, identifying common faults, and implementing effective troubleshooting techniques are crucial for maintaining optimal functionality. By staying proactive with maintenance and promptly addressing issues, industries can ensure continuous and efficient operation of pneumatic control systems.
