Introduction
In the world of industrial fluid control, precision, durability, and reliability are paramount. The Metal Seated Ball Control Valve stands out as a versatile and robust solution designed to meet the demanding requirements of various industries. With its advanced design, high-performance materials, and exceptional sealing capabilities, this valve is engineered to handle extreme conditions, including high temperatures, corrosive environments, and abrasive media. This article provides an in-depth look at the Metal Seated Ball Control Valve, exploring its specifications, features, advantages, and applications across diverse industries.
Product Overview

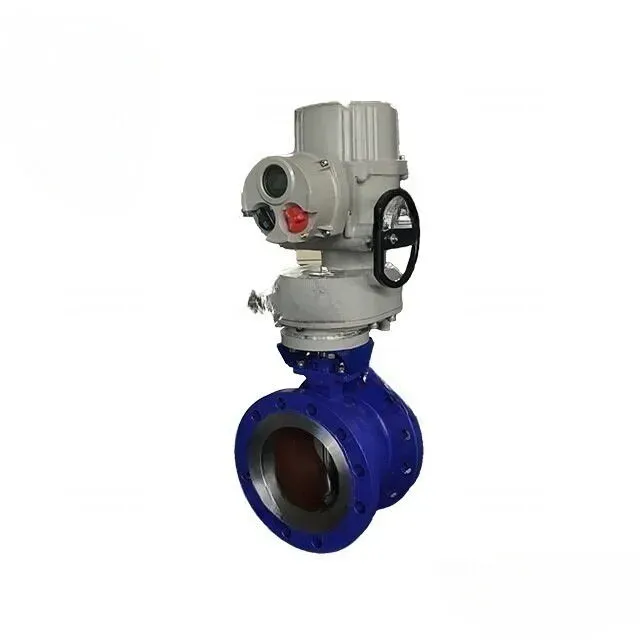

The Metal Seated Ball Control Valve is a high-performance valve designed for precise flow control in challenging industrial environments. Below are the key specifications of this valve:
Size Range: 1-10 Inch, DN25-DN250
Pressure Rating: PN10-PN63, Class 150 LB - 600 LB
Temperature Range:
Metal Seat: -29°C to +450°C
Resilient Seat: -29°C to +150°C
Seal Tightness:
Metal Seat: Class IV
Resilient Seat: Class VI
Body Material: Stainless Steel (ASTM A351 CF8, CF8M), Carbon Steel (ASTM A216 WCB), Special Alloys
Ball/Stem Material: Stainless Steel, Special Alloys
Seat Material: Stainless Steel + STL (Wafer), Stainless Steel + STL, PCTFE, PEEK (Flange)
End Connection: Wafer
Face to Face: ISA S75.04, IEC/DIN 534-3-2 (Flange)
Flange Standard: GB/T 9113.1, JB/T 79.1, HG 20592, ASME B 16.34, ISO 7005 (Other drilling available on request)
Flow Characteristic: Equal Percentage
Applications: Pulp & Paper, Water Treatment, Food & Beverage, Fine Chemical, Power Plant, Steel Industry
Key Features of the Metal Seated Ball Control Valve
The Metal Seated Ball Control Valve is packed with advanced features that make it a preferred choice for industrial applications. Here are some of its standout characteristics:
V-Notch Ball Design
The V-notch ball design provides strong cutting stress and ensures tight sealing, even in high-pressure and high-temperature environments. This design is particularly effective for handling abrasive and viscous media.
Surface Treatments
The valve is available with various surface treatments, including hard chromium plating, nitriding, and HCOF (High-Cycle Oxygen-Free) coating. These treatments enhance the valve's hardness, abrasion resistance, fatigue resistance, corrosion resistance, and high-temperature performance.
Precision-Ground Notched Ball Surface
The precision-ground notched ball surface ensures low operating torque and a tight seal, making it ideal for metal-seated segment valves. This feature enhances the valve's efficiency and longevity.
Robust Construction
The valve is constructed from high-quality materials such as stainless steel, carbon steel, and special alloys, ensuring durability and resistance to harsh operating conditions.
Versatile End Connections
The valve offers flexible end connections, including wafer and flange options, making it compatible with a wide range of piping systems.
Equal Percentage Flow Characteristic
The equal percentage flow characteristic ensures precise flow control, making the valve suitable for applications requiring accurate modulation.
Advantages of the Metal Seated Ball Control Valve
The Metal Seated Ball Control Valve offers numerous advantages that make it a reliable and efficient choice for industrial applications. Here are some of its key benefits:
Exceptional Durability
The valve's robust construction and high-quality materials ensure long-lasting performance, even in extreme conditions.
Superior Sealing Performance
The metal seat design provides Class IV seal tightness, while the resilient seat offers Class VI seal tightness, ensuring leak-free operation.
High-Temperature Resistance
With a temperature range of up to +450°C for metal seats, the valve is capable of handling high-temperature applications with ease.
Corrosion and Abrasion Resistance
The valve's surface treatments and material options enhance its resistance to corrosion and abrasion, making it suitable for handling corrosive and abrasive media.
Low Operating Torque
The precision-ground notched ball surface ensures low operating torque, reducing wear and tear on the valve and extending its service life.
Versatility
The valve's wide range of sizes, pressure ratings, and end connections makes it suitable for a variety of applications across different industries.
Ease of Maintenance
The valve's design simplifies maintenance and reduces downtime, ensuring optimal performance and cost-effectiveness.
Applications of the Metal Seated Ball Control Valve
The Metal Seated Ball Control Valve is widely used in various industries due to its versatility and reliability. Here are some of its key applications:
Pulp & Paper Industry
The valve is used in processes such as pulp digestion, bleaching, and paper coating, where it handles abrasive and corrosive media with ease.
Water Treatment
In water treatment plants, the valve is used for flow control in processes such as filtration, disinfection, and sludge handling.
Food & Beverage Industry
The valve is suitable for applications requiring hygienic and corrosion-resistant materials, such as processing, bottling, and packaging.
Fine Chemical Industry
The valve's resistance to corrosive chemicals makes it ideal for use in the production of fine chemicals, pharmaceuticals, and specialty chemicals.
Power Plants
The valve is used in power generation processes, including steam control, cooling water systems, and fuel handling.
Steel Industry
In steel manufacturing, the valve is used for flow control in processes such as cooling, descaling, and gas handling.
Conclusion
The Metal Seated Ball Control Valve is a high-performance solution designed to meet the demanding requirements of modern industrial applications. With its advanced features, exceptional durability, and superior sealing performance, this valve is a reliable choice for industries ranging from pulp and paper to power generation. Its versatility, ease of maintenance, and resistance to extreme conditions make it an indispensable component in fluid control systems.
Whether you're looking to enhance efficiency, reduce downtime, or ensure leak-free operation, the Metal Seated Ball Control Valve delivers unmatched performance and reliability. By choosing this valve, industries can achieve optimal flow control, improve operational efficiency, and maintain the highest standards of safety and quality.
In a world where precision and durability are critical, the Metal Seated Ball Control Valve stands out as a trusted partner for industrial fluid control.
