In today’s rapidly evolving industrial landscape, automation plays a pivotal role in boosting efficiency, cutting operational costs, and ensuring enhanced safety standards. Among the technologies leading this transformation are pneumatic stainless steel butterfly control valves, which exemplify how advanced engineering is being leveraged to streamline industrial processes and optimize system performance. These valves are designed to automate the control of liquids and gases within pipelines, offering industries a reliable and cost-effective solution for a broad range of applications. With their robust construction, precise control capabilities, and adherence to stringent safety standards, pneumatic butterfly valves have become indispensable components in modern industrial systems, driving automation and operational excellence.
What Are Pneumatic Stainless Steel Butterfly Control Valves?

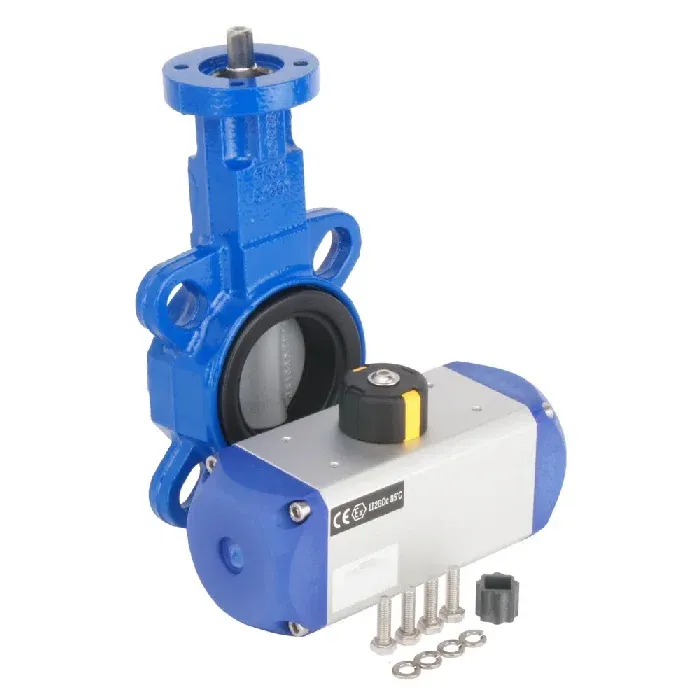

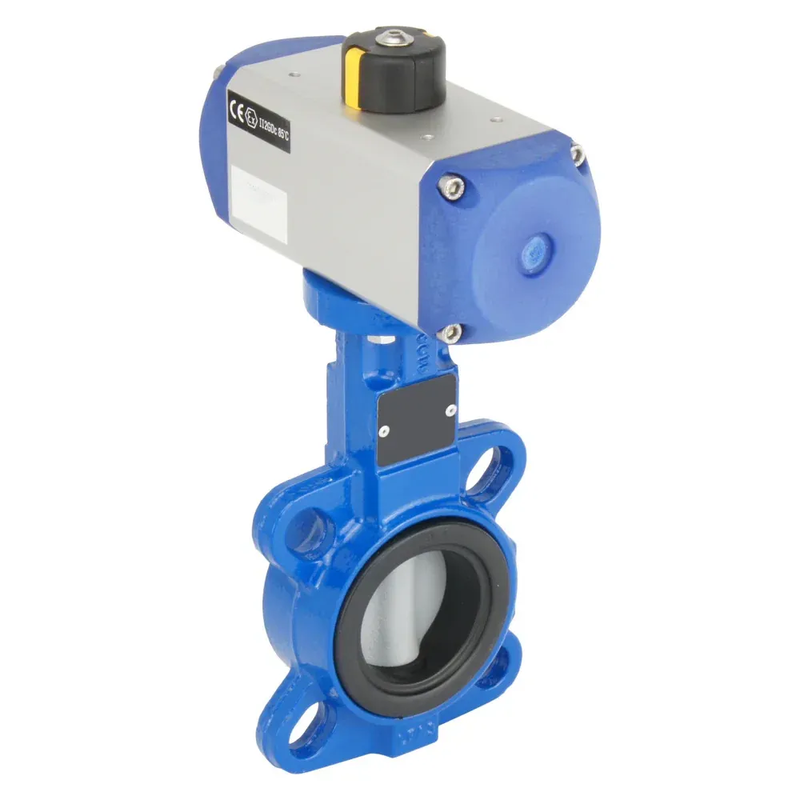

Pneumatic butterfly control valves are quarter-turn valves that regulate the flow of liquids or gases through a pipeline. The basic mechanism consists of a circular disc mounted on a rotating shaft. When actuated, the disc moves, either opening or closing the flow path, allowing for precise control of the media. In the case of pneumatic butterfly valves, the valve operation is driven by a pneumatic actuator, which automates the process and removes the need for manual intervention, improving system efficiency and safety.
These valves are typically constructed from high-quality stainless steel, which is renowned for its durability and resistance to corrosion. Stainless steel ensures that the valve can withstand harsh industrial environments without compromising performance. In this particular configuration, the pneumatic actuator operates smoothly and efficiently, delivering reliable performance in applications where accuracy and durability are essential.
Key Features and Specifications
Valve Design and Construction
Body Material: The valve body is crafted from stainless steel, providing excellent corrosion resistance and ensuring longevity even in aggressive environments.
Disc Material: The disc is made from stainless steel, ensuring smooth operation, minimal wear, and a long service life.
Seal Material: Equipped with an EPDM (Ethylene Propylene Diene Monomer) seal, this valve offers excellent resistance to wear, heat, and chemical degradation, making it suitable for a wide range of applications.
Connection Type: This valve is designed with a wafer-style connection, allowing for easy installation and compatibility with standard piping systems.
Temperature Range: The valve can handle media temperatures ranging from -10°C to 110°C, making it versatile in varying environments.
Maximum Pressure: The valve is rated to handle media pressures up to 16 bar, making it suitable for high-pressure applications.
Pneumatic Actuator
Torque Output: The actuator generates 49.6 Nm of torque at 8 bar, ensuring smooth and reliable operation, even under high-pressure conditions.
Control Pressure Range: The actuator operates efficiently within a control pressure window of 6 to 10 bar, offering flexibility in system configuration.
Actuator Type: This valve uses a double-acting actuator with an aluminum rack-and-pinion mechanism, providing smooth and precise rotational operation.
Housing Material: The actuator housing is made from anodized aluminum, with an acetal resin cover, ensuring durability while maintaining a lightweight structure.
Mounting Compatibility: It is equipped with an ISO 5211 F05 flange (11 mm), which allows seamless integration with the butterfly valve and standard mounting options.
Air Supply Ports: The valve is equipped with G1/8 ports for air supply and return, ensuring compatibility with standard pneumatic systems.
Automation and Control
Namur Solenoid Valve Compatibility: This valve is designed to directly mount a 1/4" Namur solenoid valve, simplifying the installation process and reducing the need for additional fittings or tubing.
Position Indicator: The valve includes a mechanical indicator on top to visually confirm its position (open or closed), offering users a clear indication of the valve’s status.
Limit Switch Box Compatibility: The valve can be equipped with a limit switch box that is compliant with VDI/VDE 3845 standards, allowing for advanced position control and monitoring.
Safety and Certification
ATEX Certification: The valve is ATEX certified (II 2G Ex d C), making it suitable for use in potentially explosive environments. This certification ensures compliance with European safety standards for equipment used in hazardous areas, such as chemical processing or oil and gas operations.
Advantages of Pneumatic Stainless Steel Butterfly Control Valves
1. Enhanced Automation
Pneumatic actuators enable fully automated operation of butterfly valves, reducing the need for manual intervention. This not only improves operational efficiency but also enhances safety by minimizing the risk of human error. Automated systems provide faster and more accurate control, enabling precise adjustments in real-time.
2. Cost-Effectiveness
While pneumatic actuators generally have a lower initial cost compared to electric actuators, they are ideal for applications where an immediate return on investment is critical. Additionally, their robust design and durable materials ensure that the valves provide a long service life, which minimizes maintenance costs over time. Their reliable operation also reduces downtime and the associated costs.
3. Fast Operation
Pneumatic actuators are known for their rapid opening and closing times, making them particularly suitable for applications requiring quick response times. This ability to react quickly makes pneumatic butterfly valves ideal for industries where fast system adjustments are necessary, such as in water treatment or chemical processing.
4. Precise Control
Double-acting actuators allow for more precise control over valve operation compared to single-acting actuators. This enhanced precision makes pneumatic butterfly valves a valuable tool for managing the flow of various media with high accuracy, from liquids in food and beverage production to gases in HVAC systems.
5. Versatility
These valves are versatile and adaptable to a wide range of applications. They can regulate the flow of both liquids and gases, which makes them suitable for diverse industrial needs. Common industries that benefit from pneumatic stainless steel butterfly valves include water treatment, chemical processing, food and beverage production, HVAC systems, and oil and gas operations.
6. Safety in Hazardous Environments
With ATEX certification, these valves meet the stringent safety standards required for operation in hazardous environments. This feature is critical in industries such as oil and gas or chemical processing, where explosive atmospheres may be present. The ATEX certification ensures that these valves can be safely used in areas that require the highest levels of safety and reliability.
Limitations and Considerations
1. Compressed Air Requirements
Pneumatic actuators require a reliable compressed air system to function, which may not always be available in every facility. Organizations that do not already have a compressed air supply system may need to invest in one, which can increase initial setup costs.
2. Energy Consumption
While pneumatic actuators typically have a lower initial cost than electric actuators, they can consume more energy over the long term. This may increase operational costs, particularly in facilities that require a large number of pneumatic actuators for their operations.
3. Installation Complexity
Although the integration of a Namur solenoid valve reduces installation complexity, the requirement for a compressed air system and associated components may still introduce some challenges. Facilities that do not already use pneumatic systems may face higher installation costs and time.
Applications of Pneumatic Stainless Steel Butterfly Control Valves
Pneumatic butterfly valves are employed across many industries due to their reliability, versatility, and cost-effectiveness. Some of the key sectors that benefit from these valves include:
Water and Wastewater Treatment
Pneumatic stainless steel butterfly valves are used to regulate the flow of water, chemicals, and other media in treatment plants, ensuring optimal system performance and regulatory compliance.
Chemical Processing
In chemical processing, these valves manage the flow of corrosive or hazardous chemicals, ensuring that operations run safely and efficiently in demanding environments.
Food and Beverage Production
These valves play a crucial role in ensuring precise control of media flow in hygienic and sanitary conditions, which is essential in food and beverage manufacturing processes.
HVAC Systems
In heating, ventilation, and air conditioning systems, pneumatic butterfly valves are used to manage the flow of air, water, or refrigerants, contributing to optimal climate control and energy efficiency.
Oil and Gas
Pneumatic valves are integral in the oil and gas industry for controlling the flow of oil, gas, and other hydrocarbons in upstream and downstream operations, where both safety and efficiency are paramount.
Conclusion
Pneumatic stainless steel butterfly control valves represent a critical advancement in automation and efficiency for modern industrial systems. Their robust construction, precise control capabilities, and compliance with safety standards make them a reliable and cost-effective solution across various industries. While they require a compressed air system and may have higher long-term energy consumption compared to electric actuators, their lower initial cost and rapid operation make them an attractive choice for industries focused on optimizing performance and reducing operational costs.
By investing in pneumatic butterfly valves, businesses can streamline operations, enhance safety, and ensure the efficient regulation of media flow in a variety of applications. Whether employed in water treatment, chemical processing, HVAC systems, or oil and gas industries, these valves are a testament to the power of automation in improving industrial systems.
For more information or to discuss your specific requirements, please contact our team. We are here to help you find the perfect solution for your application.
