T-Port vs. L-Port 3-Way Ball Control Valve
On this page
In industrial applications, ball valves are crucial for fluid control, allowing for precise regulation of flow through a system. Among the different types of ball valves, 3-way ball control valves stand out for their ability to direct fluid to multiple pathways. These valves come in two primary configurations: T-port and L-port. Understanding the differences between these two designs is essential for selecting the best option for your specific application. This article will explore the key features, differences, and applications of T-port and L-port 3-way ball control valves, helping you make an informed decision.

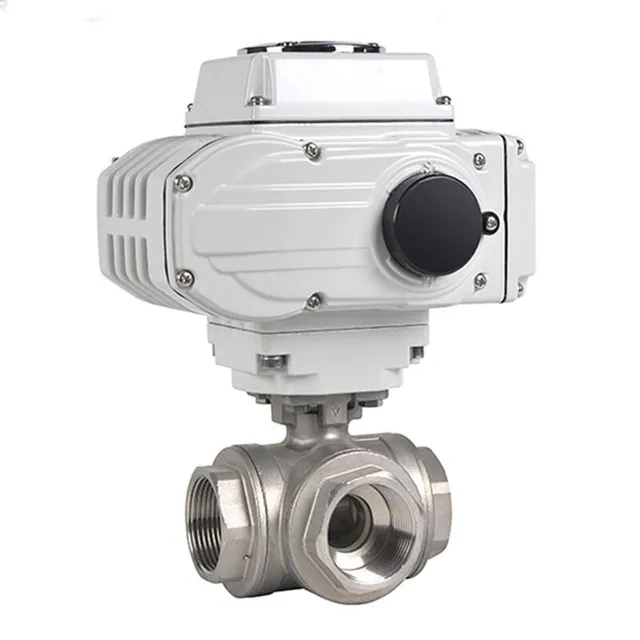

A T-port 3-way ball control valve is designed with a T-shaped ball passage inside the valve body. This configuration allows fluid to flow through multiple pathways, enabling more versatile fluid direction in complex piping systems. The T-port design is particularly useful for diverting or mixing fluids and is often used in industries like chemical processing, oil and gas, and water treatment.
The T-port ball valve can connect three different ports and manage flow between them in a variety of ways. The ball inside the valve can rotate to allow or block the flow in different directions, offering more control over fluid distribution. The T-port configuration allows for flexible fluid routing, with the ability to divert, mix, or isolate flow between multiple ports. This makes it ideal for applications requiring complex flow patterns. One of the key features of the T-port valve is its ability to divert fluid between different outlets or mix fluids from different inlets. This is particularly useful in process systems where different fluids need to be combined or separated.
Multiple Flow Configurations
T-port ball valves offer various flow configurations, including three-way mixing, three-way diverting, and even full shutoff capabilities, depending on the position of the ball. These valves are designed to handle a wide range of fluids, including corrosive and abrasive materials, making them highly durable and suitable for harsh industrial environments. The L-port 3-way ball control valve features an L-shaped passage within the ball, providing a different flow configuration compared to the T-port valve. Unlike the T-port valve, the L-port valve is mainly used for diverting fluid flow between two of the three available ports, either from one inlet to two different outlets or vice versa.
This valve type is ideal for applications where a simple redirection of flow is required without the need for mixing fluids. It is commonly used in HVAC systems, water distribution, and irrigation systems. The L-port configuration allows for fluid flow to be diverted between two of the three available ports. It does not offer mixing capabilities like the T-port valve but provides reliable flow switching between different outlets or inlets. The L-port valve is known for its straightforward operation, making it easy to control and ideal for applications where only two flow directions are needed. Since L-port valves are typically less complex than T-port valves, they are often more affordable and require less maintenance, making them a cost-effective choice for systems with simpler flow control needs. Like the T-port valve, L-port 3-way ball control valves are designed to withstand demanding environments and a wide range of fluid types, ensuring long service life. The primary difference between T-port and L-port 3-way ball control valves lies in their internal passage configuration and how they direct fluid flow. T-port valves can mix or divert fluid between three ports, offering more flexibility in fluid control. L-port valves, on the other hand, are limited to switching flow between two of the three available ports and do not provide mixing capabilities. T-port valves are more suitable for complex applications that require fluid mixing or diversion, while L-port valves are better suited for simpler systems where only redirection of fluid between two ports is needed. Due to their versatility, T-port valves are typically more expensive than L-port valves. L-port valves, being simpler in design, are often more cost-effective and require less maintenance. The T-port valve offers multiple flow control options, allowing for greater customization in fluid management. In contrast, L-port valves provide more basic control, making them ideal for straightforward applications. When deciding between a T-port and L-port 3-way ball control valve, consider the specific needs of your application: If your system requires diverting or mixing fluids, or managing multiple flow directions, the T-port valve is the better option due to its versatility. For applications where you only need to switch flow between two paths, the L-port valve provides a simpler, more cost-effective solution. If cost is a concern and your application does not require complex flow control, the L-port valve may be the more economical choice. T-port valves, while offering more features, can be more expensive and may require more maintenance in certain systems. In industries such as chemical processing, where fluid mixing and diversion are common, the T-port valve is typically the preferred choice. For systems like HVAC or irrigation, where simple flow redirection is sufficient, the L-port valve is often more appropriate. Choosing the right 3-way ball control valve is crucial for ensuring efficient fluid management in your system. The T-port valve offers greater flexibility for complex applications, while the L-port valve provides a cost-effective solution for simpler systems. By understanding the differences between these two valve types, you can select the ideal option to meet your specific application needs and ensure optimal performance in your system.
