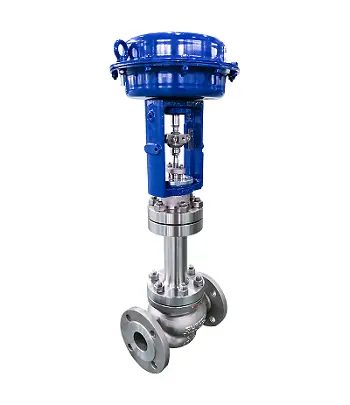

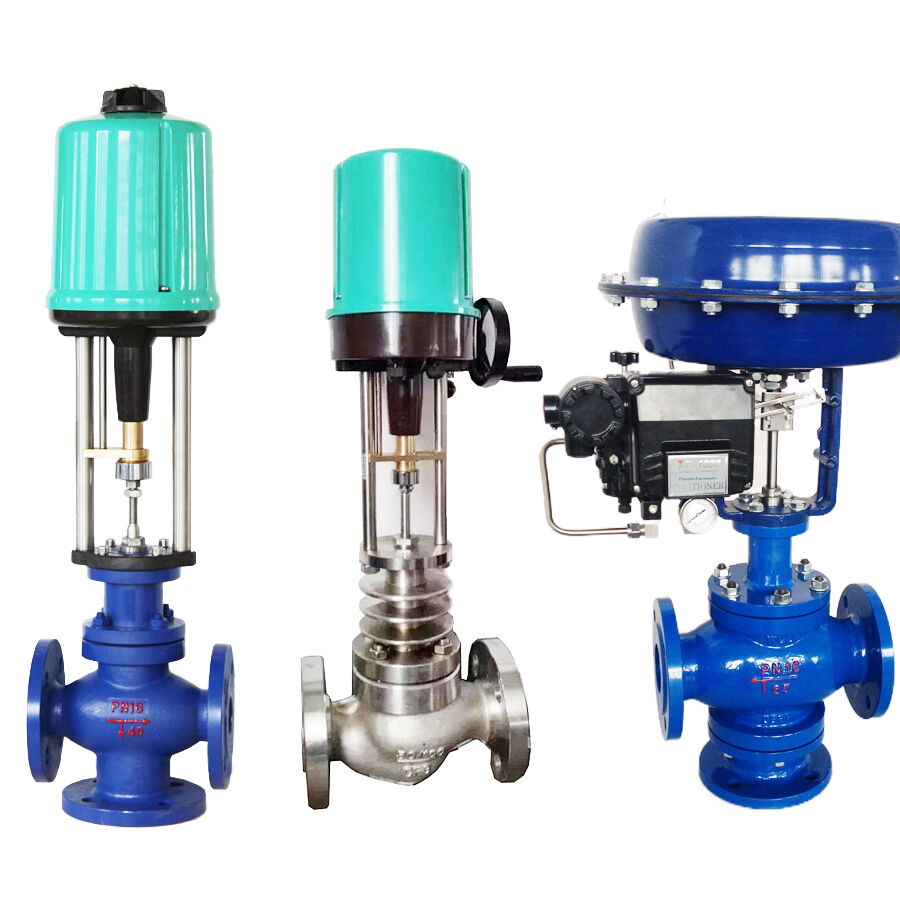

In the ever-evolving world of fluid control systems, the single-seated globe control valve remains one of the most widely used and trusted components across a variety of industries. Known for its compact structure, precise flow regulation capabilities, and effective sealing performance, this type of valve plays a critical role in ensuring stability and efficiency in process control systems.
One of its standout features is its interchangeable trim, allowing the valve to adapt to different process conditions simply by replacing internal components. This flexibility makes the single-seat globe control valve an excellent choice for handling a wide range of media—from liquids and steam to gases—within industrial settings that demand both tight shutoff and fine control.
The single-seated globe control valve is commonly deployed in applications where tight shutoff, precise flow control, and adaptability are essential. Its design makes it ideal for:
Steam control systems
Chemical processing
Oil and gas operations
Power plants
Pharmaceutical manufacturing
Water treatment facilities
In these settings, the valve can be fine-tuned to control maximum flow rates by varying the plug and seat ring sizes, and to define flow characteristics through adjustments to the plug contour. This versatility allows for optimization of pressure, flow, and temperature in both high and low-pressure systems.
At the heart of the single-seated globe valve's appeal is its straightforward structure. Among various control valve designs, single-seated valves—such as angle-style valves—feature a simple trim configuration, making them easy to install, operate, and maintain.
The valve operates by a linear motion mechanism that moves a plug into or out of the seat, thus controlling the flow of media through the system. While this setup ensures tight shutoff, especially in low-flow applications, it also comes with a trade-off. Unlike balanced trim valves, single-seated valves experience higher unbalanced forces due to the pressure acting on the entire area of the plug. This limits the allowable pressure drop across the valve, particularly in high-pressure applications.
Nevertheless, for medium- to low-pressure systems where tight shutoff and controllability are crucial, the single-seat configuration is a highly effective solution.
Most single-seated globe valves are paired with pneumatic actuators, which use compressed air as their primary power source. Pneumatic control systems are preferred in many industries due to their:
Fast response times
Fail-safe operation
High level of safety
Ease of integration with automation systems
In a typical pneumatic globe valve system, the actuator receives signals from a valve positioner, which interprets the control input from a Distributed Control System (DCS) or other industrial automation systems. This signal directs the actuator to adjust the valve stem, thereby modulating flow according to process needs.
To enhance functionality and reliability, additional components such as solenoid valves, retaining valves, air tanks, air filters, and converters are often incorporated. These accessories enable the valve to manage various process variables, including flow rate, pressure, temperature, and liquid level.
The inherent safety of pneumatic valves lies in their reliance on air rather than electricity. In environments where explosive gases or vapors may be present, pneumatic systems offer a critical advantage by eliminating the risk of ignition without the need for costly explosion-proof components.
The enduring popularity of single-seated globe control valves can be attributed to several key benefits:
Due to the single plug design and direct seating, this valve offers excellent sealing capabilities, making it ideal for applications that require minimal leakage.
By modifying the trim, engineers can achieve fine-tuned control over flow characteristics, including equal percentage, linear, or quick-opening flow profiles.
With fewer internal components compared to balanced or double-seated valves, the single-seat valve is easier to disassemble, inspect, and service, reducing downtime and maintenance costs.
The valve’s small footprint allows for installation in space-constrained environments while still delivering robust control performance.
The modular nature of the valve allows operators to switch out internal trims without replacing the entire valve body, making it adaptable to evolving process conditions.
While single-seated globe control valves offer many advantages, it’s important to recognize their limitations, especially when designing systems that operate under high differential pressure.
Because the pressure drop acts across the entire area of the plug, the resulting unbalanced force can be substantial. This not only affects control stability but may also place excessive stress on the actuator, requiring larger and more powerful actuation systems.

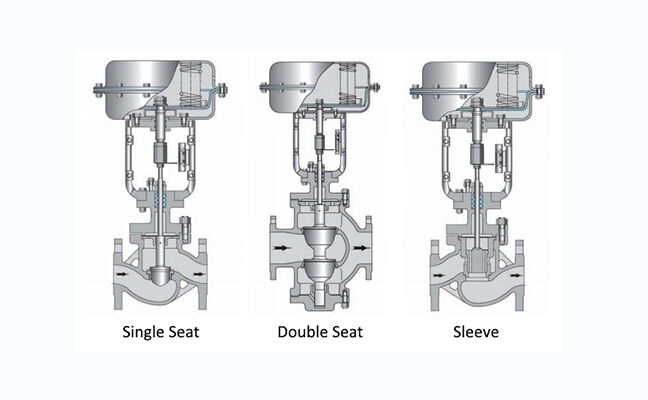

To mitigate this, in scenarios involving higher pressure drops, engineers may opt for balanced plug designs, such as double-seated valves or pressure-balanced trims, to distribute forces more evenly and reduce actuator load.
Single-seated globe control valves exhibit high performance across various media, including:
Clean liquids: Ideal for applications where purity and leak-tightness are essential.
Gases: With the correct trim and sealing materials, gases can be controlled effectively and safely.
Steam: The tight shutoff performance and high-temperature tolerance make them suitable for steam applications, especially in power plants and heating systems.
Corrosive fluids: With appropriate material selections (e.g., stainless steel, Hastelloy), the valve can resist chemical degradation.
Modern industry demands seamless integration between mechanical components and digital control systems. Single-seated globe valves are designed to support this trend through compatibility with:
Smart positioners for diagnostics and real-time feedback
Digital control interfaces such as HART, Foundation Fieldbus, and Profibus
Remote monitoring systems to enhance plant-wide visibility
These features enable operators to remotely monitor and adjust valve performance, reduce response times, and ensure more consistent process outputs.
A chemical plant handling heat-sensitive liquids needed to install a control valve capable of precise temperature and flow regulation. The choice was a single-seated globe control valve with a stainless steel body and a special plug contour designed for equal percentage flow characteristics. By integrating the valve with a pneumatic actuator and a digital positioner, the plant was able to maintain stable operation under variable flow conditions, reduce energy consumption, and minimize product waste.
This case demonstrates how tailored valve selection—especially in terms of trim configuration—can significantly improve process outcomes in demanding environments.
The single-seated globe control valve continues to be a vital component in industrial fluid control systems. Its reliable shutoff capabilities, simple design, and high degree of control make it a preferred choice for a wide range of applications. From steam to chemicals, and from low-pressure to moderately high-pressure services, this valve delivers performance that engineers can depend on.
As automation, safety, and efficiency become more critical across industries, the role of single-seated globe valves—especially when integrated with smart pneumatics—will only become more prominent.
Whether you're designing a new process system or upgrading an existing one, the single-seated globe control valve offers a balance of precision, safety, and adaptability that is hard to beat.
