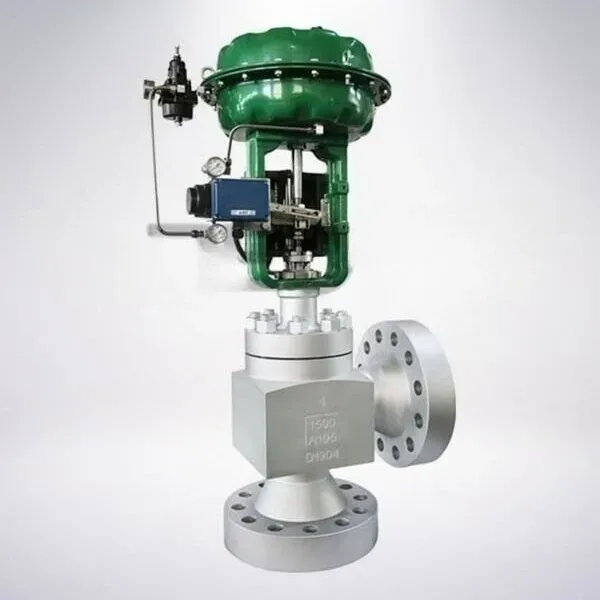

What is High-Pressure Labyrinth Control Valve?

In the world of industrial applications, the High-Pressure Labyrinth Control Valve stands out as a premium solution designed for the most challenging environments. This valve is engineered to excel in high-pressure scenarios, where precision and durability are critical. Its unique labyrinth design is specifically tailored to efficiently manage fluid flow, significantly reducing turbulence and minimizing wear and tear.

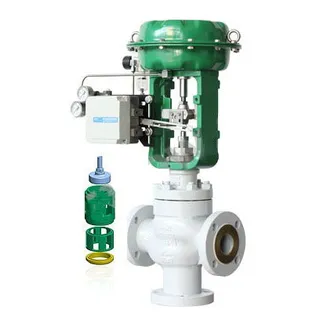

Advanced Labyrinth Cage and Balanced Plug Design

The High-Pressure Labyrinth Control Valve features a balanced labyrinth cage and plug design, setting it apart from conventional valves. The labyrinth cage is composed of cylindrical discs with numerous coaxially distributed labyrinths. These labyrinths are meticulously designed according to the specific technological parameters of the media being controlled. By incorporating different labyrinth specifications and layering them appropriately, the cage effectively divides the entire flow channel into several tiny, circuitous or step flow channels. This intricate design forces the fluid to continuously change its flow direction and area, gradually reducing fluid pressure. This process helps prevent flash evaporation and cavitation, significantly prolonging the service life of the valve trim.

The balanced cage plug, another key component of this valve, ensures a very low leakage rate. The close fit between the plug and seat provides a tight seal, making the trim suitable for conditions where blocked flow and cavitation are likely to occur.

Durable Construction for Extreme Conditions

Constructed from high-grade materials, the High-Pressure Labyrinth Control Valve is built to withstand extreme temperature variations and resist corrosion. This robust construction ensures a long operational life, even in the most demanding industrial environments. The valve's tight sealing mechanism prevents any unwanted leakage, guaranteeing reliable operation and exceptional control over fluid flow.

Superior Flow Control Capabilities

One of the most impressive features of the High-Pressure Labyrinth Control Valve is its excellent flow control capabilities. Whether regulating high-pressure fluid flow or maintaining precise control in lower pressure applications, this valve delivers superior performance. Its advanced design allows for precise adjustments, ensuring optimal flow control in a variety of settings.

Easy Installation and Maintenance

Ease of installation and maintenance is another highlight of this valve. The design allows for straightforward installation, reducing downtime and operational disruptions. Maintenance is equally efficient, making the High-Pressure Labyrinth Control Valve a cost-effective solution for high-pressure control needs.

Exceeding Industry Standards

The sturdy construction and advanced design of the High-Pressure Labyrinth Control Valve ensure that it not only meets but exceeds industry standards. Its reliable, high-performing characteristics make it an invaluable component in any industrial setup where high-pressure fluid control is required.

Conclusion

The High-Pressure Labyrinth Control Valve is a robust and reliable solution for managing fluid flow in high-pressure environments. Its advanced labyrinth cage and balanced plug design effectively reduce turbulence and wear, while its durable construction and tight sealing mechanism ensure long-term, reliable operation. With superior flow control capabilities and ease of installation and maintenance, this valve offers a cost-effective and high-performing solution that exceeds industry standards. For industries requiring precise and durable high-pressure control, the High-Pressure Labyrinth Control Valve is an excellent choice.
