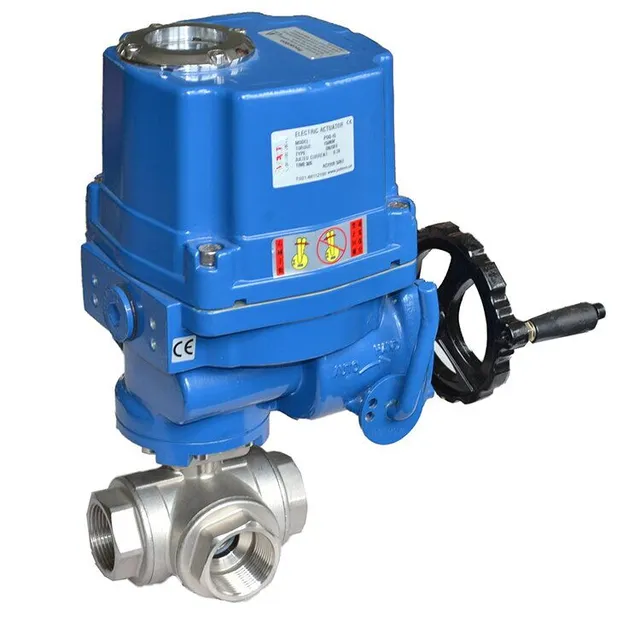

Comprehensive Guide to Electric Ball Control Valve Installation

Electric ball control valves are essential components in various industrial, commercial, and residential fluid control systems. Proper installation ensures optimal performance, longevity, and safety. This guide provides a detailed, step-by-step approach to installing an electric ball control valve, covering pre-installation checks, wiring procedures, and final testing.

Whether you are a professional technician, engineer, or a DIY enthusiast, following these guidelines will help you avoid common installation errors and ensure seamless valve operation.

Before proceeding with the installation, several critical steps must be followed to ensure safety and efficiency.

Carefully read the manufacturer’s safety manual to understand handling procedures, electrical hazards, and operational precautions.

Ensure all personnel involved in the installation are aware of safety protocols.

Check the actuator label for key specifications, including:

Pressure rating (maximum allowable pressure)

Temperature range (minimum and maximum operating temperatures)

Media compatibility (ensuring the valve material is suitable for the fluid being controlled)

Refer to the manufacturer’s documentation or markings guide if unsure about label information.

Choose a dry, sheltered location to protect electrical components from moisture and environmental damage.

Ensure easy access for future maintenance, troubleshooting, or replacement.

Avoid areas with excessive vibration or mechanical stress.

Shut off the fluid supply and release any residual pressure to prevent accidental discharge.

Allow the system to cool if handling high-temperature media to avoid burns or valve damage.

Check pipes for dirt, debris, or corrosion that could obstruct valve operation.

Use appropriate cleaning methods (flushing, brushing, or compressed air) to ensure a clean flow path.

If the fluid contains particulates, install a filter upstream to prevent clogging or damage to the valve seat.

Regularly clean or replace the filter to maintain optimal performance.

Tools needed:

Adjustable wrench or set of wrenches

Pipe thread sealant (for threaded connections)

Welding equipment (for welded installations)

Wire strippers and screwdrivers (for electrical connections)

Fittings required:

Threaded, flanged, or welded adapters (as per system requirements)

Proper wiring is crucial for the electric actuator to function correctly. Incorrect connections can lead to malfunction, electrical hazards, or valve failure. Follow these steps carefully.

Locate the manufacturer’s wiring diagram (usually found in the user manual or on the actuator housing).

Ensure the diagram matches the specific actuator model (AC/DC voltage, 2-wire or 3-wire configuration).

Example Wiring Configurations (JP Fluid Control Valves):

Strip ~6-8mm of insulation from wire ends to ensure proper contact with terminals.

Use ferrules or crimp connectors for a secure connection (recommended for industrial applications).

For AC actuators:

Connect Live (L) to the power supply’s hot wire.

Connect Neutral (N) to the return line.

Attach Ground (G) to the earth ground for safety.

For DC actuators:

Connect Positive (+) and Negative (-) terminals accordingly.

Manual Control: If using a switch, connect wires to NO (Normally Open) and COM (Common) terminals.

Automated Control (PLC/DCS):

Connect the control signal (e.g., 4-20mA, 0-10V) to the designated input terminals.

Verify polarity if applicable.

Tighten terminal screws to prevent loose connections (vibration can cause disconnections).

Use cable glands to strain-relief wires entering the actuator housing.

Power on the system and send a control signal.

Observe the valve’s movement:

Clockwise rotation = Closing

Counter-clockwise rotation = Opening

If the valve does not respond:

Check power supply.

Verify control signal wiring.

Inspect for mechanical obstructions.

Ensure no exposed wires or damaged insulation.

Confirm the actuator housing is sealed (IP65/IP67 rating for waterproofing).

Check for overheating after initial operation.

To maximize valve lifespan and performance, follow these additional recommendations:

Avoid misalignment stress by ensuring pipes are correctly positioned before tightening.

Use flexible couplings if pipe movement is expected.

Excessive torque can damage threaded or flanged connections.

Follow manufacturer-recommended tightening sequences.

Lubricate moving parts (if specified).

Inspect electrical connections annually.

Test valve response time to detect wear early.

Installing an electric ball control valve requires careful planning, correct wiring, and thorough testing. By following this guide, you can ensure safe, efficient, and long-lasting valve operation.

For further assistance, consult the manufacturer’s manual or contact a qualified technician. Proper installation today prevents costly repairs tomorrow.
