Control valves are indispensable components in various industrial systems, designed to regulate critical parameters such as pressure, temperature, and flow rate. These valves play a pivotal role in ensuring that systems operate efficiently, precisely, and reliably. By measuring and adjusting the pressure or flow on either side of a valve, control valves enable fine-tuning of processes, whether manually or automatically. This article delves into the working principle of control valves, explaining their operation, components, and applications in detail.
Control valves are devices that regulate the flow of fluids—such as gases, liquids, or steam—within a pipeline or system. They achieve this by adjusting the size of the flow passage, which in turn controls the rate of fluid movement. The regulation is typically achieved through the use of actuators, which respond to signals from a control system. By maintaining desired process conditions, control valves ensure optimal performance, safety, and efficiency in industrial applications.
A control valve operates by modulating the flow of fluid in a pipeline to achieve specific process conditions, such as maintaining a set flow rate, pressure, or temperature. This is accomplished through a combination of sensors, controllers, and actuators that work in harmony to monitor and adjust the system. Below is a step-by-step breakdown of how a control valve functions:
The process begins with the installation of sensors along the pipeline. These sensors are responsible for measuring key process variables, such as flow rate, pressure, and temperature. For example, in a high-pressure steam system, sensors continuously monitor the steam flow and pressure to ensure they remain within specified limits. The data collected by these sensors is transmitted to the control system for analysis.
The control system, which may include a Distributed Control System (DCS) or a Programmable Logic Controller (PLC), receives the sensor data and compares it to predefined set points. These set points are established by the system operator or programmer and represent the desired process conditions. If the sensor data deviates from the set points—for instance, if the pressure is lower than required—the control system calculates the necessary corrective action.
Once a deviation is detected, the control system generates a signal to adjust the control valve. This signal can be transmitted manually, pneumatically, electrically, or hydraulically, depending on the type of actuator and the specific application.
Manual Signals: In basic or low-priority systems, an operator may manually adjust the valve by turning a handwheel.

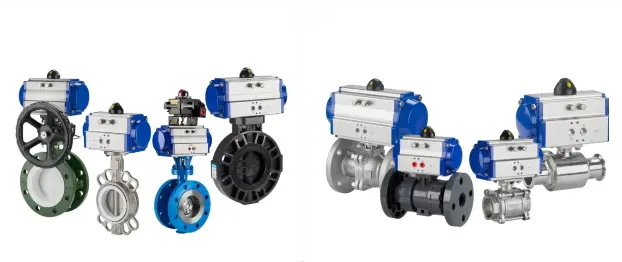

Pneumatic Signals: Commonly used in industrial settings, pneumatic actuators rely on compressed air to operate. They are favored for their durability and ability to withstand harsh conditions.
Electric Signals: Modern systems often use electric actuators for their precision and ease of automation. These actuators receive electronic signals from the control system to adjust the valve position.
Hydraulic Signals: Hydraulic actuators are ideal for high-force applications, such as operating large valves in pipelines. They use hydraulic fluid to generate the necessary force for valve adjustment.
The actuator converts the control signal into mechanical motion, which alters the position of the valve stem. This movement changes the size of the flow passage within the valve:
If the system requires a reduced flow rate, the actuator turns the valve stem to narrow the flow passage.
If an increased flow rate is needed, the actuator opens the valve wider to allow more fluid to pass through.
For example, in a liquid pipeline, reducing the valve opening from 50% to 30% will decrease the flow rate, enabling precise control over the process.
One of the most critical aspects of control valve operation is the feedback loop. After the valve position is adjusted, the control system continuously monitors the new process variables to ensure they align with the set points. If further adjustments are needed, the control system sends additional signals to the actuator to fine-tune the valve position. This dynamic control mechanism ensures that the process conditions remain stable and within acceptable error limits.
Control valves come in various designs, each suited to specific applications and operating conditions. Some of the most common types include:

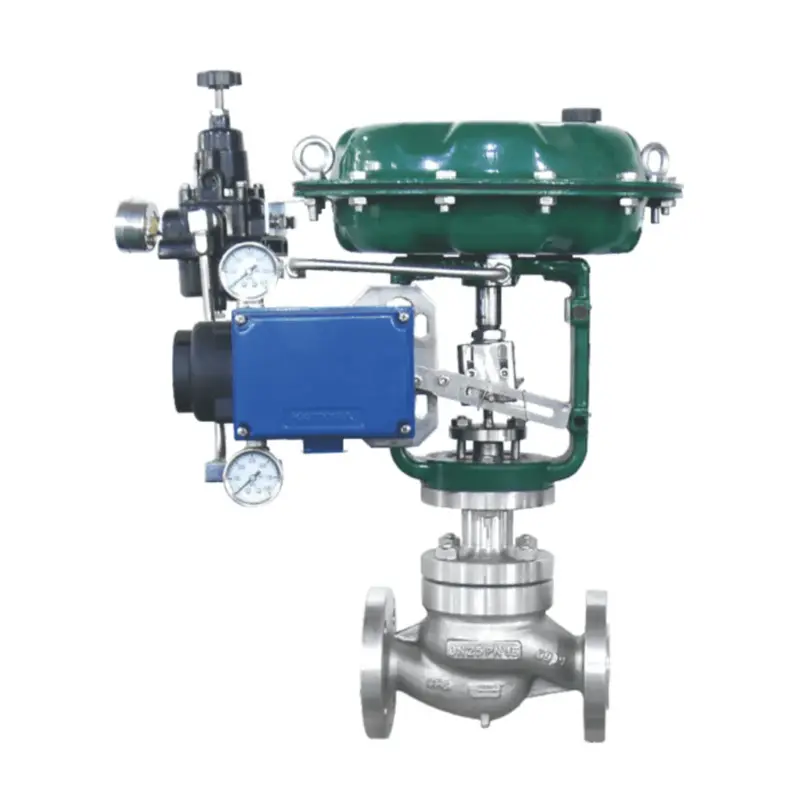

Known for their precise flow control, globe valves are widely used in applications requiring frequent adjustments.
These valves offer quick shut-off capabilities and are ideal for on/off control in high-pressure systems.
With their compact design, butterfly valves are suitable for large-volume flow control in low-pressure systems.
These valves are used in applications involving corrosive or abrasive fluids, as the diaphragm isolates the fluid from the valve components.
Plug valves are commonly used in systems requiring tight shut-off and moderate flow control.
Control valves are utilized across a wide range of industries, including:
Oil and Gas: Regulating the flow of crude oil, natural gas, and refined products in pipelines and refineries.
Power Generation: Controlling steam flow in turbines and managing cooling water systems in power plants.
Chemical Processing: Maintaining precise temperatures and pressures in chemical reactors and distillation columns.
Water Treatment: Adjusting flow rates in filtration systems and managing water distribution networks.
Pharmaceuticals: Ensuring accurate dosing and mixing of ingredients in drug manufacturing processes.
Precision: Control valves enable accurate regulation of process variables, ensuring optimal system performance.
Efficiency: By maintaining desired conditions, control valves reduce energy consumption and minimize waste.
Reliability: Advanced control systems and feedback mechanisms ensure consistent operation and reduce the risk of system failures.
Versatility: Control valves can be customized to suit a wide range of applications and operating conditions.
While control valves offer numerous benefits, their operation and maintenance come with certain challenges:
These phenomena occur when the pressure drop across the valve causes the fluid to vaporize, leading to potential damage to the valve components.
Harsh operating conditions, such as high temperatures or corrosive fluids, can degrade valve materials over time.
Malfunctions in the actuator can disrupt valve operation, necessitating regular maintenance and inspection.
Advanced control systems require skilled personnel for installation, calibration, and troubleshooting.
Control valves are essential components in modern industrial systems, enabling precise regulation of pressure, temperature, and flow rate. By leveraging sensors, control systems, and actuators, these valves ensure that processes operate efficiently and reliably. Understanding the working principle of control valves is crucial for selecting the right valve for a given application and maintaining optimal system performance. As industries continue to evolve, advancements in control valve technology will further enhance their capabilities, paving the way for smarter, more efficient systems.
Whether in oil and gas, power generation, or water treatment, control valves play a vital role in maintaining process stability and achieving operational excellence. By investing in high-quality control valves and adhering to best practices in their use and maintenance, industries can unlock significant benefits in terms of efficiency, reliability, and cost savings.
