Introduction

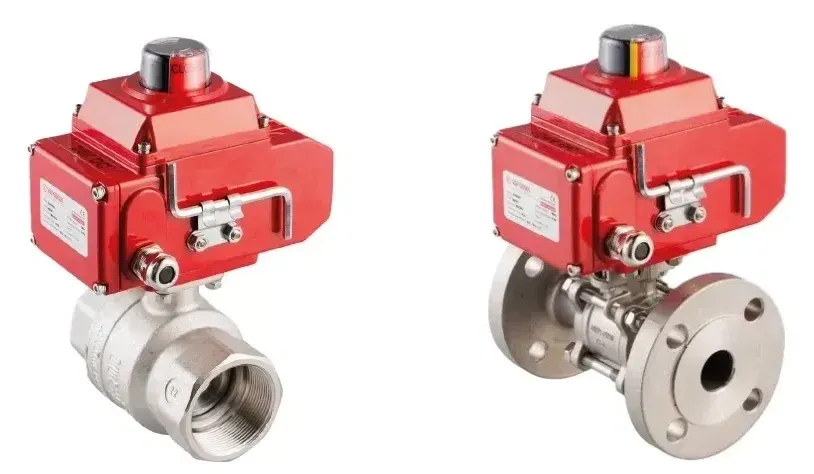

Electric ball valves, also known as motorized ball valves, are essential components in modern fluid control systems. These valves regulate the flow of liquids or gases by using a rotating ball with a bore, which is controlled by an electric actuator. The actuator connects directly to the valve stem, enabling a quarter-turn operation to open or close the valve. Electric ball valves are widely used due to their simplicity, reliability, durability, and versatility across various industries.
These valves are particularly valuable in automated and remote-control applications, making them a popular choice for systems such as water supply, heating units, and industrial processes. Electric ball valves can be configured for on/off control (2-way), 3-point control, or modulated flow, depending on the application requirements. The actuator and valve are typically mounted together using a standardized flange that adheres to ISO 5211, allowing for easy replacement or interchangeability of components.
In this article, we’ll explore the functionality, types, applications, and maintenance of electric ball valves, providing a comprehensive guide to help you understand and optimize their use in your systems.
How Electric Ball Valves Work
Electric ball valves consist of two main components: the electric actuator and the ball valve. The actuator, often a servo motor, provides the rotational force needed to turn the valve stem, which in turn rotates the ball inside the valve body. The ball has a bore through its center, and when the bore aligns with the flow path, the valve opens. A 90-degree rotation of the ball closes the valve by positioning the bore perpendicular to the flow path.
This quarter-turn operation makes electric ball valves highly efficient and quick to respond. The actuator can be controlled remotely or integrated into automated systems, allowing for precise flow control without manual intervention. Electric ball valves are available in various sizes and configurations to suit different applications, from small residential systems to large industrial processes.
Types of Electric Ball Valves
Electric ball valves can be categorized based on their functionality and the type of actuator used:
On/Off (2-Way) Valves
These valves are designed for simple open/close operations. They are commonly used in applications where flow needs to be completely stopped or allowed, such as in water supply systems or heating units.
3-Way Valves

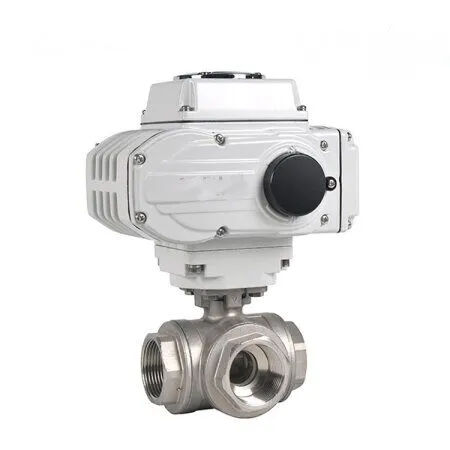

3-way electric ball valves have three ports and are used to divert or mix flows. They are ideal for applications requiring flow direction control, such as in HVAC systems or industrial processes.
Modulated Valves
Modulated electric ball valves allow for precise flow control by adjusting the position of the ball to regulate the flow rate. These valves are used in applications where variable flow control is necessary, such as in process control systems.
Quarter-Turn vs. Multi-Turn Actuators
Quarter-turn actuators are used for ball valves and butterfly valves, which require only a 90-degree rotation to open or close. Multi-turn actuators, on the other hand, are used for valves that operate with linear motion, such as gate or globe valves. These actuators use a jack screw mechanism to achieve linear motion, requiring multiple rotations to open or close the valve.
Applications of Electric Ball Valves
Electric ball valves are used in a wide range of industries and applications due to their versatility and reliability. Some common uses include:
Water Supply Systems
Electric ball valves are widely used in residential, commercial, and industrial water supply systems to control the flow of water. They are often employed in automated irrigation systems, water treatment plants, and plumbing systems.
Heating and Cooling Systems
In HVAC systems, electric ball valves regulate the flow of hot or cold water, ensuring efficient temperature control. They are also used in underfloor heating systems and radiant heating applications.
Industrial Processes
Electric ball valves play a critical role in industrial processes, such as chemical manufacturing, food and beverage production, and oil and gas operations. They are used to control the flow of liquids, gases, and slurries in pipelines and processing equipment.
Automation and Remote Control
The ability to control electric ball valves remotely makes them ideal for automated systems. They are commonly used in smart home systems, industrial automation, and remote monitoring applications.
Electric Ball Valve Maintenance
Proper maintenance is essential to ensure the longevity and optimal performance of electric ball valves. Here are some key maintenance tips:
Routine Checks
Visual Inspection: Regularly inspect the valve for leaks, corrosion, or visible damage. Address any issues promptly to prevent further damage.
Actuator Functionality: Test the actuator to ensure it operates smoothly and responds correctly to control signals. Listen for unusual noises that may indicate a problem.
Seals and Gaskets: Check the seals and gaskets for signs of wear, cracks, or fraying. Replace them as needed to prevent leaks.
Wiring and Connections: Inspect the electrical connections for corrosion or looseness. Ensure proper grounding to avoid electrical issues.
Lubrication
Valve Stem: Regularly lubricate the valve stem to reduce friction and ensure smooth operation.
Gears: If the actuator has gears, follow the manufacturer’s guidelines for lubrication to maintain optimal performance.
Cleaning
Exterior: Keep the valve clean and free from dirt, dust, and debris that could interfere with its operation.
Interior: During maintenance shutdowns, inspect and clean the internal components of the valve using appropriate cleaning agents.
Troubleshooting
Leaks: Address leaks immediately by inspecting and tightening seals, gaskets, and connections. Replace damaged components as needed.
Stuck Actuator: If the actuator is unresponsive, check the power supply, wiring, and control system for issues.
Sticky Valve: If the valve is difficult to operate, investigate potential causes such as dirt, corrosion, or inadequate lubrication.
Maintenance Schedule
Frequency: Adjust the frequency of maintenance tasks based on the valve’s usage and operating conditions.
Documentation: Keep detailed records of maintenance activities, including dates, tasks performed, and any issues encountered.
Professional Assistance
Manufacturer’s Guidelines: Always follow the manufacturer’s maintenance recommendations and schedule.
Expert Help: For complex issues or major overhauls, consult professionals with expertise in electric ball valves.
Conclusion
Electric ball valves are indispensable components in modern fluid control systems, offering reliable and efficient flow regulation for a wide range of applications. Their simple design, durability, and versatility make them a popular choice for industries ranging from water supply to industrial automation.
By understanding the functionality, types, and applications of electric ball valves, you can select the right valve for your needs and ensure optimal performance. Regular maintenance and proper care are essential to extend the lifespan of these valves and prevent costly downtime.
Whether you’re managing a residential water system, an industrial process, or an automated control system, electric ball valves provide the precision and reliability you need to keep your operations running smoothly. With the right knowledge and maintenance practices, you can maximize the efficiency and longevity of your electric ball valves, ensuring they continue to perform at their best for years to come.
