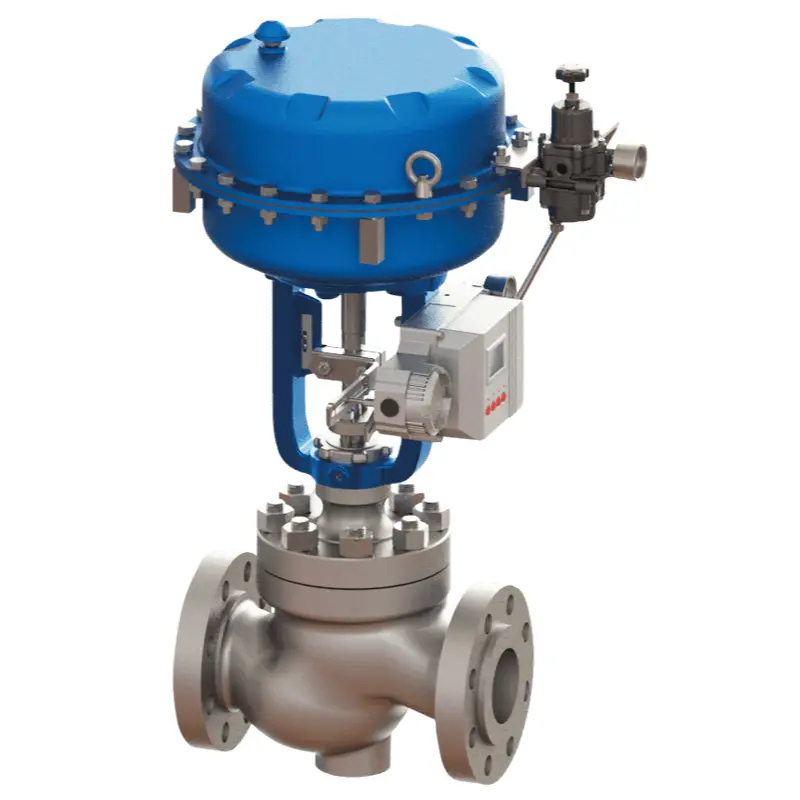

Introduction
Control valves play a critical role in regulating the flow of fluids in various industrial applications. When dealing with clean fluids, many valve designs can offer both precise modulation and tight shut-off. However, the scenario becomes more complex when the fluid contains solids, such as in slurry applications. In such cases, no valve design is perfect, and achieving both control and isolation becomes a significant challenge.
Standard control valves may provide tight shut-off when new, but abrasive fluids can cause erosion, leading to leakage shortly after the valve is put into service. As a result, relying on a control valve to provide both flow control and isolation in abrasive applications is not considered standard industry practice. Manufacturers often recommend installing a dedicated on/off valve in line with the control valve to ensure proper isolation when needed.
In slurry applications, metal-seated control valves typically allow some level of leakage past the seat when fully closed. This leakage is categorized into different classes, ranging from Class I to Class VI. It’s important to note that Class V and VI shut-off ratings are usually reserved for isolation valves with resilient seats, such as those made from rubber or urethane. Slurry control valves claiming Class V shut-off often degrade to Class IV or lower relatively quickly due to wear and tear.
Understanding Leakage Classifications
Control valve seat leakage classifications are standardized to help users understand the expected performance of a valve in terms of its ability to prevent fluid from passing through when fully closed. These classifications are defined by industry standards and provide a benchmark for comparing different valve designs. Below is an overview of the leakage classes:
Class I
Class I represents the least stringent leakage standard. Valves in this category are not designed for tight shut-off and are typically used in applications where minor leakage is acceptable. These valves are often used in non-critical processes where the cost of achieving a higher leakage class is not justified.
Class II
Class II valves offer slightly better shut-off performance than Class I but still allow a moderate amount of leakage. These valves are suitable for applications where some leakage is tolerable but tighter control is desired compared to Class I.
Class III
Class III valves provide a higher level of shut-off performance, with leakage rates lower than Class II. These valves are commonly used in applications where moderate sealing is required, but the process can accommodate a small amount of leakage.
Class IV
Class IV valves are designed for applications requiring a tighter seal. They are often used in processes where leakage must be minimized but not entirely eliminated. Metal-seated slurry control valves typically fall into this category, as they balance control and durability in abrasive environments.
Class V
Class V valves are engineered for applications requiring very low leakage rates. These valves are typically used in isolation applications where tight shut-off is critical. However, achieving Class V shut-off with metal-seated valves in slurry applications is challenging, as wear and erosion can quickly degrade performance to Class IV or lower.
Class VI
Class VI represents the highest level of shut-off performance, with virtually no leakage. Valves in this category are often equipped with resilient seats made from materials like rubber or urethane. These valves are ideal for applications requiring bubble-tight shut-off, such as in the pharmaceutical or food and beverage industries.
Below is a brief overview of some common standards related to valve design, testing, and leakage:
ASME B16.34
This widely used valve design standard covers flanged, threaded, and welding-end valves. It provides working pressure charts but does not define allowable seat leakage. It is often used alongside testing standards like API 598.
API 598
A globally recognized test specification, API 598 focuses on valve inspection and testing, primarily for isolation valves. It includes leakage rates and testing criteria for both metal-seated and resilient-seated valves.
MSS SP61
This standard, similar to API 598, outlines hydrostatic testing for steel valves. While it was one of the first valve test standards, it is less commonly used today. It influenced the development of more recent standards.
International Standards Organization (ISO) 5208
ISO’s primary valve testing standard covers various valve types and defines 10 levels of allowable internal leakage. Acceptance criteria are negotiated between the purchaser and manufacturer.
American National Standards Institute (ASNI) FCI 70-2, Control Valve Seat Leakage
This standard details test procedures and leakage rate classes (Class I to VI) for control valves. It is often referenced for internal testing but does not cover external testing, which is addressed by API 598.
International Society of Automation (ISA) S75, Hydrostatic Testing of Control Valves
This standard provides procedures for external hydrostatic testing of control valves. Closure testing and acceptance criteria are typically referenced from ANSI FCI 70-2.
These standards ensure valve reliability, safety, and performance across industries.
Factors Affecting Leakage Performance
Several factors influence the leakage performance of control valves, particularly in slurry applications:
Valve Design

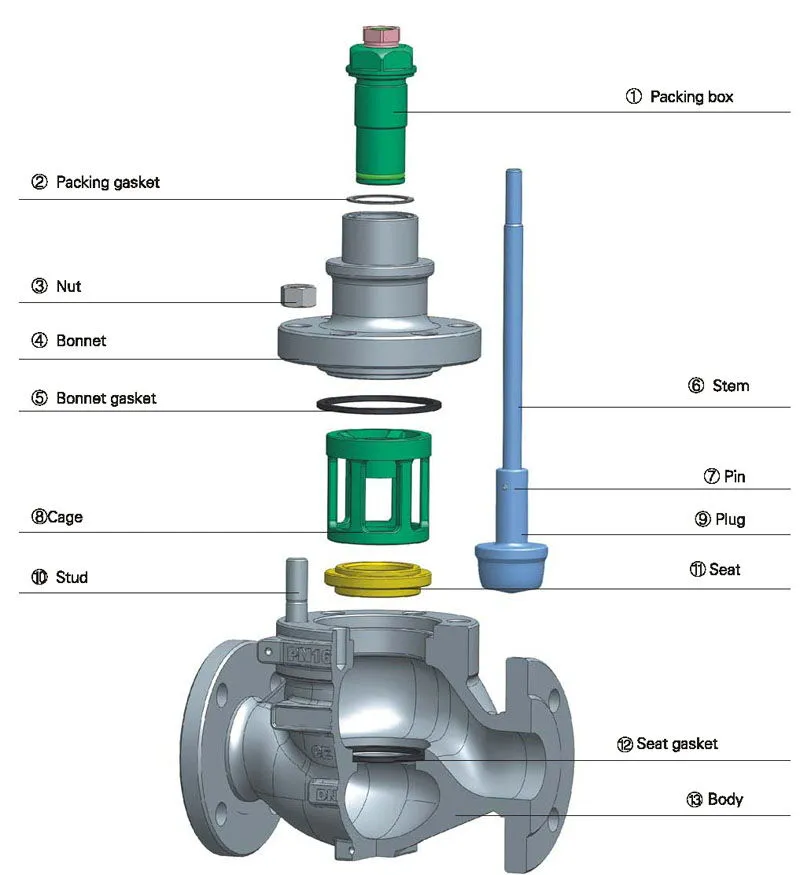

The design of the valve, including the type of seat and sealing mechanism, plays a significant role in determining its leakage class. Resilient seats generally provide better shut-off performance than metal seats but may not be suitable for high-temperature or abrasive applications.
Material Selection
The materials used for the valve components, especially the seat and disc, impact the valve’s ability to maintain a tight seal. Hardened materials can resist erosion better but may still degrade over time in abrasive environments.
Operating Conditions
Factors such as pressure, temperature, and the nature of the fluid (e.g., abrasive, corrosive) can affect the valve’s leakage performance. High-pressure or high-temperature applications may require specialized designs to maintain tight shut-off.
Maintenance and Wear
Regular maintenance is essential to ensure the valve continues to perform as expected. Wear and tear from abrasive fluids can degrade the valve’s sealing surfaces, leading to increased leakage over time.
Choosing the Right Valve for Your Application
Selecting the appropriate control valve for a specific application requires careful consideration of the process requirements and the valve’s leakage class. Here are some key points to keep in mind:
For Clean Fluids: Valves with tight shut-off capabilities (Class V or VI) are often suitable, as they can provide both precise control and isolation.
For Slurry Applications: Metal-seated valves with Class IV leakage are typically recommended, as they balance control and durability. However, a dedicated on/off valve should be installed for isolation purposes.
For Critical Applications: Resilient-seated valves with Class VI shut-off are ideal for processes requiring bubble-tight sealing, such as in sensitive industries like pharmaceuticals or food processing.
Conclusion
Control valve seat leakage classification is a critical factor in determining the suitability of a valve for a specific application. While clean fluid applications can often achieve both tight shut-off and precise control, slurry applications present unique challenges due to the abrasive nature of the media. In such cases, metal-seated valves with Class IV leakage are commonly used, with the understanding that some leakage is inevitable.
For applications requiring stringent shut-off, resilient-seated valves with Class V or VI ratings are recommended. However, these valves may not be suitable for abrasive or high-temperature environments. Ultimately, selecting the right valve involves balancing the need for control, isolation, and durability, while also considering the specific conditions of the application.
By understanding leakage classifications and their implications, engineers and operators can make informed decisions to optimize process performance and ensure the longevity of their control valves.
