Eccentric plug valves are essential components in fluid control systems across various industries. Their innovative design features a cylindrical plug that rotates around an offset axis, providing efficient flow regulation and reliable sealing. With the ability to minimize friction and ensure unobstructed flow, these valves are increasingly favored for applications requiring precise control and durability. In this article, we will explore how
eccentric plug valves operate, their key advantages, and why they are a preferred choice in modern industrial settings.

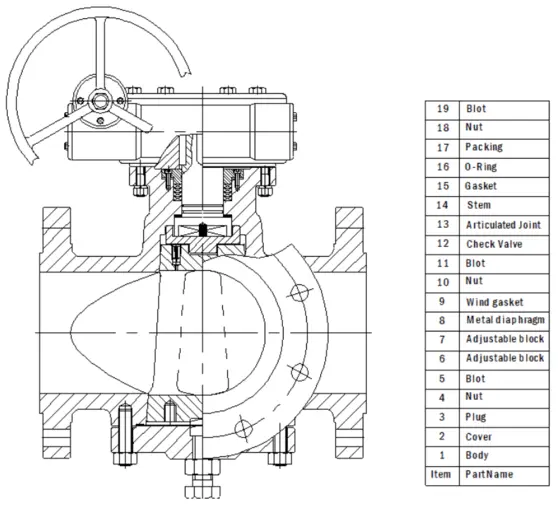

An eccentric plug valve is a specialized type of valve designed to regulate the flow of fluids in various industrial applications. Characterized by its unique design, the valve features a cylindrical plug that rotates around an offset axis. This eccentric rotation allows for efficient flow control, making it an ideal choice for applications where reliable sealing and minimal flow resistance are essential.
Unlike traditional valves that use a linear motion to open and close, the eccentric plug valve operates with a quarter-turn mechanism. This design not only simplifies the operation but also enhances the valve’s sealing capabilities. The eccentric plug valve is particularly useful in industries such as oil and gas, water treatment, and chemical processing, where precise flow control is critical.
The operation of an eccentric plug valve is straightforward yet highly effective. When the valve is actuated—either manually via a handle or automatically through an actuator—the shaft of the valve rotates, causing the cylindrical plug to turn. This quarter-turn action transitions the valve from an open to a closed position or vice versa.
As the shaft rotates, the plug moves into a raised eccentric seat. This movement is pivotal because, once the plug has completed a 90-degree rotation, it seats firmly against the valve seat. This contact creates a tight seal, effectively obstructing fluid flow. The unique design minimizes the risk of leakage, ensuring that the valve can maintain a secure shut-off even under high pressure.
One of the critical advantages of the eccentric design is how the plug interacts with the seat during operation. As the valve transitions to the closed position, the plug follows an eccentric path, which means it moves towards the seat without making contact with the valve body or seat walls. This feature significantly reduces friction between the plug and the seat, allowing for smoother operation and extending the valve's lifespan.
When the valve is in the fully open position, the plug is positioned away from the flow path, facilitating an unobstructed and streamlined flow of fluid. This characteristic is crucial for applications that require high flow rates, as it minimizes turbulence and pressure drop across the valve. Additionally, the resilient material used for the plug face ensures that, when the valve is closed, it makes full and uniform contact with the seat. This results in a bubble-tight shut-off, preventing any potential leaks and ensuring the integrity of the fluid system.
The combination of these design features makes the eccentric plug valve highly effective in various applications. Its ability to provide reliable sealing, minimize friction, and maintain efficient flow characteristics positions it as a preferred choice in many industries.
In summary, the eccentric plug valve is a sophisticated solution for controlling fluid flow in numerous industrial applications. Its unique design facilitates a quarter-turn operation that enhances sealing capabilities and reduces friction. By ensuring minimal contact between the plug and the seat during operation, the eccentric plug valve provides a smooth, reliable flow path while effectively preventing leaks. As industries continue to seek efficient and dependable flow control solutions, the eccentric plug valve stands out as a robust option for meeting these demands.
