How to Choose Butterfly Control Valve?
On this page
Selecting the right butterfly control valve for your specific application is crucial for ensuring optimal performance and longevity of your system. Butterfly valves are widely used in various industries due to their simple design, reliability, and cost-effectiveness. This article will guide you through the basics of butterfly control valves, the different types available, key factors to consider when choosing a valve, and their applications in various industries.

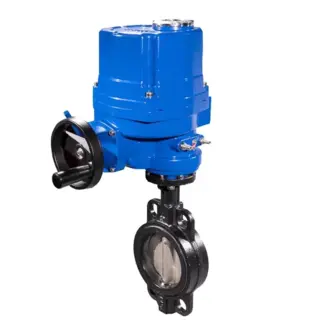

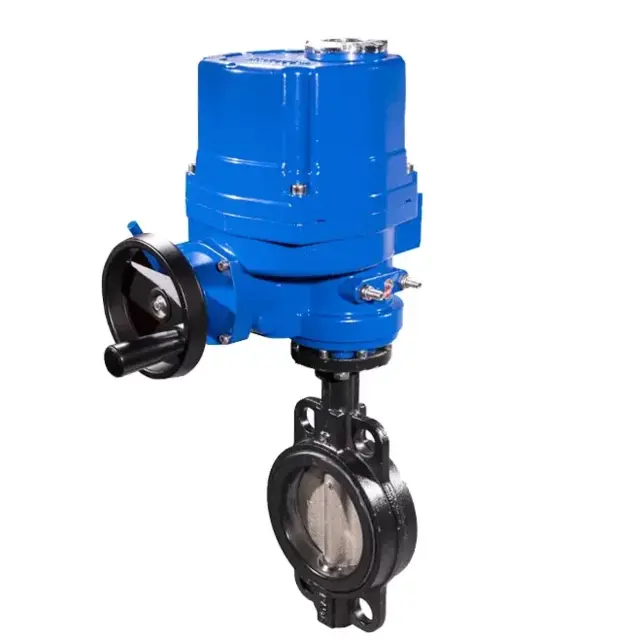

A butterfly control valve is a quarter-turn valve used to regulate flow. It consists of a disc that rotates to open or close the flow path. When the valve is fully opened, the disc is turned so that it allows an almost unrestricted flow. When closed, the disc blocks the flow path entirely. These valves are known for their quick operation, compact size, and ease of installation and maintenance.

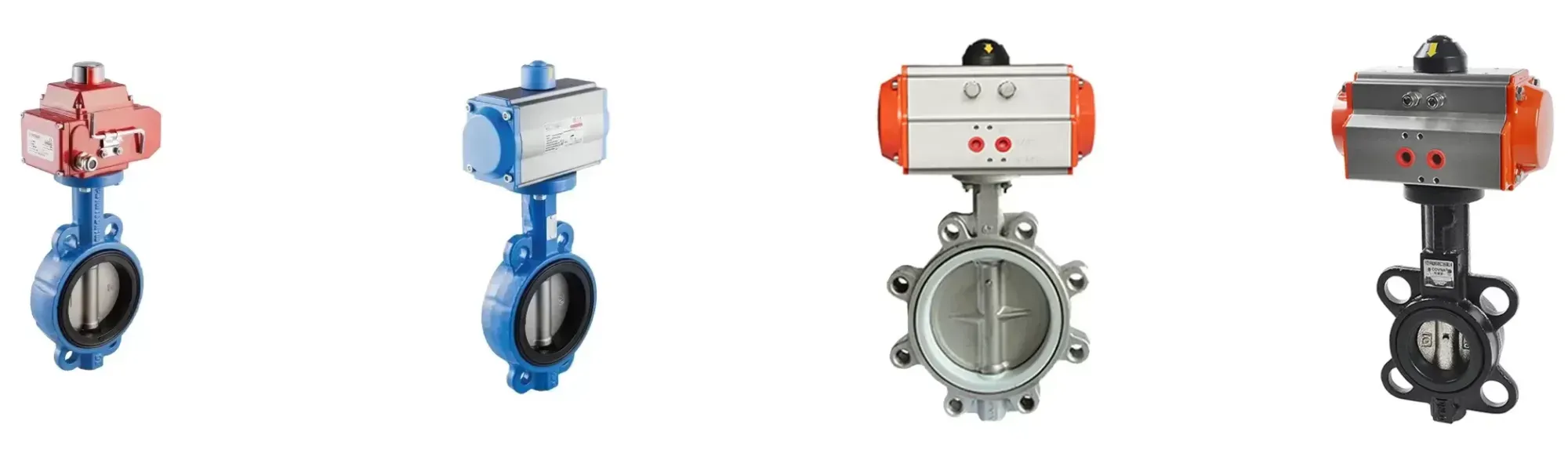

There are several types of butterfly control valves, each designed for specific applications and operational requirements:
This is the most common type of butterfly valve, designed to fit between two pipe flanges. The valve is held in place by bolts that pass through the flanges and the valve body. Wafer type valves are ideal for applications where a tight shut-off is not critical.
Lug type butterfly valves have threaded inserts on both sides of the valve body. This design allows for easy installation and removal, as the valve can be connected to the pipe flanges using bolts. They are suitable for systems where sections of the piping need to be isolated.
Flanged butterfly valves have flanges on both sides of the valve body, which are bolted directly to the pipe flanges. This type is used in applications where a robust and secure connection is required.
These valves have an offset disc that reduces friction and wear. They are suitable for applications requiring higher pressure and temperature resistance.
These valves feature three offsets that eliminate contact between the disc and seat during operation, providing a bubble-tight shut-off. They are ideal for critical applications requiring zero leakage.
Understanding the properties of the fluid flowing through the valve is essential. Consider the fluid's temperature, pressure, viscosity, and chemical composition. Some materials are more resistant to corrosion and wear, making them suitable for harsh environments.
The specific application will determine the type of butterfly valve required. Consider whether the valve will be used for isolation, regulation, or throttling. Different applications have varying requirements for valve performance, durability, and maintenance.
The size of the butterfly valve should match the diameter of the piping system. Using an incorrectly sized valve can lead to inefficiencies, pressure drops, and potential damage to the system. Ensure accurate measurements and compatibility with existing infrastructure.
The material of the valve body, disc, and seat must be compatible with the fluid and the operating conditions. Common materials include stainless steel, ductile iron, and various elastomers for the seat. Each material has specific properties that make it suitable for different applications.
Butterfly control valves are used in a wide range of industries, including:
For flow control and isolation in treatment plants.
For handling crude oil, natural gas, and refined products.
For managing corrosive and hazardous fluids.
For regulating air and water flow in heating, ventilation, and air conditioning systems.
For ensuring sanitary conditions and precise flow control.
Each application has unique requirements, and selecting the appropriate butterfly valve can significantly enhance system performance and reliability. Butterfly valves are commonly used as shut off valves due to their quick operation and reliable sealing capabilities. In applications where a tight shut-off is essential, high-performance double offset or triple offset butterfly valves are preferred. These valves provide a tight seal and are suitable for high-pressure and high-temperature environments. The ability to quickly open and close the valve makes them ideal for emergency shut-off situations. Choosing the right butterfly control valve involves understanding the basics of valve operation, the different types available, and the key factors to consider based on your specific application. By considering fluid characteristics, application requirements, valve size, and material of construction, you can select a valve that will provide reliable performance and longevity. Butterfly control valves are versatile and widely used across various industries, offering a cost-effective solution for flow regulation and shut-off needs. Ensure you work with a reputable manufacturer to obtain high-quality valves that meet your operational demands.
