Mixing Control Valves vs. Diverting Control Valves
On this page
Control valves are essential components in fluid handling systems, used to regulate flow, pressure, and temperature. Among the various types, mixing and diverting control valves serve distinct purposes. Understanding their functions, applications, and differences is critical for selecting the right valve for your system.
What is a Mixing Control Valve?
A mixing control valve is designed to combine two separate input streams into a single output stream. It features two inlet ports and one outlet port. Inside the valve, a movable plug regulates the flow rates of the incoming streams, allowing precise mixing before the fluid exits.Applications of Mixing Control Valves
Mixing valves are widely used in systems where precise temperature or composition control is required. For instance:HVAC Systems
A common application is in temperature regulation. For example, one inlet is connected to cold water, and the other to hot water. The valve adjusts the flow of each to produce water at the desired temperature.
Industrial Processes
Mixing two gases or liquids for chemical reactions or processing.
Food and Beverage Industry
Combining ingredients to maintain consistency in production.
Example in Practice
In hotels or universities, mixing valves ensure that hot and cold water are blended to provide water at a comfortable temperature for users, preventing scalding or discomfort.

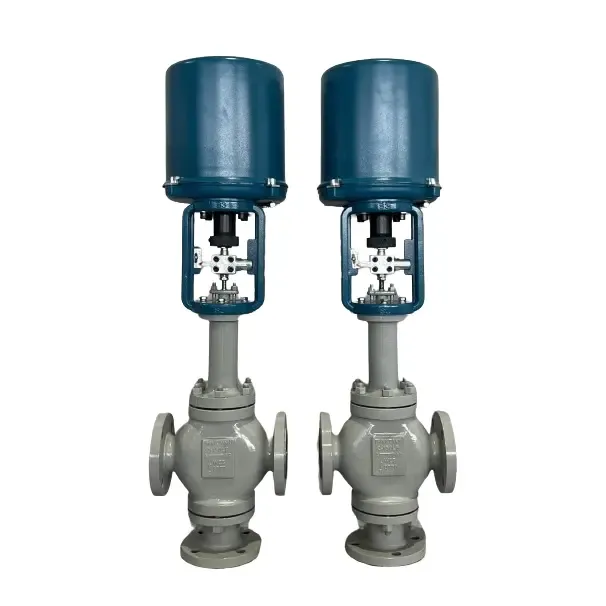

What is a Diverting Control Valve?
A diverting control valve performs the opposite function of a mixing valve. It has one inlet port and two outlet ports. The valve splits the incoming fluid stream, directing it to one of two outlets based on system requirements.
Applications of Diverting Control Valves
Diverting valves are essential in systems where fluid needs to be directed to different pathways or applications:
Thermal Systems
Diverting valves regulate the flow of heating or cooling fluids. For example, when a system reaches the desired temperature, the valve redirects excess fluid through a bypass, protecting the system from overheating or overcooling.
Material Processing
Ensuring that different media are processed separately, preventing contamination or undesirable reactions.
Safety Systems
Redirecting hazardous or high-pressure fluids away from sensitive equipment.
Example in Practice
In a cooling system, a diverting valve can redirect excess cooling fluid once the system achieves the desired temperature, ensuring efficient energy use and system longevity.Key Differences Between Mixing and Diverting Control Valves
|
Feature |
Mixing Control Valve |
Diverting Control Valve |
|
Function |
Combines two inputs into one output |
Splits one input into two outputs |
|
Port Configuration |
Two inlets, one outlet |
One inlet, two outlets |
|
Common Applications |
HVAC systems, chemical mixing, temperature control |
Thermal systems, material processing, safety systems |
|
Operation |
Balances input flows to achieve desired output |
Redirects flow between two pathways |
Choosing the Right Valve
When selecting between a mixing and diverting control valve, consider the following:System Design
Does your system require combining streams or splitting them?
Process Requirements
Ensure the valve meets the pressure, temperature, and flow characteristics of your application.
Material Compatibility
Choose valve materials suitable for the media being handled to prevent corrosion or damage.
Conclusion
Mixing and diverting control valves play crucial roles in industrial and commercial systems. Mixing valves combine inputs for a single, controlled output, while diverting valves separate a single input into distinct pathways. By understanding their unique functions and applications, you can make informed decisions to optimize your system's efficiency and reliability.
