Motorised Plastic Butterfly Control Valve: An Efficient Fluid Control Solution
On this page

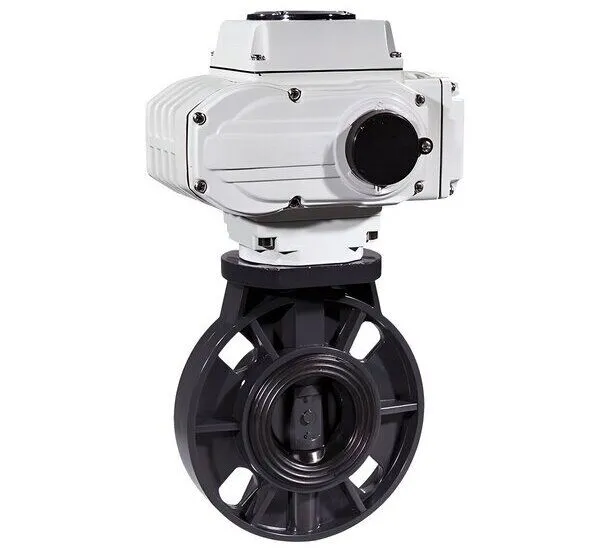

A motorised plastic butterfly control valve is a highly efficient and reliable device used to regulate the flow of fluids within pipelines. Its lightweight design, exceptional corrosion resistance, and automation features make it a preferred choice in many industrial applications, especially in sectors that deal with potable water, sewage systems, and aggressive chemical solutions. By combining a simple yet effective operating principle with innovative materials, motorised plastic butterfly control valves provide optimal performance and durability in even the harshest environments.
When the electric actuator receives a signal, it rotates the butterfly disc either parallel or perpendicular to the flow of fluid. When the disc is aligned parallel to the flow, the valve is open, allowing fluid to pass through freely. Conversely, when the disc is perpendicular to the flow, it creates a seal, effectively stopping the fluid and closing the valve. This simple design allows for quick and efficient operation, making the motorised plastic butterfly valve suitable for a variety of applications.
Additionally, these materials are highly resistant to UV degradation, which is important for applications that involve exposure to sunlight or other harsh weather conditions. This enhances the valve’s longevity and performance, even in outdoor environments.
Furthermore, plastic valves do not corrode, meaning that there is no risk of metal particles or rust contaminating the fluids they control. This is particularly important in potable water systems, where maintaining the purity of the water is critical. The use of non-corrosive materials ensures that the valve continues to operate effectively without compromising water quality.
Understanding the Operating Principle of a Motorised Plastic Butterfly Valve

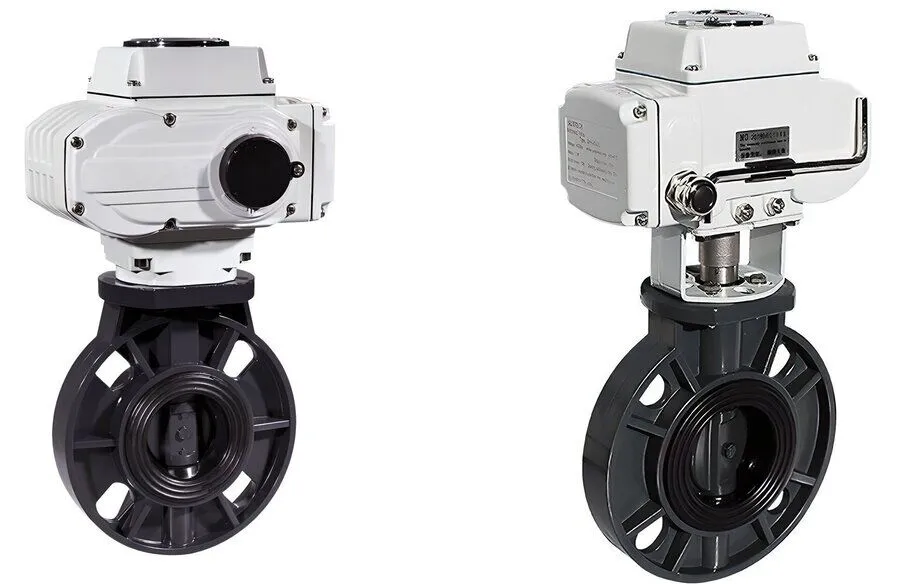

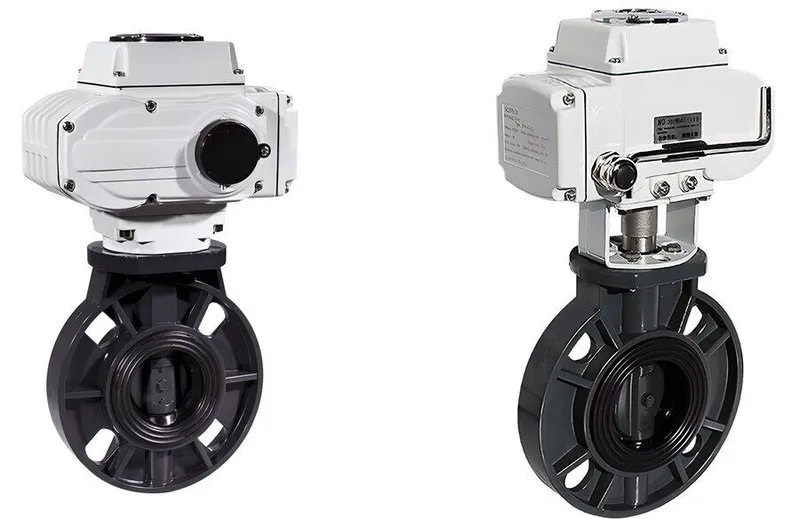

The operation of a motorised plastic butterfly valve is both straightforward and highly effective, making it ideal for controlling the flow of various types of fluids. At the heart of the valve is a circular disc, known as the butterfly, which controls the fluid flow within the pipeline. This disc is located in the center of the valve body and is connected to an electric actuator, which controls the valve’s operation.When the electric actuator receives a signal, it rotates the butterfly disc either parallel or perpendicular to the flow of fluid. When the disc is aligned parallel to the flow, the valve is open, allowing fluid to pass through freely. Conversely, when the disc is perpendicular to the flow, it creates a seal, effectively stopping the fluid and closing the valve. This simple design allows for quick and efficient operation, making the motorised plastic butterfly valve suitable for a variety of applications.
Key Advantages of Motorised Plastic Butterfly Valves
Motorised plastic butterfly valves offer several advantages over traditional metal valves, especially in applications where corrosion resistance, low weight, and high automation are essential. Below are some of the key benefits:1. Corrosion Resistance
One of the primary reasons motorised plastic butterfly valves are so popular is their resistance to corrosion. Traditional metal valves are susceptible to rust and wear, especially when handling aggressive chemicals or fluids with high acidity or alkalinity. In contrast, plastic materials such as PVC, CPVC, and PP are highly resistant to corrosion, ensuring that the valve will continue to function effectively even in harsh conditions. This makes them ideal for use in water treatment, sewage lines, and chemical processing systems.2. Lightweight Design
The use of plastic materials in the construction of these valves makes them significantly lighter than their metal counterparts. This reduces the overall weight of the valve, making it easier to handle, install, and maintain. This is particularly advantageous in applications where space and weight are critical factors, such as in compact or remote installations.3. High Efficiency and Automation
Motorised plastic butterfly valves are typically equipped with electric actuators that enable automatic operation. This allows for precise control of the valve, which can be integrated into an automated system for fluid management. The actuator can be programmed to open and close the valve at specific intervals, based on a signal or command from the control system. This automation leads to more efficient fluid management and reduces the need for manual intervention, resulting in lower labor costs and fewer chances for human error.4. Cost-Effective
Plastic materials are generally more affordable than metals, making motorised plastic butterfly valves a cost-effective choice for many industries. In addition to their lower upfront cost, the long-lasting durability and minimal maintenance requirements of plastic valves reduce the overall lifetime cost. The corrosion-resistant properties also mean that these valves will require fewer replacements over time, further contributing to their cost-effectiveness.5. Versatility
Motorised plastic butterfly valves are versatile and can be used in a wide range of industries and applications. They are commonly found in potable water systems, sewage treatment facilities, and chemical processing plants, where they can handle a variety of fluids, including water, acids, alkalis, and other corrosive substances. The ability to handle different types of fluids makes them suitable for a variety of pipelines and systems, further increasing their appeal across different industries.Innovative Materials: A Key to Performance and Durability
Motorised plastic butterfly control valves are made from high-performance plastic materials such as PVC (Polyvinyl Chloride), CPVC (Chlorinated Polyvinyl Chloride), and PP (Polypropylene). These materials offer several unique advantages that contribute to the overall reliability and longevity of the valve:1. High-Performance Plastics
The choice of high-performance plastics ensures that the motorised butterfly valve remains durable and effective even in challenging environments. PVC, CPVC, and PP are known for their excellent chemical resistance, making them ideal for use in systems that transport aggressive fluids. These materials also offer good impact resistance and high tensile strength, ensuring the valve will function properly even under high pressure.Additionally, these materials are highly resistant to UV degradation, which is important for applications that involve exposure to sunlight or other harsh weather conditions. This enhances the valve’s longevity and performance, even in outdoor environments.
2. Environmentally Friendly
The use of plastic materials in motorised butterfly valves not only enhances their performance but also reduces the environmental impact compared to metal alternatives. Plastic valves are lighter, which means they require less energy to transport and install. They are also recyclable, which helps minimize waste and supports sustainability efforts.Furthermore, plastic valves do not corrode, meaning that there is no risk of metal particles or rust contaminating the fluids they control. This is particularly important in potable water systems, where maintaining the purity of the water is critical. The use of non-corrosive materials ensures that the valve continues to operate effectively without compromising water quality.
