Pneumatic vs. Self-Operated Control Valves: Key Differences
On this page

Introduction

Control valves play a pivotal role in various industrial processes, ensuring precise regulation of flow, pressure, temperature, and other critical parameters. Among the types of control valves, pneumatic control valves and self-operated control valves are prominent, each with distinct mechanisms and applications. This article delves into the differences between these two types of control valves, highlighting their functionalities, advantages, and suitable applications.

What is The Pneumatic Control Valve?

A pneumatic control valve is a key component in a control system, designed to regulate the flow of liquids or gases by adjusting the valve opening in response to control signals from an external unit. Typically, it comprises an actuator and a valve body. The actuator, powered by compressed air, moves the valve plug or disc to modulate flow rate and pressure.

Pneumatic control valves are favored for their rapid response times and high reliability in dynamic environments. They can manage complex processes by precisely controlling parameters such as flow rate, pressure, temperature, and liquid level. The integration of these valves into automated systems enhances operational efficiency and safety, making them indispensable in sectors like oil and gas, chemicals, and water treatment.

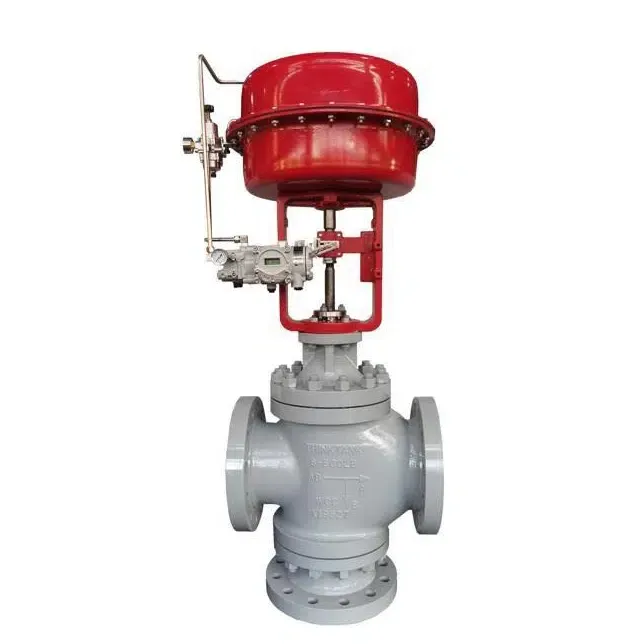

Pneumatic Control Valve

What is The Self-Operated Control Valve?

Self-operated control valves are unique in their operation, relying on the energy of the medium flowing through them to adjust the valve opening. These valves utilize the pressure and temperature of the medium as a driving force, allowing for automatic regulation of pressure, flow rate, and temperature without requiring external power sources or additional instruments.

Typically, self-operated control valves are used to maintain upstream or downstream pressure, providing a cost-effective solution in scenarios where a pneumatic actuator may be unnecessary. Their simplicity and low maintenance requirements make them suitable for various applications, especially in environments where power supply may be limited or unreliable.

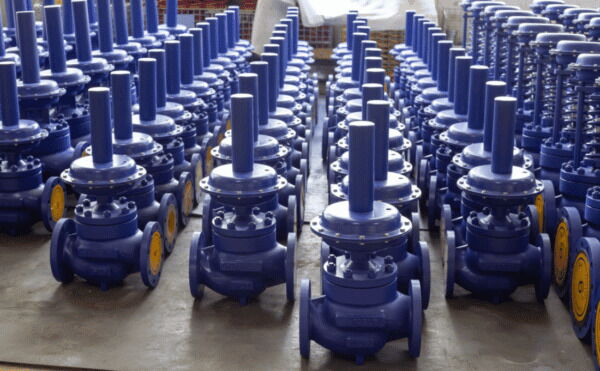

Self-Operated Control Valve

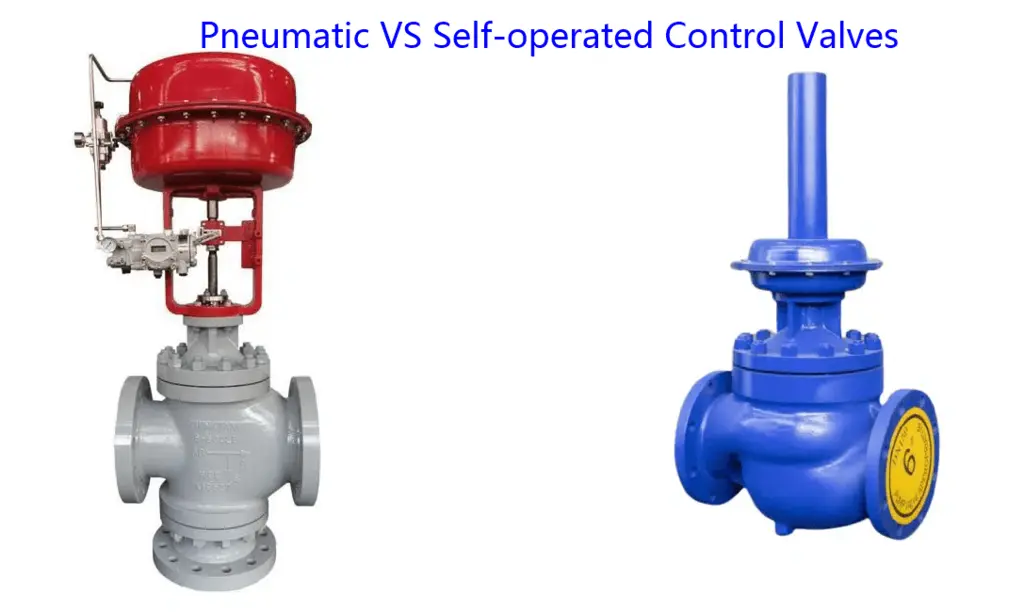

Differences Between a Pneumatic Control Valve and a Self-Operated Control Valve

While both pneumatic and self-operated control valves serve the essential function of regulating flow, they differ significantly in their operation, design, and applications.

Energy Source

The most fundamental difference lies in their energy sources. Pneumatic control valves are powered by external compressed air, allowing them to respond swiftly to control signals. In contrast, self-operated control valves harness the energy from the medium itself, eliminating the need for external power.

Control Mechanism

Pneumatic control valves utilize an actuator to adjust the valve position based on control signals, providing precise control over the valve’s opening. This design allows for rapid adjustments in response to changing process conditions. Conversely, self-operated control valves adjust their opening based on the pressure and temperature of the medium, resulting in a more passive control mechanism.

Complexity and Cost

Pneumatic control valves tend to be more complex due to their reliance on actuators and control systems. This complexity can lead to higher initial installation and maintenance costs. Self-operated control valves, on the other hand, are simpler in design and operation, making them more cost-effective, particularly for smaller applications.

Response Time

Pneumatic control valves generally offer faster response times compared to self-operated valves. The use of compressed air allows for immediate adjustments, which is crucial in processes that require quick reactions to changes in conditions. Self-operated control valves may have slower response times, as they rely on the medium’s characteristics, which can introduce delays in the regulation process.

Applications

Pneumatic control valves are widely used in applications requiring precise control and rapid adjustments, such as in chemical processing, oil and gas operations, and power generation. Their versatility makes them suitable for various environments where quick responsiveness is critical.

In contrast, self-operated control valves are often employed in simpler applications, such as in water distribution systems or steam control. They are particularly advantageous in settings where external power supply is challenging or where a more straightforward solution is needed.

Conclusion

In summary, both pneumatic control valves and self-operated control valves play vital roles in industrial automation and process control. The choice between the two largely depends on the specific requirements of the application, including the need for power supply, complexity, response time, and cost considerations. Understanding these differences allows engineers and operators to select the appropriate valve type to optimize system performance and achieve operational efficiency.
