Butterfly valves are a crucial component in many industrial applications, valued for their compact design, efficient operation, and versatility. High-performance butterfly valves (HPBVs) stand out due to their enhanced durability, lower maintenance costs, and superior flow control. These valves have become the preferred choice for industries like oil and gas, chemical processing, power generation, and water treatment, where precision and reliability are paramount. This article explores the standard features of high-performance
butterfly control valves and highlights why they are the ideal solution for demanding operational environments.

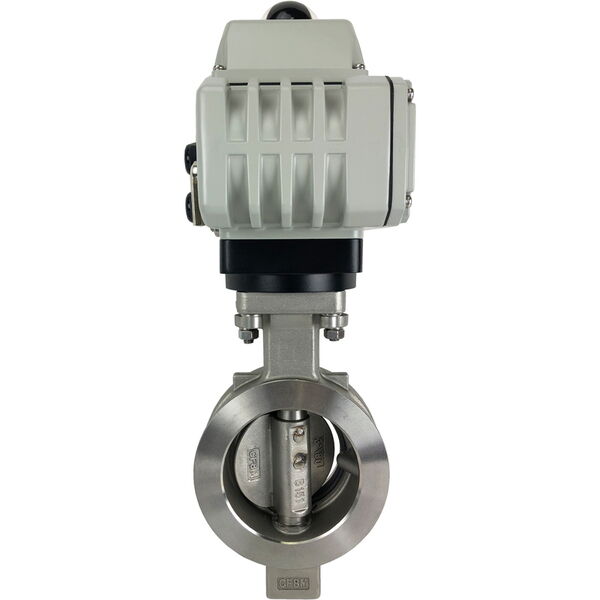

316 Stainless Steel (CF8M) Body
At the heart of these butterfly valves is the 316 stainless steel (CF8M) body, offering superior corrosion resistance and mechanical strength. The CF8M material is a molybdenum-bearing austenitic stainless steel, which enhances its resistance to pitting and crevice corrosion in chloride environments. This makes it an excellent choice for applications where the valve is exposed to harsh chemicals, seawater, or other corrosive substances. The robust construction also ensures durability and longevity, reducing the need for frequent replacements or repairs.
These valves' double offset, or eccentric design, is a key feature that greatly enhances performance. In this configuration, the shaft is offset from both the center of the valve and the centerline of the sealing surface. This design minimizes contact between the disc and the seat when the valve is in operation, significantly reducing friction and wear on the sealing surface. As a result, the valve can operate with less torque, prolonging its life and maintaining tight shutoff even after extended cycles.
The reduced friction not only extends the valve's lifespan but also leads to smoother, more efficient operation, making it an excellent choice for applications requiring frequent cycling. Industries that rely on continuous operation or high-frequency usage can benefit greatly from this design, as it reduces the need for maintenance and minimizes downtime.
The single-piece shaft made from 17-4PH stainless steel further enhances the valve’s durability. Known for its high strength and corrosion resistance, 17-4PH is a precipitation-hardened stainless steel that offers excellent mechanical properties under extreme conditions. This material is well-suited for high-pressure environments and ensures reliable performance over extended periods. The single-piece construction also reduces the risk of shaft failure or misalignment, further improving the valve's operational stability.
The use of reinforced polytetrafluoroethylene (RPTFE) for the valve seats and stem seals provides exceptional chemical resistance, high-temperature tolerance, and reduced wear. RPTFE is an enhanced version of PTFE (Teflon), offering improved mechanical strength and resistance to deformation under load. This material is particularly effective in sealing applications where the valve is exposed to aggressive media, such as acids, solvents, and abrasive particles. RPTFE’s self-lubricating properties also reduce the need for external lubrication, leading to lower maintenance costs and more reliable performance over time.
The valve disc is a critical component in controlling fluid flow, and the high-performance butterfly valve features a heavy-duty, single-piece cast and machined disc with an integral mounting sleeve. This design ensures a robust and secure connection between the disc and the shaft, preventing disc deflection or movement during operation. The machined surface of the disc provides precise control over flow rates, ensuring consistent and accurate performance. The integration of the mounting sleeve also eliminates the need for additional components, simplifying installation and reducing potential points of failure.
Replacing valve seats can be a challenging and time-consuming task, but the spring-loaded seat cover in high-performance butterfly valves makes this process significantly easier. The seat cover can be quickly removed and replaced without requiring extensive disassembly, allowing for faster maintenance and reduced downtime. This feature is especially valuable in industries where operational continuity is critical, as it minimizes interruptions and ensures that the valve can be returned to service as quickly as possible.
The inclusion of an integral ISO 5211 mounting pad simplifies actuator installation by eliminating the need for additional mounting brackets. This design feature ensures that the valve can be easily automated using electric or pneumatic actuators, offering flexibility for a wide range of applications. The standardized mounting interface also makes it easier to replace or upgrade actuators as needed, providing a future-proof solution for valve automation.

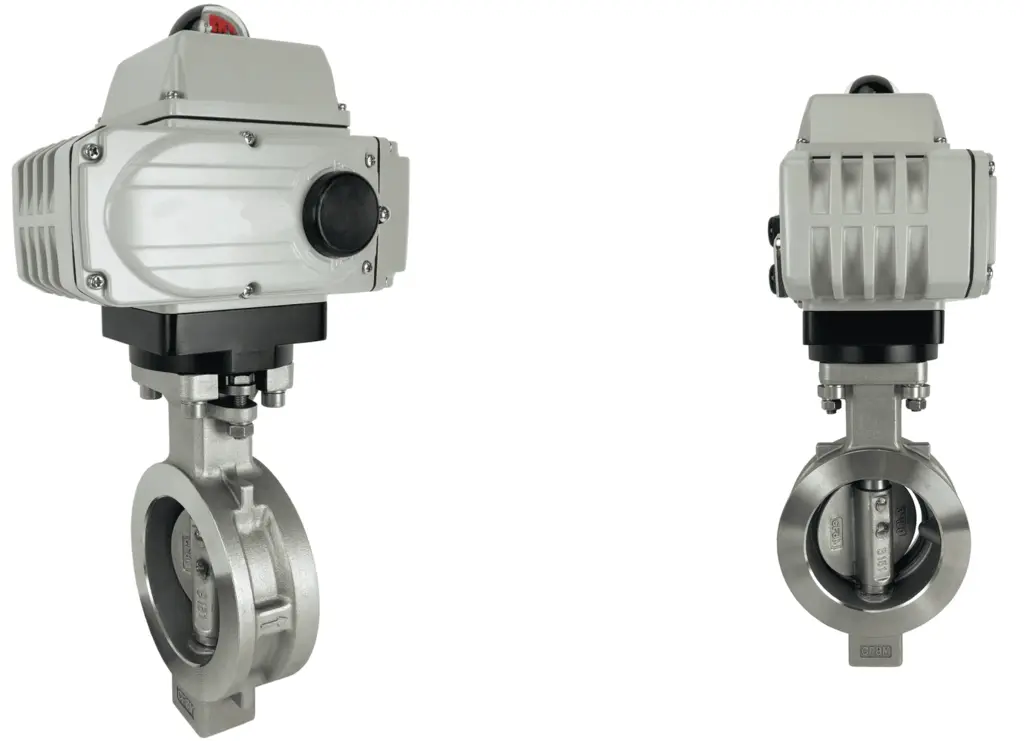

In many modern industrial applications, valve automation is essential for optimizing process control, and the electric actuators used with high-performance butterfly valves are packed with features designed to maximize efficiency and reliability.
The Electric Actuator Standard Features include an Electronic Positioning System (EPS) with a 4-20mA input, allowing for precise control over the valve's position. This system ensures accurate and repeatable valve positioning, which is crucial for maintaining consistent flow rates and minimizing process variability. The EPS is particularly valuable in applications where fine-tuned control is necessary, such as chemical dosing or fluid mixing.
The quarter-turn operation, combined with mechanical limits, ensures that the valve opens and closes quickly and accurately. The mechanical limits provide an added layer of protection by preventing over-rotation, which can damage the valve or actuator. This feature is essential for maintaining the integrity of the valve and ensuring reliable operation over time.
The actuator's rugged Type 4X weatherproof aluminum alloy housing provides protection against harsh environmental conditions, including exposure to moisture, dust, and corrosive substances. This robust housing ensures that the actuator remains operational even in outdoor or highly corrosive environments, making it suitable for a wide range of industrial applications.
The manual override feature allows operators to manually control the valve in the event of an actuator failure or power loss. This feature ensures that critical operations can continue, even in emergencies. Additionally, the heavy-duty motor with overload protection ensures that the actuator can handle demanding applications without risk of damage.
High-performance butterfly valves equipped with these advanced features offer unmatched reliability, efficiency, and ease of operation. Whether used in critical applications requiring precise control or in rugged environments demanding durability, these valves provide a superior solution for industries worldwide.
