Unlocking Precision and Performance: The Power of Quarter-Turn Electric Actuators

In today’s highly automated industrial world, the ability to control process flow with precision and reliability has never been more critical. Whether it's managing fluid flow in oil pipelines, regulating air in HVAC systems, or ensuring sanitation in food processing lines, valve actuation is at the heart of modern infrastructure. Among the most widely adopted solutions in this domain is the quarter-turn electric actuator—a compact, energy-efficient, and high-precision device that is reshaping how industries approach valve automation.

But what exactly are quarter-turn electric actuators? How do they work? And why are they increasingly preferred across diverse sectors?

This article explores the functionality, applications, selection criteria, and maintenance of quarter-turn electric actuators while comparing them with their multi-turn counterparts. With a growing emphasis on smart automation and sustainability, understanding these actuators can offer engineers, plant managers, and system integrators an edge in designing more efficient and resilient control systems.

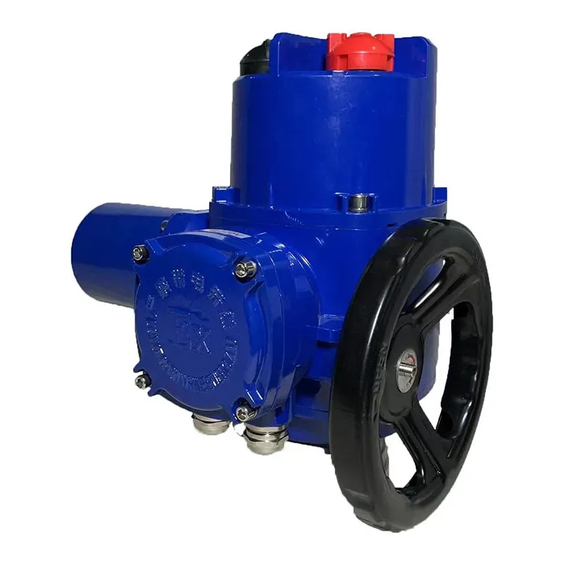

At its core, a quarter-turn electric actuator is an electromechanical device designed to control valves that require a 90-degree rotation—commonly known as a quarter turn. These actuators convert electrical energy into mechanical torque, which in turn rotates the valve stem to open, close, or modulate the valve.

The defining characteristic of these actuators lies in their rotational motion. Unlike linear actuators that push or pull a valve stem, quarter-turn actuators rotate it. This makes them ideal for operating valves such as:

Ball valves

Butterfly valves

Plug valves

Dump valves

Choke valves

Additionally, they are increasingly used in HVAC systems to automate dampers that regulate air flow in chimneys, ducts, and air-handling units.

By eliminating the need for compressed air or hydraulic pressure, electric quarter-turn actuators reduce system complexity, minimize installation and maintenance costs, and deliver improved energy efficiency.

A typical quarter-turn electric actuator consists of the following core components:

Electric Motor – Converts electrical input (AC or DC) into rotational energy.

Gear Train – Amplifies motor torque and reduces rotational speed to suitable operating levels.

Limit Switches and Position Sensors – Provide feedback on valve position for control and monitoring.

Manual Override – Allows manual operation during power failure or maintenance.

Housing and Enclosure – Protects internal components; typically rated for water, dust, and explosion protection.

When activated, the motor drives the gear train, which turns the actuator’s output shaft precisely 90 degrees. This movement translates directly to the valve stem, positioning the valve from fully closed to fully open, or to any intermediate point if throttling is required.

Quarter-turn electric actuators offer several distinct advantages that make them highly desirable for modern process control environments:

Their relatively small footprint and lightweight build make them ideal for tight installation spaces, especially in retrofitting projects.

Because they draw power only when changing position (not continuously), these actuators minimize electricity consumption.

With built-in sensors and feedback systems, electric actuators enable precise valve positioning, making them suitable for modulating or throttling applications.

They can be easily integrated into digital control systems and SCADA environments, offering remote operation, diagnostics, and status monitoring.

Compared to pneumatic or hydraulic systems, electric actuators require less ongoing maintenance and eliminate the need for external compressors or pumps.

These actuators serve as critical automation components across a wide range of industries. Here’s how they are being utilized:

Quarter-turn electric actuators are extensively used to control valves on pipelines that carry potable water, wastewater, and chemicals. Their precise control capabilities make them indispensable for maintaining flow rates, dosing chemicals, and managing filter processes.

In upstream, midstream, and downstream operations, these actuators play vital roles in pipeline control, tank isolation, and pressure regulation. Their explosion-proof and weatherproof variants ensure safe operation in hazardous environments.

HVAC systems rely on accurate damper control to manage airflow and indoor climate. Electric actuators enable responsive control for dampers and valves in air handling units, VAV boxes, and heat exchangers.

In environments where hygiene and cleanability are paramount, electric actuators operate sanitary valves used in fluid transfer, mixing, and cleaning-in-place (CIP) systems. Their stainless-steel variants are ideal for washdown areas.

From fossil fuel to renewable energy plants, quarter-turn electric actuators are used to regulate coolant flow, steam pressure, and emission control valves. Their ability to respond quickly and reliably is crucial to plant efficiency.

Selecting the right actuator is essential to ensure optimal performance, safety, and longevity. Here are the most important factors to consider:

Every valve has a torque requirement to move from closed to open. Choose an actuator that can deliver at least 20% more torque than the maximum requirement to ensure smooth operation, especially in aging valves or extreme conditions.

Actuators can be powered by either AC or DC electricity. Verify the available supply voltage at your site—common configurations include 24VDC, 110VAC, and 220VAC.

If your application requires frequent valve cycling (e.g., throttling), make sure to choose an actuator rated for high-duty cycles. Otherwise, overheating and premature wear may occur.

Outdoor, wet, or hazardous environments demand enclosures with specific protection ratings:

IP67 for dust and temporary water immersion

IP68 for prolonged submersion

Explosion-proof housings for hazardous areas

Depending on your system needs, choose from:

On/Off Control – Fully open or close the valve.

Modulating Control – Adjust valve position continuously for throttling.

Failsafe Options – Return valve to a safe position on power failure.

Although quarter-turn electric actuators are known for their low maintenance, periodic checks are necessary to ensure long-term reliability and performance.

Loose wires or faulty terminals can lead to actuator failure or erratic operation. Perform regular inspections and tighten terminals if necessary.

Internal gear mechanisms should be lubricated as per manufacturer recommendations to minimize friction and wear.

Dust and debris can accumulate over time. Keep the actuator housing clean, especially the venting and terminal box areas.

Verify that the actuator is correctly calibrated and that feedback signals accurately reflect the valve position. Periodic recalibration may be necessary.

Ensure that manual operation is possible in case of power failure. Practice safe manual operation periodically.

While both types of actuators serve to automate valve movement, they differ fundamentally in their motion and use cases:

Quarter-turn actuators are preferred for quick operation and space-constrained applications. Multi-turn actuators, on the other hand, are indispensable when large linear movement is required to operate valves with rising stems.

As industries increasingly turn to smart technologies, quarter-turn electric actuators are evolving too. Today’s actuators come equipped with features like Bluetooth connectivity, cloud integration, and predictive diagnostics. Smart actuators can now monitor their own health, alert operators to potential issues, and automatically adjust to changing conditions.

Environmental concerns and sustainability goals are also pushing industries toward electric actuation over pneumatic systems, as electricity is cleaner and more readily available, especially from renewable sources.

Furthermore, the integration of actuators with Industrial Internet of Things (IIoT) platforms allows for centralized control, data analysis, and remote troubleshooting—saving time, improving safety, and reducing downtime.

Quarter-turn electric actuators have become essential components in modern valve automation, offering a balance of precision, energy efficiency, and reliability. Their widespread use across water treatment plants, HVAC systems, energy plants, and process industries reflects their versatility and performance.

By understanding their operation, application potential, and key selection criteria, engineers and facility managers can better design and maintain systems that meet today’s demands—and are ready for tomorrow’s challenges.

Whether you're upgrading legacy systems, implementing smart controls, or building new infrastructure, quarter-turn electric actuators are a smart investment in automation, control, and efficiency.
