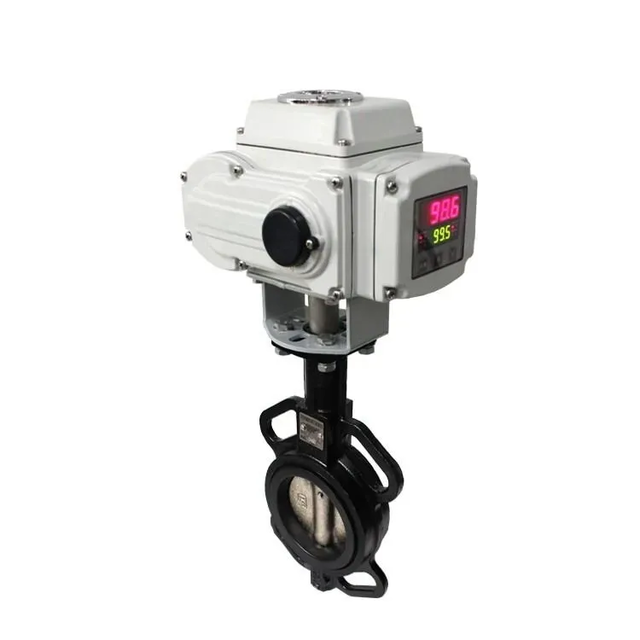

What is an Electric Butterfly Control Valve?
An Electric Butterfly Control Valve is a highly efficient flow control device commonly used in large-scale piping systems to regulate the flow of fluids, gases, or slurries. This valve design is distinguished by its unique structure, featuring a circular disc or plate, which is pivoted at right angles to the flow direction within the pipeline. When the disc rotates around its spindle, it opens or closes, controlling the flow of the medium through the pipe.
The term "butterfly" comes from the valve’s disc resembling a butterfly's wings in mid-flap when partially opened. In an electric butterfly control valve, the word "electric" signifies the incorporation of an electric actuator. This actuator is responsible for controlling the rotation of the butterfly plate, allowing for automated operation. The actuator can be precisely programmed to respond to signals from a control system, enabling efficient and continuous flow regulation without manual intervention.
Due to their compact design and ability to handle a wide range of media, electric butterfly control valves are widely used across diverse industries such as water treatment, HVAC systems, power generation, oil and gas, and many others. These valves are especially suitable for systems with space constraints and are praised for their ability to deliver tight seals, requiring minimal maintenance while providing reliable and accurate flow control.
How Does an Electric Butterfly Control Valve Work?
At its core, the electric butterfly control valve is composed of two main components: the butterfly valve itself and an electric actuator. Together, they provide an easy-to-operate, efficient solution for regulating the flow of various fluids, including water, air, and chemical substances.
The basic working mechanism involves a disc-like structure (the "butterfly") that is mounted on a valve shaft. When the valve is fully closed, the disc is positioned at a right angle to the pipe's flow direction, blocking the passage. When the valve is opened, the disc rotates around its central axis, allowing fluid to pass through the pipe. This operation is highly effective for controlling flow in both on-off and modulating control applications.
The electric actuator is the driving force behind this rotation. When electrical energy is supplied, the actuator transmits it to the valve stem, causing the butterfly plate to rotate. The rotation can range from fully open (0 degrees) to fully closed (90 degrees), depending on the required flow rate. The precise rotation of the valve is controlled via signals from a centralized control system, allowing for real-time adjustments to flow and pressure.
The integration of an electric actuator enables these valves to be automated, which greatly improves the efficiency and precision of system operations. The actuator can be controlled through various inputs, such as temperature sensors, pressure sensors, or manually from a remote location, providing unparalleled versatility. Additionally, electric butterfly valves can be designed to feature a range of control options, from simple open/close functionality to sophisticated modulating control, allowing for variable flow rates.
Key Advantages of Electric Butterfly Control Valves
Efficient Flow Control
One of the primary benefits of an electric butterfly control valve is its ability to deliver precise flow regulation. This is particularly valuable in processes that require stable, continuous flow of fluids or gases under varying conditions. The ability to modulate the valve's position electronically allows for accurate and efficient control over flow rates.
Compact Design
The design of the electric butterfly valve is compact and space-efficient, making it suitable for installations where space is a limiting factor. The relatively small size of these valves allows them to fit into tight spaces without compromising performance, which is ideal for industries that require high-density installations.
Minimal Maintenance
Electric butterfly valves are known for their durability and low-maintenance requirements. The electric actuator eliminates the need for manual adjustments and frequently lubricated components, which is common in traditional mechanical valves. This makes electric butterfly control valves particularly cost-effective over time, as they reduce the frequency and costs of maintenance.
Automation and Remote Control
Thanks to their electric actuators, these valves can be automated to respond to control signals from a remote location or central system. This automation allows for more precise control over the flow, improving system efficiency and reducing human error. In industries where conditions change frequently, the ability to adjust valve positions in real-time ensures that processes continue running smoothly and within desired parameters.
Wide Range of Applications
Electric butterfly valves are versatile and can be used across a broad spectrum of industries. From water treatment plants and HVAC systems to oil and gas pipelines, power plants, and chemical processing facilities, these valves are adapted for both simple on/off and complex modulating applications. They can handle various fluids, including water, oil, and gases, making them highly flexible.
Applications of Electric Butterfly Control Valves
The electric butterfly control valve is used in a variety of industries, providing reliable flow control across a wide range of applications. Some key areas of use include:
Water Treatment and Distribution
Electric butterfly valves are commonly used in water treatment plants to regulate the flow of water through filtration and purification systems. Their reliable and precise control is essential for maintaining optimal flow rates and ensuring consistent water quality. They are also used in municipal water distribution systems to manage pressure and flow in pipelines.
Oil and Gas Industry
In the oil and gas sector, electric butterfly control valves are employed to regulate the flow of crude oil, natural gas, and refined petroleum products in pipelines and processing systems. These valves are vital for maintaining pressure and flow rates in an environment that requires high reliability under demanding conditions.
HVAC Systems
Electric butterfly valves play a critical role in HVAC (Heating, Ventilation, and Air Conditioning) systems, where they regulate the flow of air and water in heating and cooling applications. Their ability to be precisely controlled allows for energy-efficient operation and maintains comfort levels in commercial and residential buildings.
Power Generation
In power plants, electric butterfly control valves are utilized to regulate the flow of steam, water, and other fluids in boilers, turbines, and cooling systems. The precise control of these fluids is essential for maintaining the efficiency and safety of the power generation process.
Chemical and Pharmaceutical Industries
Electric butterfly valves are widely used in the chemical and pharmaceutical industries, where they help control the flow of liquids and gases in production processes. Their ability to provide tight sealing and efficient regulation makes them ideal for handling potentially hazardous materials.
Conclusion
Electric butterfly control valves are integral components in modern flow control systems, offering numerous benefits such as efficient operation, low maintenance, and versatile applications across a range of industries. Their combination of mechanical simplicity and electronic control provides a powerful tool for regulating the flow of various fluids and gases in large-scale systems.
The automation capabilities enabled by the electric actuator are a game-changer, allowing for enhanced precision, ease of operation, and integration into complex systems. These valves have proven themselves indispensable in sectors like water treatment, oil and gas, HVAC, power generation, and chemicals, providing reliable performance in demanding environments.
With their compact design, ease of use, and broad adaptability, electric butterfly control valves will continue to play a crucial role in optimizing industrial processes, reducing operational costs, and improving system reliability for years to come.
As industries seek more efficient and automated solutions, electric butterfly valves remain a cornerstone of fluid control technology, providing the versatility and performance needed to meet the challenges of the future.
