What is a Pneumatic Knife Gate Valve?
On this page
Basic Understanding of Pneumatic Knife Gate Valve

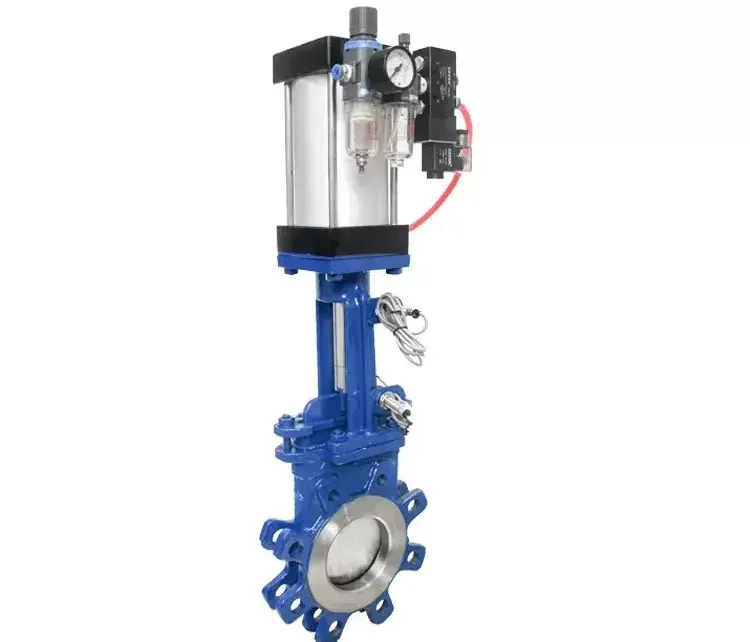

A pneumatic knife gate valve is a type of valve designed to handle the isolation and control of bulk materials and fluids in a variety of industrial processes. This valve, distinguished by its sharp-edged blade or "knife" that slices through the material, is especially effective in applications involving slurries, powders, and other challenging substances. The "pneumatic" aspect refers to the valve’s operation, which is powered by compressed air.Unlike traditional valves that use rotating or sliding mechanisms, the pneumatic knife gate control valve employs a vertically moving blade. This blade, typically made of hardened steel, is raised or lowered using pneumatic actuators. The pneumatic system allows for precise control and automation, making it suitable for systems where efficient and reliable operation is crucial.
Working Principle of Pneumatic Knife Gate Valve
The operation of a pneumatic knife gate valve is straightforward yet effective. When the valve is closed, the knife-like blade is lowered into the flow stream, cutting through the material and forming a tight seal. This cutting action is particularly useful for isolating or stopping the flow of abrasive or viscous materials that could damage other types of valves.Here’s a step-by-step breakdown of its working principle:
Actuator Control
The valve’s pneumatic actuator, which is powered by compressed air, controls the movement of the blade. When the actuator receives a signal, it moves the blade either up or down.Blade Movement
When the actuator moves the blade down, it slices through the flow of material, creating a seal that prevents any further flow. When the actuator lifts the blade, it retracts from the flow path, allowing the material to pass through.Sealing Mechanism
The blade's design ensures that when the valve is closed, it forms a tight seal against the valve body, preventing leaks. The cutting action also helps to clear any potential blockages that might occur in other types of valves.Automation and Control
Pneumatic control allows for remote and automated operation, which is beneficial in systems that require frequent valve adjustments or where manual operation would be impractical.Advantages and Disadvantages of Pneumatic Knife Gate Valve
Advantages
Effective for Abrasive Materials
The knife gate valve’s design makes it particularly well-suited for handling abrasive and slurry materials, as the blade can cut through and clear blockages more effectively than other valve types.Simple Operation
Pneumatic control systems offer straightforward and reliable operation, with the ability to control the valve remotely and automate processes.Low Maintenance
With fewer moving parts exposed to the flow stream, the pneumatic knife gate valve generally requires less maintenance compared to more complex valve types.High Durability
The hardened steel blade and robust construction ensure that the valve can withstand harsh operating conditions and prolonged use.Disadvantages
Not Ideal for Fine Flow Control
The valve is primarily designed for on/off operation and may not provide the fine control needed for precise flow regulation.Potential for Wear
The cutting blade can experience wear over time, particularly in applications with highly abrasive materials, necessitating periodic inspection and replacement.Pneumatic Dependence
The need for a reliable pneumatic system means that any failure in the air supply can impact the valve’s operation, potentially leading to system downtime.Space Requirements
Pneumatic actuators and associated components can require additional space, which may be a consideration in compact installations.Types and Applications

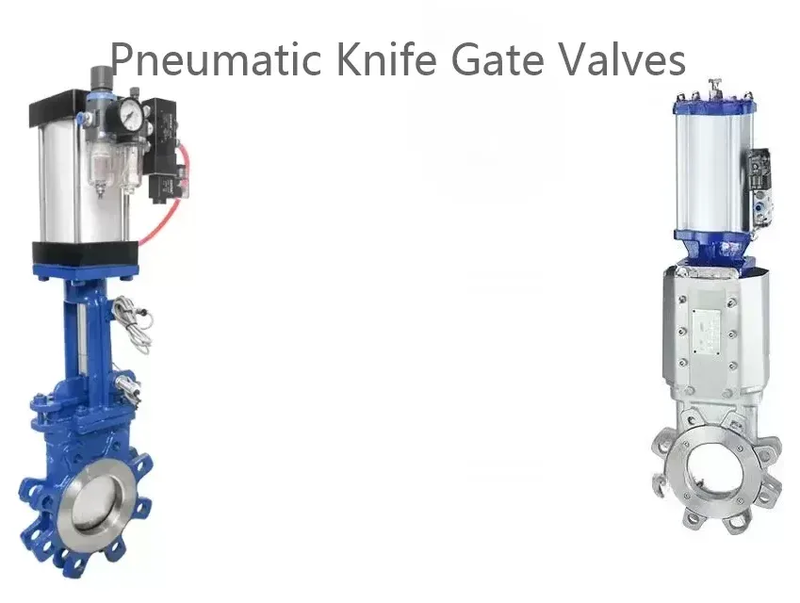

Pneumatic knife gate valves come in various configurations, each tailored for specific applications:Manual Knife Gate Valves
Though not pneumatic, these valves are operated manually and can be used in conjunction with pneumatic systems for control.Single-Acting Pneumatic Knife Gate Valves
These valves use a spring to return the blade to its default position (either open or closed) when the pneumatic pressure is released.Double-Acting Pneumatic Knife Gate Valves
These valves use pneumatic pressure for both opening and closing the blade, offering greater control over the valve’s position.Applications
Mining and Minerals Processing: Used to control the flow of slurries, ores, and other bulk materials.Wastewater Treatment: Manages the flow of sludge and other waste materials.
Paper and Pulp Industry: Handles thick slurries and fiber-laden materials.
Food and Beverage Processing: Controls the flow of powders and granular materials.
