A
solenoid control valve is a sophisticated device that plays a crucial role in various industrial and commercial applications, controlling the flow of fluids such as gases and liquids. Its ability to automate fluid control processes makes it indispensable in sectors ranging from manufacturing to HVAC systems. Understanding the functionality, construction, and applications of solenoid
control valves can provide valuable insights into their significance and widespread use.

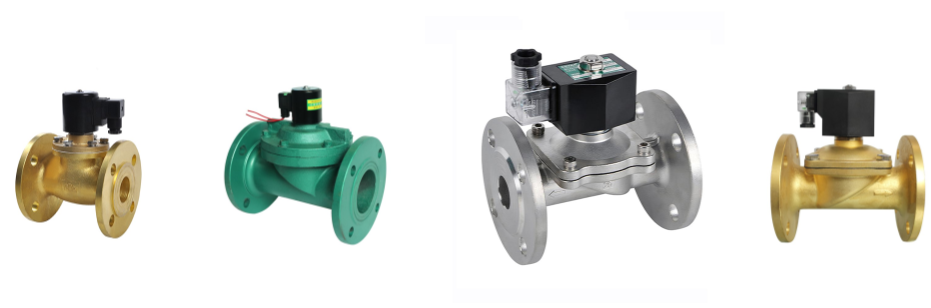

Solenoid Control Valves
At its core, a solenoid control valve consists of two main components: the solenoid and the valve. The solenoid is an electromechanical device that converts electrical energy into mechanical motion. When an electric current passes through the solenoid, it generates a magnetic field. This magnetic field then activates the valve, allowing it to control the flow of fluid.
The valve itself can be designed in various configurations, such as direct-acting, pilot-operated, or proportional. Each type serves different purposes and is chosen based on specific requirements.
In these valves, the solenoid directly opens or closes the valve. They are typically used for smaller flow rates and lower pressure systems.
These use the solenoid to control a pilot valve, which in turn operates the main valve. This type is suited for higher flow rates and pressure systems, as the pilot valve allows the main valve to be actuated with a smaller solenoid.
These provide precise control of fluid flow by varying the position of the valve in proportion to the electrical input signal, offering fine-tuned flow regulation.
The operation of a solenoid control valve can be broken down into a few key steps:
When an electric current is applied to the solenoid coil, it creates a magnetic field. This magnetic field exerts a force on a plunger or armature within the solenoid.
The magnetic force pulls or pushes the plunger, causing it to move. This movement either opens or closes the valve, depending on the valve design.
With the valve open, fluid is allowed to pass through. When the valve is closed, the fluid flow is halted. The degree to which the valve opens can be precisely controlled in proportional solenoid valves, allowing for variable flow rates.
When the electrical current is removed, the magnetic field collapses. A spring or other return mechanism then moves the plunger back to its original position, restoring the valve to its default state.
Solenoid control valves are utilized in a wide range of applications due to their reliability and efficiency. Some of the key areas where they are employed include:
In manufacturing processes, solenoid valves control the flow of air, water, and other fluids, ensuring precise operation of machinery and equipment.
Heating, ventilation, and air conditioning systems use solenoid valves to regulate the flow of refrigerants and other fluids, maintaining optimal climate control.
Solenoid valves are used in vehicles for fuel injection, emission control, and other critical functions, enhancing performance and efficiency.
In medical equipment, solenoid valves control the delivery of gases and liquids, playing a crucial role in devices such as ventilators and diagnostic machines.
Irrigation systems rely on solenoid valves to manage the distribution of water, ensuring efficient and precise watering of crops.
Solenoid control valves offer several benefits that make them a preferred choice in many applications:
The ability to control fluid flow with high accuracy is a significant advantage, particularly in applications requiring fine-tuned regulation.
Solenoid valves can be easily integrated into automated systems, allowing for remote and programmed control, reducing the need for manual intervention.
With fewer moving parts compared to other valve types, solenoid control valves are known for their durability and low maintenance requirements.
The rapid activation and deactivation of solenoid valves enable quick changes in fluid flow, essential in dynamic and time-sensitive applications.
Solenoid valves are typically compact and lightweight, making them suitable for use in systems where space is a premium.
Solenoid control valves are essential components in modern fluid control systems, offering precision, reliability, and efficiency. Their versatile applications across various industries underscore their importance in advancing automation and optimizing processes. As technology continues to evolve, solenoid control valves are likely to play an even more integral role in innovative solutions for fluid management.
