Introduction

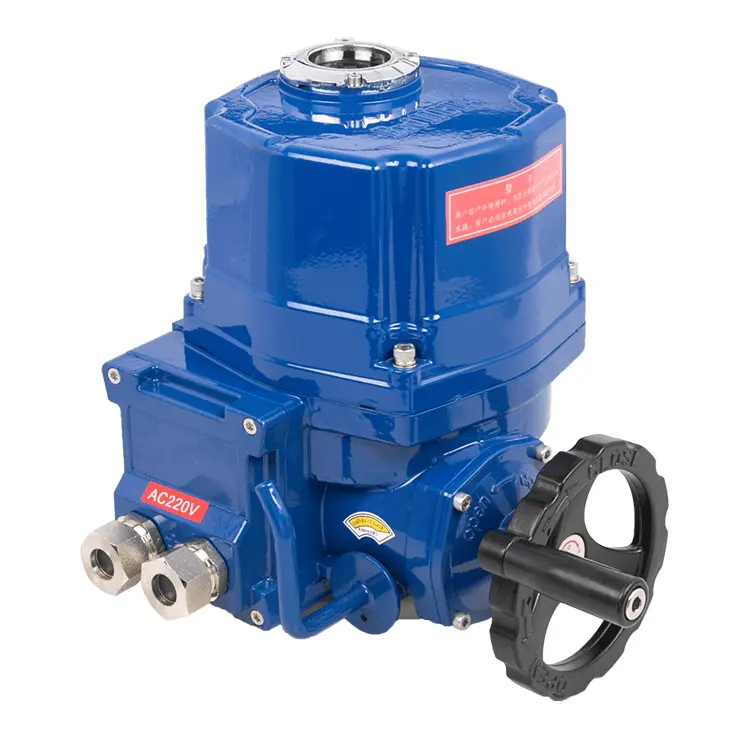

In industries where hazardous environments are a constant concern, safety and reliability are paramount. One critical component designed to operate safely in such conditions is the Explosion-Proof Electric Actuator. This specialized device is engineered to control the movement of valves, dampers, and other mechanical systems in areas where explosive gases, dust, or vapors may be present. By containing any potential internal explosions and preventing them from igniting the surrounding atmosphere, these actuators ensure safe and efficient operation in high-risk environments.
Explosion-proof electric actuators are designed to provide precise control over mechanical systems, utilizing mechanisms such as rotary or linear motion. Powered by electricity, they offer significant advantages, including remote operation, automation capabilities, and seamless integration with control systems. Their robust construction ensures durability and reliability, making them indispensable in demanding industrial applications.
How Does an Explosion-Proof Electric Actuator Work?
At its core, an explosion-proof electric actuator converts electrical energy into mechanical motion, which is then used to control the position of a valve or damper. Here’s a detailed breakdown of how these devices operate:
Power Supply
The actuator is connected to an external electrical power source, which provides the energy needed for its operation.
Signal Input
A control signal, either analog or digital, is sent to the actuator’s control unit. This signal specifies the desired position or movement of the valve.
Motor Activation
Upon receiving the control signal, the actuator’s electric motor is activated. The motor converts electrical energy into mechanical motion, typically rotational or linear.
Gearbox Transmission
The motor’s rotational motion is transmitted through a gearbox, which adjusts the torque and speed to the levels required for valve operation.
Movement Execution
The adjusted motion is transferred to the valve stem, causing the valve to open, close, or adjust to the desired position.
Feedback Loop
A position sensor continuously monitors the valve’s position and sends real-time feedback to the control unit. This ensures precise control and accurate positioning.
Limit Switch Engagement
Once the valve reaches the desired position, limit switches deactivate the motor to prevent overtravel, ensuring the system operates within safe parameters.
Key Advantages of Explosion-Proof Electric Actuators
Explosion-proof electric actuators offer a range of benefits that make them ideal for use in hazardous environments. These advantages include:
Enhanced Safety
The primary purpose of an explosion-proof actuator is to prevent the ignition of flammable gases, dust, or vapors. These devices are constructed with robust materials and feature sealed enclosures to prevent sparks or hot surfaces from coming into contact with the surrounding atmosphere. This design ensures the safety of personnel and equipment in high-risk areas.
Configurability and Feedback
Modern explosion-proof actuators are equipped with configurable feedback signals, allowing for seamless integration with automation systems. This feedback provides real-time information on valve position and status, enabling precise control and monitoring.
Superior Sealing and Protection
Explosion-proof actuators are designed to withstand harsh environmental conditions. Many models achieve an IP67 waterproof rating, which protects internal components from dust, water, and other contaminants. This ensures reliable operation even in challenging industrial settings.
Manual Operation
In the event of a power outage or emergency, many explosion-proof actuators are equipped with manual handwheels. This feature allows for manual operation, providing a backup control mechanism and ensuring continued valve functionality.
Wide Operating Temperature Range
These actuators are designed to operate within a broad temperature range, typically from -40°C to +70°C. This makes them suitable for use in various climates and industrial environments, ensuring consistent performance under extreme conditions.

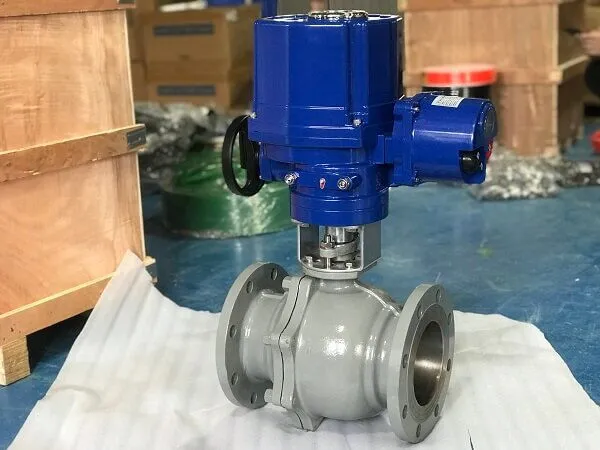

Characteristics of Explosion-Proof Electric Actuator Valves
Explosion-proof electric actuator valves are highly sought after in industries where safety and reliability are critical. These devices are particularly popular in applications such as oil and gas pipelines, chemical plants, power stations, and other hazardous environments. Here are some key characteristics that make them stand out:
Excellent Sealing Performance
The actuator’s superior sealing capabilities ensure that it can operate effectively in environments where leaks or contamination could pose significant risks. This makes it an ideal choice for industries dealing with flammable or toxic substances.
Motor Overheating Protection
Many explosion-proof actuators are equipped with built-in overheating protection mechanisms. These features prevent motor damage by automatically shutting down the actuator if it reaches unsafe temperatures.
Versatile Power Options
These actuators can be powered by a range of electrical sources, including 380V, 220V, or 110V AC power supplies. This flexibility allows them to be used in various industrial settings.
Precise Control Signals
Explosion-proof actuators can be controlled using 4-20mA current signals or 0-10V DC voltage signals. This enables precise control over valve positioning, ensuring optimal performance in automated systems.
Automatic Control Capabilities
By integrating with control systems, explosion-proof actuators can automatically adjust valve positions based on real-time data. This enhances efficiency and reduces the need for manual intervention.
Applications of Explosion-Proof Electric Actuators
Explosion-proof electric actuators are used in a wide range of industries and applications, particularly those involving hazardous environments. Some of the most common applications include:
Oil and Gas Industry
In oil refineries, pipelines, and offshore drilling platforms, explosion-proof actuators are used to control valves that regulate the flow of crude oil, natural gas, and other flammable substances. Their robust design ensures safe operation in these high-risk environments.
Chemical Plants
Chemical manufacturing facilities often handle volatile and toxic materials. Explosion-proof actuators are used to control valves in processes such as mixing, distillation, and storage, ensuring safe and efficient operation.
Power Generation
In power plants, explosion-proof actuators are used to control valves in boilers, turbines, and other critical systems. Their ability to operate reliably in high-temperature and high-pressure environments makes them ideal for this application.
Pharmaceutical Industry
The production of pharmaceuticals often involves the use of hazardous chemicals and gases. Explosion-proof actuators are used to control valves in processes such as sterilization, fermentation, and chemical synthesis.
Mining Operations
In mining, explosion-proof actuators are used to control ventilation systems, conveyor belts, and other equipment in areas where explosive dust or gases may be present.
Conclusion
Explosion-proof electric actuators are essential components in industries where safety and reliability are paramount. Their ability to operate in hazardous environments, combined with their precise control capabilities, makes them indispensable in applications ranging from oil and gas to chemical manufacturing and power generation. By understanding how these devices work and their key advantages, industries can make informed decisions about their use, ensuring safe and efficient operation in even the most challenging conditions.
As technology continues to advance, explosion-proof electric actuators are likely to become even more sophisticated, offering enhanced safety features, greater configurability, and improved integration with automation systems. For industries operating in hazardous environments, investing in high-quality explosion-proof actuators is not just a matter of efficiency—it’s a critical step toward ensuring the safety of personnel and equipment.
