What is Butterfly Control Valves?
On this page
Butterfly control valves are a critical component in various industrial systems, providing efficient regulation of fluid flow. Their unique design and functionality make them a popular choice for controlling the flow of gases, liquids, and slurries in a wide range of applications. This article delves into the design, components, types, selection criteria, advantages, disadvantages, applications, and maintenance of butterfly control valves, offering a comprehensive understanding of their role in industrial settings.
Valve Body: This houses the internal components and connects to the pipeline.
Disc: Positioned in the center of the pipe, the disc is the component that rotates to control fluid flow.
Stem: Attached to the disc, the stem transfers the actuation force to the disc.
Actuator: This mechanism, which can be manual, pneumatic, electric, or hydraulic, operates the stem and disc to regulate the valve.
The disc's rotational position determines the valve's open or closed status. When the disc is parallel to the flow, the valve is fully open; when it is perpendicular, the valve is closed.
Proper sizing ensures optimal performance, efficiency, and longevity of the valve.
Torque Requirements: Larger sizes or higher pressures may require significant actuation torque.
Inspection: Regularly check for signs of wear, corrosion, and leakage.
Lubrication: Ensure that moving parts are adequately lubricated to prevent sticking and wear.
Tightening: Check and tighten all connections and fasteners.
Cleaning: Remove any debris or buildup that could impede valve operation.
Seal Replacement: Replace seals and gaskets as needed to maintain a proper seal.
Troubleshooting common issues involves addressing problems such as leakage, sticking or hard operation, and inadequate flow control. Properly diagnosing and resolving these issues can prevent system downtime and extend the valve's service life.
Introduction

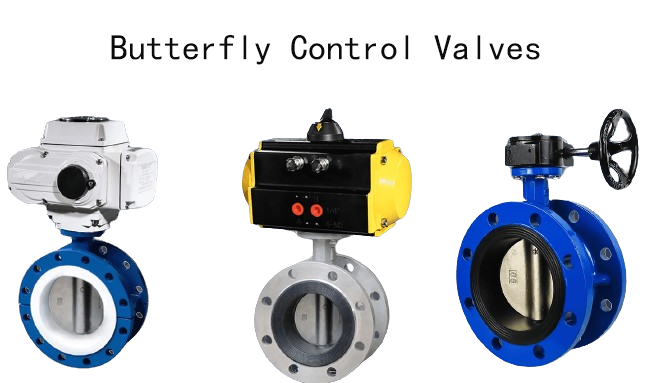

Butterfly control valves are quarter-turn valves used to regulate or isolate fluid flow. They operate by rotating a disc within the valve body, which in turn adjusts the flow of the medium. These valves are favored for their compact design, ease of operation, and reliability. They are commonly employed in industries such as water treatment, chemical processing, and power generation due to their ability to handle large volumes of fluids with minimal pressure drop.Design and Components of Butterfly Control Valves
The design of a butterfly control valve is relatively simple yet highly effective. The primary components include the valve body, disc, stem, and actuator.Valve Body: This houses the internal components and connects to the pipeline.
Disc: Positioned in the center of the pipe, the disc is the component that rotates to control fluid flow.
Stem: Attached to the disc, the stem transfers the actuation force to the disc.
Actuator: This mechanism, which can be manual, pneumatic, electric, or hydraulic, operates the stem and disc to regulate the valve.
The disc's rotational position determines the valve's open or closed status. When the disc is parallel to the flow, the valve is fully open; when it is perpendicular, the valve is closed.
Types of Butterfly Control Valves
Butterfly control valves come in several types, each suited for specific applications and requirements:1. Concentric Butterfly Valve
The disc is positioned in the center of the pipe, with the stem running through the middle. This design is simple and cost-effective, suitable for low-pressure applications.2. Double Offset Butterfly Valve
The stem is offset from the center of the disc and the valve body, reducing the contact between the disc and the seat, thereby minimizing wear and providing a tighter seal.3. Triple Offset Butterfly Valve
Incorporates two offsets similar to the double offset valve, with an additional angular offset in the seating surface. This design provides a metal-to-metal seal, ideal for high-pressure and high-temperature applications.Selection and Sizing of Butterfly Control Valves
Selecting and sizing butterfly control valves involves several critical factors:Flow Characteristics
Understanding the flow rate and pressure requirements is essential for choosing the appropriate valve size and type.Media Compatibility
The materials used in the valve must be compatible with the fluid to prevent corrosion and wear.Operating Conditions
Consider the temperature, pressure, and potential for cavitation or flashing in the system.Actuation Method
Determine whether manual, pneumatic, electric, or hydraulic actuation is needed based on the application's control requirements.Proper sizing ensures optimal performance, efficiency, and longevity of the valve.
Advantages of Butterfly Control Valves
Butterfly control valves offer several advantages:Compact and Lightweight
Their design requires less space and support compared to other valve types.Cost-Effective
Generally more affordable due to simpler construction and lower material usage.Quick Operation
The quarter-turn action allows for rapid opening and closing.Low Maintenance
Fewer moving parts result in less wear and reduced maintenance requirements.Versatility
Suitable for a wide range of applications and media types.Disadvantages of Butterfly Control Valves
Despite their benefits, butterfly control valves also have some drawbacks:Limited Pressure Range
Not ideal for very high-pressure applications.Potential for Leakage
Less effective in providing a bubble-tight seal compared to other valve types.Disc Obstruction
The disc remains in the flow path even when fully open, which can cause a slight obstruction and pressure drop.Torque Requirements: Larger sizes or higher pressures may require significant actuation torque.
Applications of Butterfly Control Valves
Butterfly control valves are widely used across various industries:Water Treatment
For controlling the flow of water and wastewater.Chemical Processing
To manage the flow of corrosive and hazardous chemicals.Power Generation
Used in cooling systems, fuel handling, and steam distribution.HVAC Systems
For regulating air and water flow in heating and cooling systems.Food and Beverage
Suitable for handling sanitary processes and clean-in-place systems.Maintenance and Troubleshooting of Butterfly Control Valves
Regular maintenance ensures the longevity and optimal performance of butterfly control valves. Key maintenance tasks include:Inspection: Regularly check for signs of wear, corrosion, and leakage.
Lubrication: Ensure that moving parts are adequately lubricated to prevent sticking and wear.
Tightening: Check and tighten all connections and fasteners.
Cleaning: Remove any debris or buildup that could impede valve operation.
Seal Replacement: Replace seals and gaskets as needed to maintain a proper seal.
Troubleshooting common issues involves addressing problems such as leakage, sticking or hard operation, and inadequate flow control. Properly diagnosing and resolving these issues can prevent system downtime and extend the valve's service life.
