Our Pneumatic V Sector Ball Control Valve is a robust, compact solution designed to meet stringent process flow demands. Ideal for commercial and industrial applications, it features a high-performance modulating ball valve, a durable pneumatic actuator, and an advanced positioner.
At its core is a heavy-duty, fully encapsulated 3-piece stainless steel ball valve with 50% stainless steel / 50% PTFE filled seats, ensuring reliable performance and longevity. This valve excels in maintaining flow rates in continuous or batch processing, controlling liquid filling line pressures, and adjusting heat exchanger temperatures with steam feed lines.
Setting up and programming is straightforward with the self-auto tune positioner, accommodating 4-20mA or 0-10 volt input signals. Available with a choice of 30°, 60°, or 90° V-notch balls, it offers versatility to suit various flow control needs.
As an exporter of wafer-style control valves, we offer versatile on/off functionality in sizes ranging from 1 to 2 inches (DN25-DN50), suitable for Class 150-300 LB applications. Constructed from stainless steel or carbon steel with a gasket seal, these valves feature an 80mm stainless steel piston actuator. They come standard with the Gemu cPOS smart positioner for precise control applications; however, for on/off service, they can be supplied without a positioner. The "T" slot design connection allows for quick and easy reversal of function, switching between reverse acting and direct acting configurations as needed. Ideal for sizing selection and ensuring efficient operation across various industrial settings.
This high-flow ball control valve is engineered for both on/off and throttling applications, accommodating high flow rates with its V-ball design. Available in sizes ranging from 2 to 12 inches and pressure ratings from Class 150 to 600 LB, it is constructed from ASTM A352 LCC, ASTM A216 WCB, or ASTM A351 CF8M materials. The valve features a standard ball with a triangular wedge shape, enabling precise control and reliability in diverse industrial settings. Compatible with various actuators, it ensures versatile performance in both on/off and throttling operations.
Designed for precise control of steam, gases, and diverse liquid applications, these high-pressure globe and angle control valves ensure superior pressure and flow management. Engineered specifically for the demanding environments of the process control industry, they feature robust metal seats, cage guiding, and a quick-change trim mechanism. Their push-down-to-close valve plug action, coupled with balanced valve plugs, enhances operational reliability. Available in sizes ranging from 2 to 6 inches (DN50-DN150), with pressure ratings from Class 900 to 2500 LB, and constructed from ASTM A352 LCC or ASTM A216 WCB materials, these valves offer flexibility and durability. Ideal for applications requiring precise regulation under high pressure, they are equipped with flange ends to meet industry standards.
This globe control valve features integral end connections, post guiding, and a quick-change trim design. Ideal for chemical and hydrocarbon processing, it excels in handling viscous, non-lubricating, and other challenging fluids. The valve accommodates various end connection styles, including flanged Class 150, 300, and 600 raised face, ring-type joint, or flat face, adhering to ASME B16.5 standards. Additionally, screwed connections meet Class 600 specifications as per the latest ASME B16.34 edition, ensuring versatile application and robust performance.
Introducing our Cage Guided Globe Control Valves, specifically designed for superior pressure and flow regulation in steam, gas, and various liquid processes. These single-seated, anti-cavitation valves conform to ASME B16.34 standards and are available in ASTM A352 LCC and ASTM A216 WCB materials.
With flanged bodies rated from 150 to 900 LB, these valves feature a globe-style body with cage guiding, clamped seat rings, and push-down-to-close valve plug action. They are equipped with large end connections and expanded internal flow cavities, offering sizes ranging from 8x6 to 24x20 inches, where the first number indicates the line size and the second the trim and bonnet size.
Ideal for a wide range of temperatures and pressure drops, these valves ensure reliable performance with a balanced valve plug and metal-to-metal seating, making them perfect for general control applications.

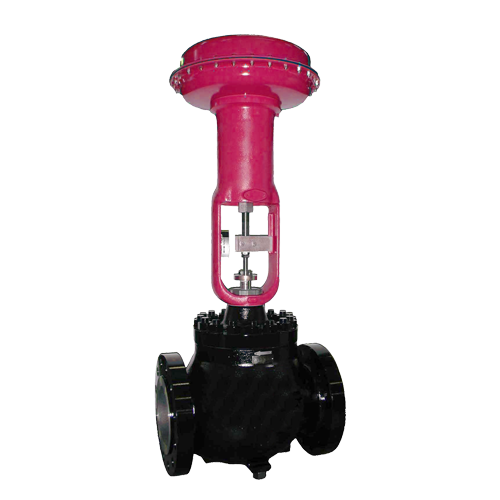

As a leading manufacturer of Single-Port Globe Control Valves, we offer low leakage, cage-guided valves specifically designed for general control applications across a wide range of temperatures and pressure drops. Our 8-inch valves, rated Class 150-600 LB and compliant with ASME B16.34, are constructed from durable ASTM A352 LCC and ASTM A216 WCB materials, ensuring robust performance and longevity.
These valves feature an upper piston ring seal and metal-to-metal seating, making them ideal for applications demanding low leakage rates. For applications requiring tight shutoff, our valves are available with composition seating (TFE). Alternatively, for higher temperature applications, metal-to-metal seating provides enhanced durability and reliability. With flanged ends for secure installation, our Single-Port Globe Control Valves deliver exceptional control and performance, meeting stringent industry standards.
Our Bellows Seal Control Valves, exported from China, ensure leak-free operation with a short stroke design. Available in sizes ranging from 1/2 to 2 inches (DN15-DN50), and with a Class 150 LB rating, these valves are constructed from durable materials like ductile iron and bronze. Featuring flange ends for secure installation, they are ideal for applications requiring reliable fluid control while minimizing operational movement. Trusted for their robust performance and enhanced sealing capabilities, these valves meet stringent industry standards, making them suitable for a wide range of industrial applications.
As a leading provider of Single Port Globe Control Valves, we offer balanced, cage-guided valves designed for precise control in industrial applications. Available in sizes ranging from 1 to 6 inches (DN25-DN150), with pressure ratings from Class 150 to 600 LB, these valves are crafted from ASTM A352 LCC and ASTM A216 WCB materials for durability and performance reliability. Featuring flange ends, they ensure secure installation and compatibility with various piping systems. The balanced design allows for efficient operation with smaller actuators, optimizing cost-effectiveness. These valves provide versatile flow control options, including equal percentage, linear, and quick opening characteristics, suitable for handling liquids, gases, and steam. With enhanced stability and the capability to manage high-pressure drops, our Single Port Globe Control Valves ensure reliable performance and tight shutoff, making them ideal for demanding industrial environments.

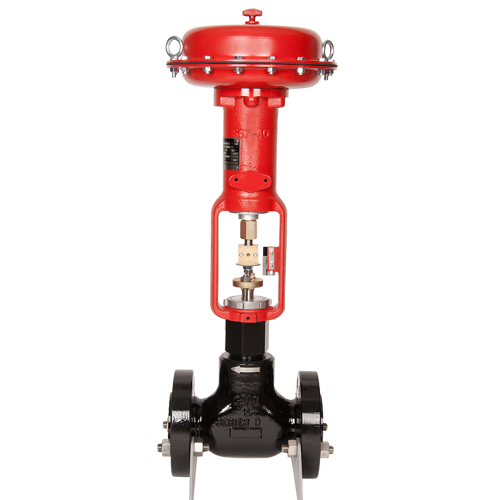

As a trusted Globe Angle Control Valve supplier, we provide cage-guided, unbalanced valves designed for precision control. Available in sizes ranging from 1 to 2 inches (DN25-DN50), and with pressure ratings from Class 150 to 2500 LB, these valves are constructed from ASTM A216 WCB for robust performance. Featuring flanged weld ends, they ensure secure installation in diverse industrial settings. The design incorporates reliable cage guidance for stable operation and precise flow regulation. Ideal for various applications requiring accurate control of liquids and gases, these valves offer durability and versatility. Whether managing high pressures or demanding environments, our Globe Angle Control Valves deliver consistent performance and reliable sealing for enhanced operational efficiency.
