Pneumatic ball valves combine the simplicity of a ball mechanism with the efficiency of pneumatic actuation, offering rapid response, automation readiness, and minimal maintenance. They are widely applied in industries where high performance, durability, and automation are essential. This article delves deep into the operation, advantages, applications, connection methods, selection criteria, maintenance, troubleshooting, and future trends of pneumatic ball valves.

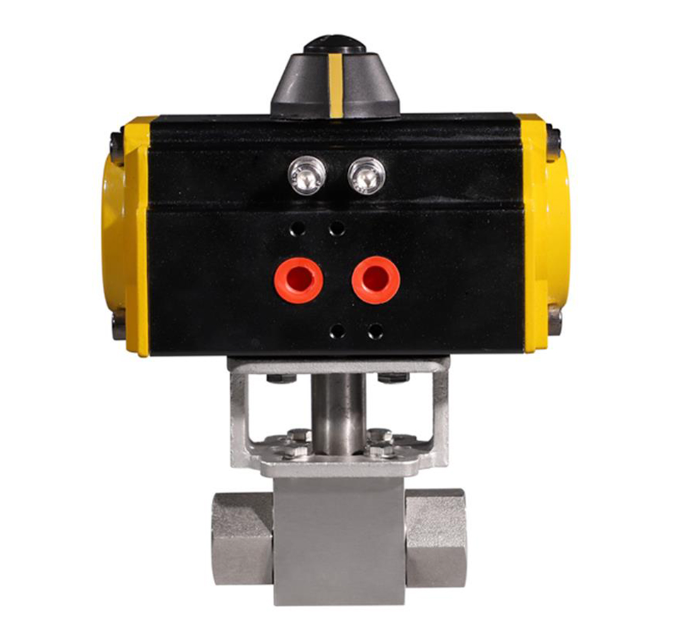

A pneumatic ball valve is a type of valve that uses compressed air to rotate a spherical disc, or ball, with a central bore, allowing or blocking fluid flow. Its design is inherently simple but highly effective for a range of industrial tasks.
Ball mechanism: The central bore aligns with the pipeline for fluid to pass when open, and rotates perpendicular to block flow when closed.
Pneumatic actuation: Compressed air drives the valve’s rotation, allowing rapid and automated operation.
Automation capability: Pneumatic ball valves are commonly integrated into automated systems with solenoids, limit switches, and positioners for precise control.
Unlike manual valves, pneumatic versions eliminate the need for constant human intervention and provide consistent performance even in high-pressure or hazardous environments.
The operation of a pneumatic ball valve involves three core stages: open, actuation, and closed positions.
The ball’s bore aligns with the pipeline.
Fluid passes freely through the valve.
Compressed air enters the actuator, causing expansion or rotation, and holds the valve open.
The actuator receives a signal from the control system.
Compressed air pushes pistons or diaphragms within the actuator, producing rotary motion.
The ball rotates 90°, moving toward the closed position.
The ball’s bore becomes perpendicular to the pipeline, blocking flow completely.
A tight seal is created, ensuring zero leakage even under high pressure.
The simplicity of this mechanism enables fast actuation, minimal wear, and reliable shut-off, making pneumatic ball valves ideal for critical industrial processes.
Pneumatic ball valves provide multiple advantages over manual or electrically actuated valves:
Rapid Operation: Pneumatic actuators allow valves to open or close in seconds, enabling swift responses to process changes or emergencies.
Durability: Designed to withstand high pressure, corrosive fluids, and extreme temperatures.
Low Maintenance: Fewer moving parts reduce wear and tear, lowering maintenance costs and plant downtime.
Versatility: Suitable for water treatment, chemical processing, food and beverage, pharmaceutical manufacturing, HVAC systems, and oil & gas pipelines.
Automation-Ready: Can integrate with control systems for remote monitoring and automated process control.
Safety: Fail-safe designs (spring-return) ensure the valve defaults to a safe position during air loss or system failure.
These advantages make pneumatic ball valves an indispensable component in modern industrial operations.
The connection type of a pneumatic ball valve plays a crucial role in installation efficiency, sealing performance, and overall maintenance convenience. Selecting the appropriate connection method depends on factors such as pipeline size, pressure, temperature, and the specific requirements of the application. The five most commonly used connection methods are flanged, threaded, tri-clamp, wafer-type, and welded connections. Each offers distinct advantages and considerations for industrial use.
Flanged connections involve attaching the valve to the pipeline using two flanges, secured with bolts and a gasket. This method is widely used in large-diameter pipelines and high-pressure systems.
Advantages: Flanged valves are easy to install and remove, providing excellent sealing performance. Maintenance or replacement is simplified, as the valve can be unbolted without disturbing the pipeline.
Limitations: They are bulkier and generally more expensive than other connection types. At extremely high temperatures, exceeding 350°C, bolts and gaskets may loosen, which can compromise the seal.
Applications: Flanged pneumatic ball valves are ideal for large pipelines, chemical processing plants, and high-pressure industrial systems where reliability and ease of maintenance are priorities.

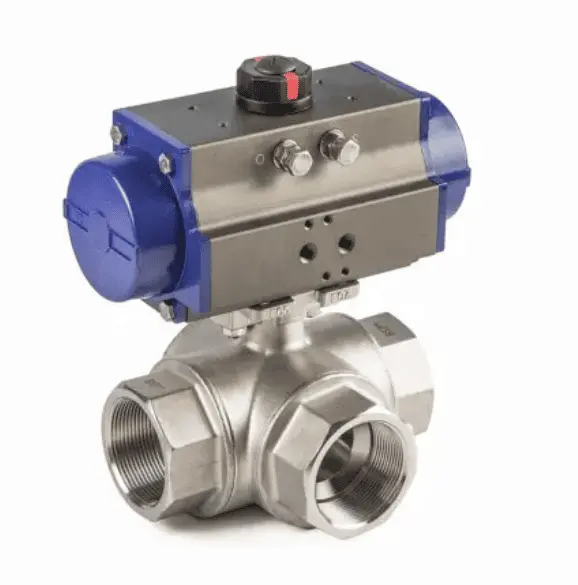

Threaded connections use internal or external threads on the valve ends to screw directly into the pipeline. This is a simple and cost-effective method suitable for smaller-diameter pipelines.
Advantages: Threaded valves are economical, easy to install, and require minimal tools. They are particularly suitable for small valves and low-flow applications.
Limitations: This connection type is not ideal for high-pressure systems or large-diameter pipelines, as the threads may be prone to leakage under heavy loads.
Applications: Threaded pneumatic ball valves are commonly used in water lines, small chemical systems, and low-pressure pipelines where compact and budget-friendly solutions are needed.
Tri-clamp connections use a clamp and gasket system to attach the valve, allowing quick assembly and disassembly.
Advantages: This connection type is highly hygienic, fast to install, and easy to clean, making it perfect for sanitary applications in the food, beverage, and pharmaceutical industries.
Limitations: Tri-clamp valves are generally limited to low-pressure systems and are not suitable for high-pressure or heavy-duty pipelines.
Applications: Tri-clamp pneumatic ball valves are widely used in breweries, dairy processing, pharmaceutical production, and other industries where hygiene and frequent cleaning are critical.
Wafer-type valves are positioned between two flanges and clamped in place with bolts. This design allows for compact installation with minimal space requirements.
Advantages: Wafer-type valves are lightweight, cost-effective, and easy to align during installation. They also reduce the need for extensive flange modifications.
Limitations: The design is limited to pipelines with compatible flange configurations and may not be suitable for very high-pressure applications.
Applications: These valves are ideal for moderate-pressure pipelines in chemical plants, water treatment facilities, and HVAC systems where space-saving installation is required.
Welded connections involve permanently joining the valve ends to the pipeline using butt-welding techniques.
Advantages: Welded valves offer the strongest and most leak-proof connection, capable of withstanding high pressures and temperatures. They provide excellent durability and reliability in demanding industrial environments.
Limitations: These valves are difficult to remove or replace, making them more suitable for long-term installations rather than systems requiring frequent maintenance.
Applications: Welded pneumatic ball valves are commonly used in thermal power plants, nuclear energy projects, petrochemical pipelines, and other high-temperature or high-pressure applications where permanent reliability is essential.
Pneumatic actuators provide the power to rotate the ball. Two main types are used:
Uses air to move the valve in one direction; a spring returns it to the default position.
Benefit: Fail-safe operation in case of air supply failure.
Air pressure moves the valve in both directions.
Benefit: More precise control, ideal for automated processes.
Additional enhancements may include solenoid control, positioners, and limit switches for real-time monitoring.
Pneumatic ball valves serve a wide variety of industries:
Oil & Gas: Pipeline shut-off, subsea platforms, gas distribution networks.
Chemical Processing: Corrosive and abrasive fluid handling, acids, solvents.
Water Treatment: Filtration, pumping, wastewater control, and chemical dosing.
Food & Beverage: Hygienic tri-clamp valves in brewing, dairy, and beverage bottling.
Pharmaceuticals: Sterile and clean-in-place (CIP) processes.
Power Generation: High-pressure steam, condensate, and cooling water circuits.
HVAC Systems: Automated control of heating, ventilation, and cooling loops.
Case studies from large-scale chemical plants show pneumatic ball valves can reduce downtime by up to 30% compared to manually operated valves due to their quick response and low maintenance requirements.
Manual Ball Valves: Pneumatic versions eliminate manual operation, improve safety, and allow automation.
Electric Ball Valves: Pneumatic valves operate faster and are safer in explosive environments.
Butterfly Valves: Ball valves provide tighter shut-off but are heavier and costlier.
Globe Valves: Better for throttling flow, but ball valves provide fast shut-off with minimal pressure drop.
Even with minimal maintenance needs, regular checks ensure long-term reliability:
Routine Inspection: Examine actuator, seals, and ball surface.
Air Supply Quality: Clean, dry air prevents actuator damage.
Lubrication: Follow manufacturer guidelines to maintain smooth operation.
Cycle Testing: Operate valves periodically to prevent sticking.
Seal Replacement: Replace worn O-rings and seats if leakage occurs.
Troubleshooting Common Issues:
Valve Stuck: Check air supply, actuator alignment, or ball blockage.
Leakage: Inspect seat, gasket, and flange connections.
Slow Actuation: Check actuator pressure and pneumatic line restrictions.
Proper maintenance ensures long-lasting performance, reduces downtime, and lowers operational costs.
Selecting the right valve is crucial for operational efficiency:
Valve Type: Two-way, three-way, or multi-port configurations.
Actuator Selection: Single-acting or double-acting based on safety and control requirements.
Material Compatibility: Stainless steel, carbon steel, bronze, or brass depending on media and temperature.
Pressure and Temperature Ratings: Ensure the valve can withstand system demands.
Automation Needs: Integration with control systems, solenoids, or positioners.
Maintenance Considerations: Easy disassembly for cleaning or repair.
Application Environment: Indoor vs. outdoor, exposure to corrosive media, sanitary or hazardous environments.
The valve industry is evolving rapidly due to technological and environmental demands:
Smart Valves: IoT integration for remote monitoring, predictive maintenance, and real-time diagnostics.
Energy-Efficient Actuators: Reduced air consumption for lower operating costs.
Sustainable Materials: Lead-free and eco-friendly alloys to meet environmental standards.
Enhanced Safety Features: Fail-safe designs, emergency shut-off capabilities, and explosion-proof actuators.
Global Expansion: Increased adoption in emerging markets driven by industrial automation and renewable energy projects.
As industries adopt digitalization and automation, pneumatic ball valves are poised to become even more integral to industrial operations.
Pneumatic ball valves are a cornerstone of fluid control systems across a broad spectrum of industries. Their rapid operation, durability, minimal maintenance, and versatility make them indispensable for modern automated systems.
By understanding their working principles, connection methods, applications, and maintenance needs, businesses can optimize processes, improve safety, and reduce operational costs.
With technological advancements, including smart valve integration, energy-efficient actuators, and sustainable materials, pneumatic ball valves will continue to play a vital role in industrial automation, process optimization, and future-ready operations.
Choosing the right valve, tailored to specific industrial needs, ensures efficient, safe, and uninterrupted flow control, solidifying the position of pneumatic ball valves as a trusted solution in fluid handling worldwide.
