Choosing the Right Electric Actuator for Your Valve
On this page
In the realm of industrial automation, electric actuators play a pivotal role in controlling valve operations. Selecting the right electric actuator for your control valve is crucial for ensuring efficient, reliable, and cost-effective operation. This guide explores the essential factors to consider when choosing an electric actuator and delves into two main types: Multi-Turn Electric Actuators and Linear Output Electric Actuators.
Multi-turn electric actuators are designed to provide multiple rotations to open or close a valve. They are ideal for valves that require continuous rotation, such as gate or globe valves.
Applications:
Gate Valves: Used for isolation applications in pipelines, requiring multiple turns to fully open or close.
Globe Valves: Used for regulating flow in a pipeline, also needing multiple turns for precise control.
Precise Control: Allows for fine adjustments in valve position, making them suitable for flow regulation.
High Torque: Capable of generating high torque, making them ideal for large valves.
Durability: Built to withstand harsh operating conditions, ensuring longevity.
Disadvantages:
Size and Weight: Typically larger and heavier than other types, which may be a limitation in space-constrained installations.
Complexity: More complex design can lead to higher maintenance requirements.
Linear output electric actuators provide linear motion, making them suitable for valves that require linear movement, such as globe, gate, and diaphragm valves.
Applications:
Globe Valves:
Used for flow regulation, requiring linear motion to adjust the valve position precisely.
Gate Valves: Though primarily operated by multi-turn actuators, some gate valves use linear actuators for specific applications.
Diaphragm Valves: Commonly used in industries requiring sanitary conditions, such as food and pharmaceuticals, where precise linear movement is necessary.
Advantages:
Direct Motion: Provides direct linear movement, making them highly effective for valves that require linear actuation.
Compact Design: Generally more compact and lighter than multi-turn actuators, making them suitable for installations with limited space.
Simplified Mechanics: Fewer moving parts compared to multi-turn actuators, which can reduce maintenance needs and increase reliability.
Disadvantages:
Limited to Linear Motion: Cannot be used for valves requiring rotational motion, limiting their applicability.
Lower Torque: Typically produce less torque compared to multi-turn actuators, which can restrict their use to smaller or less demanding applications.
Understanding Electric Actuators
Electric actuators are devices that convert electrical energy into mechanical motion to operate valves. They are preferred in many industries due to their precision, ease of integration with control systems, and low maintenance requirements compared to pneumatic or hydraulic actuators. However, selecting the right actuator involves understanding your specific application needs and the characteristics of different actuator types.Key Considerations for Choosing an Electric Actuator
Before diving into the types of electric actuators, it’s essential to consider several key factors:1. Valve Type
The type of valve you are using (e.g., gate, globe, ball, or butterfly) significantly influences the choice of actuator. Different valves require different types of motion – rotational or linear – which determines the actuator type.2. Torque and Thrust Requirements
Determine the amount of torque or thrust needed to operate the valve. This is crucial for ensuring the actuator can handle the load without failure.3. Operating Environment
Consider environmental factors such as temperature, humidity, and exposure to corrosive substances. Actuators must be rated for the specific conditions they will operate in.4. Control and Integration
Assess how the actuator will integrate with your control system. Features like position feedback, communication protocols, and control options (on/off, modulating) are important.5. Power Supply
Ensure the actuator is compatible with the available power supply. Electric actuators come in various voltage ratings, so match this with your facility’s electrical system.Types of Electric Actuators
Multi-Turn Electric Actuator
Description:Multi-turn electric actuators are designed to provide multiple rotations to open or close a valve. They are ideal for valves that require continuous rotation, such as gate or globe valves.
Applications:
Gate Valves: Used for isolation applications in pipelines, requiring multiple turns to fully open or close.
Globe Valves: Used for regulating flow in a pipeline, also needing multiple turns for precise control.

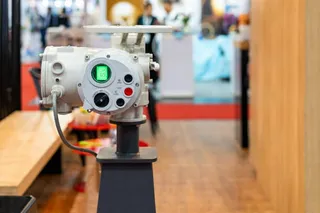

Multi-turn Electric Actuator for Gate Valve
Advantages:Precise Control: Allows for fine adjustments in valve position, making them suitable for flow regulation.
High Torque: Capable of generating high torque, making them ideal for large valves.
Durability: Built to withstand harsh operating conditions, ensuring longevity.
Disadvantages:
Size and Weight: Typically larger and heavier than other types, which may be a limitation in space-constrained installations.
Complexity: More complex design can lead to higher maintenance requirements.
Linear Output Electric Actuator
Description:Linear output electric actuators provide linear motion, making them suitable for valves that require linear movement, such as globe, gate, and diaphragm valves.
Applications:
Globe Valves:
Used for flow regulation, requiring linear motion to adjust the valve position precisely.
Gate Valves: Though primarily operated by multi-turn actuators, some gate valves use linear actuators for specific applications.
Diaphragm Valves: Commonly used in industries requiring sanitary conditions, such as food and pharmaceuticals, where precise linear movement is necessary.

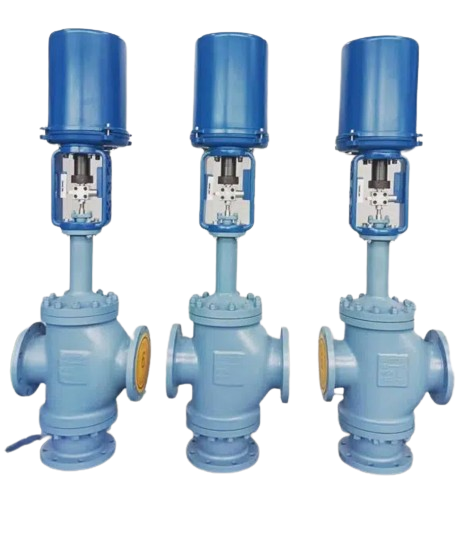

Linear Output Electric Actuator for Double Seat Control Valve
Advantages:
Direct Motion: Provides direct linear movement, making them highly effective for valves that require linear actuation.
Compact Design: Generally more compact and lighter than multi-turn actuators, making them suitable for installations with limited space.
Simplified Mechanics: Fewer moving parts compared to multi-turn actuators, which can reduce maintenance needs and increase reliability.
Disadvantages:
Limited to Linear Motion: Cannot be used for valves requiring rotational motion, limiting their applicability.
Lower Torque: Typically produce less torque compared to multi-turn actuators, which can restrict their use to smaller or less demanding applications.
