Introduction

The eccentric rotary control valve is a specialized valve designed to control the flow of fluids in various industrial applications, providing precision and reliability. This valve type combines the features of rotary control with an eccentric plug, resulting in enhanced sealing and minimal leakage. It is particularly effective in managing difficult fluids, such as those that are erosive, coking, or abrasive, and can offer either throttling control or on/off operation. This guide delves into the structure, features, and applications of eccentric rotary control valves, highlighting their benefits across different industries.

What is an Eccentric Control Plug Valve?

An eccentric control plug valve is a type of rotary control valve in which the plug, a flow-restricting component, follows an eccentric path during its rotation. This means that the plug doesn’t contact the seat until it is close to the shutoff position. When the plug rotates, it “cams” into the seat, and the seating surfaces dynamically align to provide an effective seal and shutoff.

Due to this unique motion, eccentric plug valves are also sometimes referred to as rotary globe valves. The key characteristic of this valve is its ability to regulate flow while minimizing wear, ensuring high-performance sealing, and achieving a tight shutoff. Eccentric rotary control valves are often used in environments where traditional valves may struggle, such as with highly erosive or abrasive fluids.

Common Applications of Eccentric Rotary Control Valves

Eccentric rotary control valves are widely used in industries that handle tough fluids or require precise flow control. The key applications include:

1. Erosive Fluids

Eccentric plug valves are highly effective in controlling erosive fluids, such as slurries, abrasive liquids, and corrosive chemicals. Their design minimizes wear by reducing the contact between the plug and the seat during operation.

2. Coking Fluids

In industries like petroleum refining, where fluids may harden or form coke deposits, eccentric rotary valves provide superior control, maintaining flow even under difficult conditions.

3. Slurry Handling

Due to their robust design, eccentric rotary control valves are ideal for slurry applications, such as in the mining industry, where the handling of liquids mixed with solid particles is common. The smooth flow path and metal trim components of these valves help to reduce wear and ensure reliability.

4. High-Pressure Systems

In power generation and pulp and paper industries, where systems often operate at high pressures, these valves offer reliable performance under demanding conditions. Their sealing capability and reduced leakage make them highly effective for maintaining process stability.

Reverse Flow Advantage

In certain applications, particularly those involving erosive fluids, the flow direction of the eccentric rotary control valve is an important consideration. The recommended flow direction for these valves is with the shaft upstream, meaning the fluid flows against the direction of the valve shaft’s motion.

This configuration offers several advantages:

Reduced Erosion

The high-velocity fluid tends to be isolated within the port or outlet area, which reduces the potential for erosion of the valve seat and trim components.

Enhanced Protection

In erosive applications, the use of erosion-resistant materials for the seat ring and retainer is common. These materials are better able to withstand the abrasive effects of the flowing fluid, extending the lifespan of the valve.

Easier Maintenance

With the shaft upstream, the valve's components are protected, and maintenance or servicing is made easier due to the strategic design, which minimizes wear.

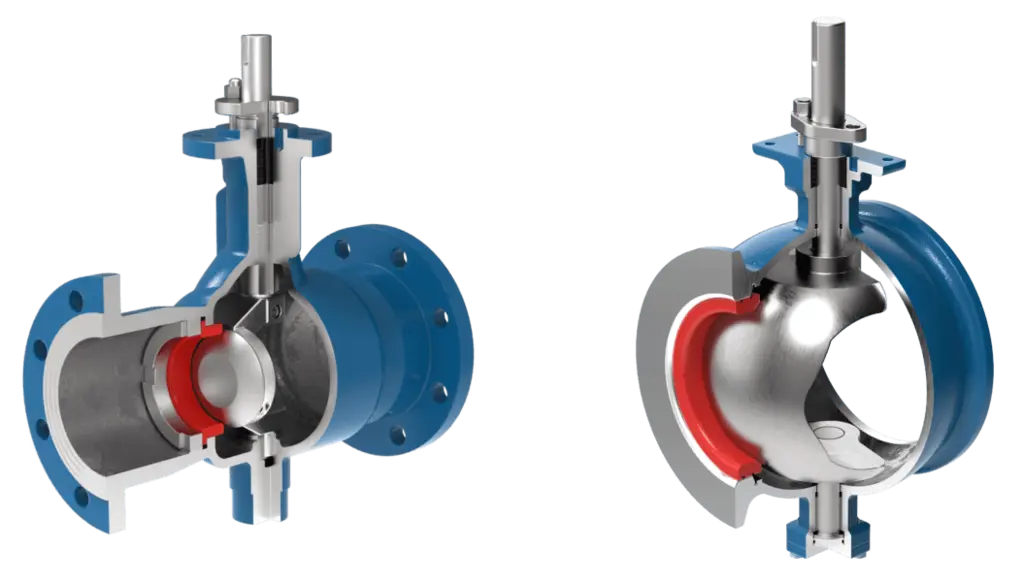

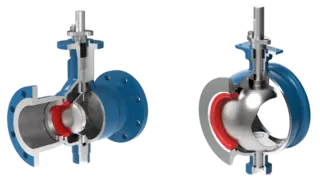

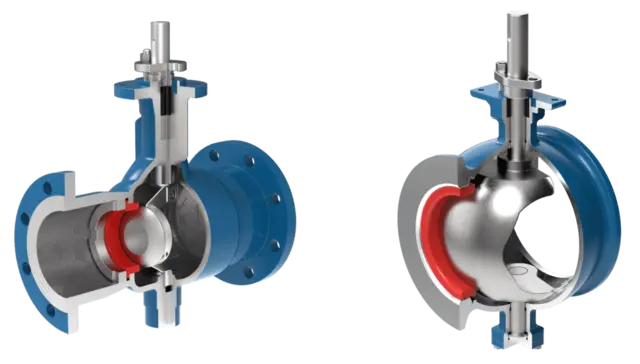

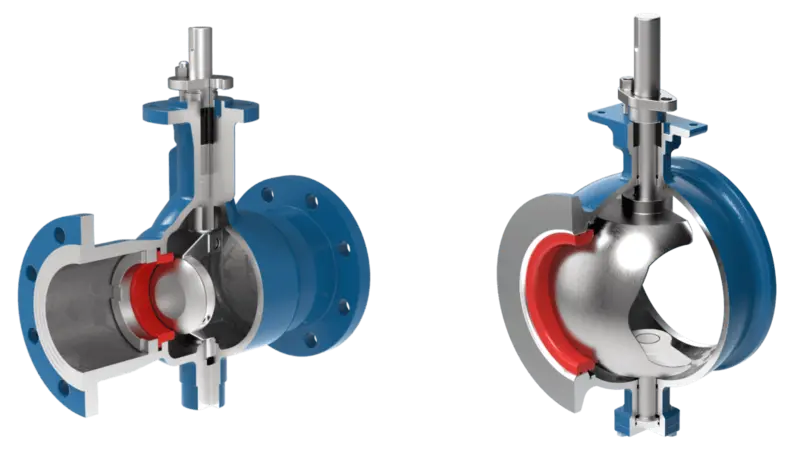

Structure of the Eccentric Rotary Control Valve

The eccentric rotary control valve is engineered for performance and durability, featuring several key components that contribute to its superior functionality.

Body and Flow Path

The valve body is designed with a simple, low-resistance flow path, which allows for higher flow capacity compared to single or double-seat valves of the same diameter. Despite the larger flow capacity, the valve is approximately one-third lighter than comparable valves. This streamlined design minimizes energy losses and allows for more efficient fluid control.

Rotary Motion

The valve operates through rotary motion, which significantly improves the sealing of the stuffing box. This rotary action enhances the overall valve sealing ability and reduces the chances of leakage when the valve is closed.

Sealing Mechanism

One of the key benefits of the eccentric rotary control valve is its tight shutoff capability. The valve utilizes a flexible arm attached to the spool. When the valve closes, this flexible arm experiences a small amount of elastic deformation under the thrust exerted by the actuator. This deformation helps to tighten the contact between the spool and the valve seat, ensuring minimal leakage.

Leakage Reduction

The eccentric motion ensures that the plug only contacts the seat near the shutoff position, which helps to reduce wear and tear. The low friction forces involved during operation further minimize the chances of leakage, especially compared to other types of valves, such as ball or butterfly valves.

Low Thrust Requirement

The eccentric rotary control valve requires lower thrust to close compared to other valve types. For example, ball valves and butterfly valves often require more force to achieve closure. The lower thrust requirement allows for smoother operation and less strain on the actuator, contributing to the overall efficiency of the system.

Durability

The robust design of the eccentric rotary control valve, with its metal trim and specialized seals, makes it highly durable even in high-pressure, high-temperature, or abrasive environments. The ability to operate reliably under rated differential pressure makes it a suitable choice for many industrial applications.

Advantages of Eccentric Rotary Control Valves

Eccentric rotary control valves offer several benefits, especially in industries where flow control is critical. These advantages include:

Improved Sealing

The eccentric motion ensures that the valve plug only contacts the seat when necessary, leading to reduced wear and a tighter shutoff.

Reduced Leakage

The design of the valve minimizes leakage compared to other valve types, contributing to higher efficiency and reduced operational costs.

Versatility

Eccentric rotary control valves can be used for a wide variety of fluids, including slurries, erosive fluids, coking fluids, and high-pressure systems.

Reduced Maintenance

With fewer moving parts and a design that minimizes wear, these valves generally require less maintenance, leading to cost savings and improved reliability.

Energy Efficiency

The low-resistance flow path and reduced leakage improve the overall efficiency of the system, making it ideal for energy-conscious industries.

These valves provide reliable sealing even in high-pressure conditions, making them suitable for industries like power generation, petroleum refining, and chemical processing.

Conclusion

Eccentric rotary control valves play a crucial role in controlling the flow of difficult or erosive fluids across a range of industries. Their unique design, which incorporates a plug that follows an eccentric path, ensures a tight shutoff and minimal leakage, making them ideal for high-performance applications where traditional valves may struggle. The combination of a low-resistance flow path, reduced friction, and improved sealing mechanisms makes these valves highly efficient and durable.

Whether in mining, petroleum refining, pulp and paper production, or power generation, eccentric rotary control valves are a reliable solution for managing difficult fluids. Their ability to provide precise flow control, even in challenging conditions, is a testament to the innovation and engineering behind their design. As industries continue to evolve and face new challenges, the demand for valves that can handle erosive, coking, and high-pressure fluids will keep eccentric rotary control valves in high demand.
