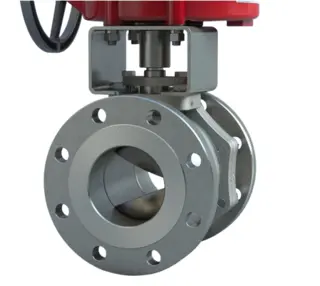

V-Port Ball Control Valves: Enhanced Flow Control for Diverse Applications
On this page
V-Port ball control valves, commonly known as V-ball valves, are an essential component for achieving precise flow control in a variety of industries. These valves combine the benefits of zero leakage, Class VI bubble-tight shutoff ball valves with the high rangeability and performance of a characterized control valve. Whether used for temperature control, flow regulation, steam control, or other applications, V-Port ball valves offer reliable performance with lower pressure drop, quick response times, and optimized flow control.
In addition to these standard configurations, custom slotted ports and custom V-Port options are available to meet highly specialized control valve needs. The V-Port design allows for more precise flow control by shaping the flow path and providing better modulation of the flow rate, which is critical for applications requiring fine-tuned regulation.
Carbon Steel (WCB)
These material choices ensure that the valves offer superior corrosion resistance, strength, and durability, making them ideal for challenging environments in industries such as chemical processing, oil and gas, power generation, and water treatment.
With their versatile design, V-Port ball valves are capable of managing a broad spectrum of control scenarios, from handling high-pressure steam systems to regulating flow in chemical processes and managing temperature in power plants.
These certifications demonstrate the valves' reliability, safety, and compliance with international standards, making them suitable for use in diverse industries across the globe.
Each actuator type is designed to provide reliable and accurate control, ensuring that the valve responds quickly and precisely to changes in the system. When combined with our actuators and control packages, V-Port ball valves offer a fully integrated solution for advanced flow control needs.
Port Types and Customization Options
V-Port ball control valves are available with multiple port configurations, allowing for flexibility depending on the specific requirements of an application. The standard port geometries include:• 15° V-Port
• 30° V-Port
• 60° V-Port
• 90° V-Port
In addition to these standard configurations, custom slotted ports and custom V-Port options are available to meet highly specialized control valve needs. The V-Port design allows for more precise flow control by shaping the flow path and providing better modulation of the flow rate, which is critical for applications requiring fine-tuned regulation.
Material Options for Durability and Performance
The V-Port ball control valves are available in various materials to suit different environmental conditions and fluid types. The main materials used are:Ball Materials:
316 Stainless Steel (CF8M)Body Materials:
Stainless Steel (CF8M)Carbon Steel (WCB)
These material choices ensure that the valves offer superior corrosion resistance, strength, and durability, making them ideal for challenging environments in industries such as chemical processing, oil and gas, power generation, and water treatment.
Wide Range of Applications
V-Port ball control valves are designed for a variety of industrial applications, where accurate and reliable flow control is essential. Key applications include:• Temperature Control
• Flow Control
• Steam Control
• Cavitation Mitigation
• Level Control
• pH Service
With their versatile design, V-Port ball valves are capable of managing a broad spectrum of control scenarios, from handling high-pressure steam systems to regulating flow in chemical processes and managing temperature in power plants.
Key Features and Benefits
The V-Port (V-Ball) rotary control valves offer a range of benefits, including:1. Zero Leakage, Class VI Bubble-Tight Shutoff
V-Port ball valves are designed for zero leakage, ensuring that the valve can be shut off tightly without any leakage, even under extreme pressure and temperature conditions. This feature makes them suitable for critical applications where the integrity of the system must be maintained at all times.2. High Rangeability
The V-Port ball valve design offers superior rangeability, meaning it can control a wide range of flow rates accurately. This makes it an ideal solution for applications requiring precise modulation of flow, such as temperature or level control.3. Exceptional Flow Control
V-Port ball valves offer superior flow control by optimizing the valve’s geometry to better regulate the flow of fluids. This design reduces turbulence, lowers pressure drops, and ensures smooth flow, which is essential in achieving efficient and stable operation in process systems.4. Lower Pressure Drop
The V-Port design reduces pressure drop compared to traditional ball valves, ensuring that energy efficiency is maximized and reducing operational costs in high-pressure systems.5. Fast Response Times
The V-Port design also enhances the valve's responsiveness, allowing it to adjust to changing flow conditions quickly. This is crucial in applications where process variables must be maintained within strict tolerances, such as in chemical processing or steam control systems.6. Compact, Lightweight Design
Despite their performance, V-Port ball valves are compact and lightweight, making them easy to install and integrate into existing systems without the need for significant modifications. This space-saving feature is particularly valuable in tight installations or where weight is a concern.Customizable Control for Specialized Applications
V-Port ball valves can be customized with different port geometries to meet the specific needs of particular applications. The standard port configurations (30°, 60°, and 90°) offer a good range of flow control capabilities, but for more specialized needs, custom-designed ports can be created. This customization allows engineers to tailor the flow characteristics to the exact requirements of a given process, optimizing control and efficiency.Industry Standards and Certifications
All V-Port control valves are manufactured to meet multiple industry standards and certifications, ensuring they meet the stringent requirements of a variety of industrial applications. Key certifications include:• API 607
• ATEX
• NACE MR0175
• PED
• PE(S)R
• SIL
• TR CU
These certifications demonstrate the valves' reliability, safety, and compliance with international standards, making them suitable for use in diverse industries across the globe.
The Complete Control Valve Package
To ensure optimal performance and precise flow control, V-Port ball valves should be used as part of a complete control valve package. This includes not only the valve itself but also the actuator and valve controller. We offer a range of pneumatic, electric, and electro-hydraulic actuators designed to work seamlessly with their V-Port ball valves, delivering enhanced rangeability, repeatability, and precise control.Pneumatic Actuators
Electric Actuators
Electro-Hydraulic Actuators
Each actuator type is designed to provide reliable and accurate control, ensuring that the valve responds quickly and precisely to changes in the system. When combined with our actuators and control packages, V-Port ball valves offer a fully integrated solution for advanced flow control needs.
