In today’s industrial landscape, the demand for automation, precision, and energy efficiency continues to rise across sectors such as oil and gas, power generation, chemical processing, HVAC, and water treatment. Among the many devices that enable these processes, the electric actuated control valve plays a vital role. This type of valve integrates an electric actuator with a control valve body, allowing accurate, reliable, and automated control of flow, pressure, and temperature in complex systems. Unlike manually operated valves or those relying solely on pneumatic or hydraulic actuators, electric actuated control valves combine the benefits of precision control with compatibility for modern digital control networks.

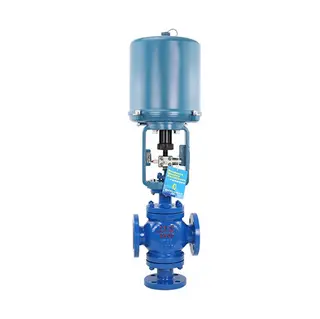

An electric actuated control valve is essentially a valve driven by an electric actuator, which adjusts the valve opening according to input signals from a control system. Its function extends beyond simple on-off control; it enables dynamic regulation of process conditions, ensuring safety, stability, and efficiency. For instance, in heating or cooling applications, electric actuated control valves automatically regulate the flow of hot or chilled water in response to indoor temperature demands, ensuring occupant comfort and energy efficiency. In high-stakes industries like chemical plants or power stations, they safeguard operational consistency by maintaining stable pressure and process conditions.
This article explores the definition, working principle, roles, actuator types, common operational issues, troubleshooting approaches, and the wider industrial significance of electric actuated control valves.
At its core, an electric actuated control valve is a mechatronic device combining two elements:
The control valve – The mechanical body that manages the flow of liquid, gas, or steam through a pipeline.
The electric actuator – A motorized mechanism that adjusts the valve’s position based on control signals.
The actuator receives electrical input—typically 24VDC, 220VAC, or other power configurations—and translates it into torque or linear force to operate the valve. Control signals may come from a distributed control system (DCS), a programmable logic controller (PLC), or modern smart automation platforms. Depending on system design, the valve may be configured for on/off service or precise modulating service, where the actuator continuously adjusts valve opening to maintain desired flow, pressure, or temperature levels.
Electric actuated control valves are indispensable for industrial process control. Their major roles include:
By adjusting valve opening, they enable precise control of flow rate. For example, in a water treatment plant, the flow of chemicals or treated water must remain within narrow limits for efficiency and safety.
Stabilizing system pressure is crucial in pipelines, boilers, and chemical reactors. By regulating valve opening, electric actuated control valves prevent sudden spikes or drops in pressure that could damage equipment or compromise safety.
In HVAC and industrial heating systems, these valves regulate the flow of heating or cooling mediums. This ensures that heat exchangers, furnaces, and process vessels maintain target temperatures, improving energy use and product quality.
Modern industrial automation relies on closed-loop control. Electric actuated control valves integrate seamlessly with advanced control systems, enabling process stability, efficient operation, and compliance with environmental standards.
Electric actuated control valves can be paired with different actuator designs depending on valve type and application requirements:
These actuators rotate less than a full turn—usually about 90°—to open or close the valve. Commonly used with butterfly valves, ball valves, and plug valves, rotary actuators can be mounted directly or via a crank mechanism.
Direct connection type: The actuator shaft couples directly to the valve stem, offering compactness and simplicity.
Base crank type: The actuator drives the valve stem through a crank, suitable for valves requiring higher torque or indirect motion.
For valves requiring multiple rotations—such as gate valves or globe valves—multi-turn actuators provide the necessary movement. These actuators deliver higher thrust and torque, making them suitable for large valves in critical infrastructure.

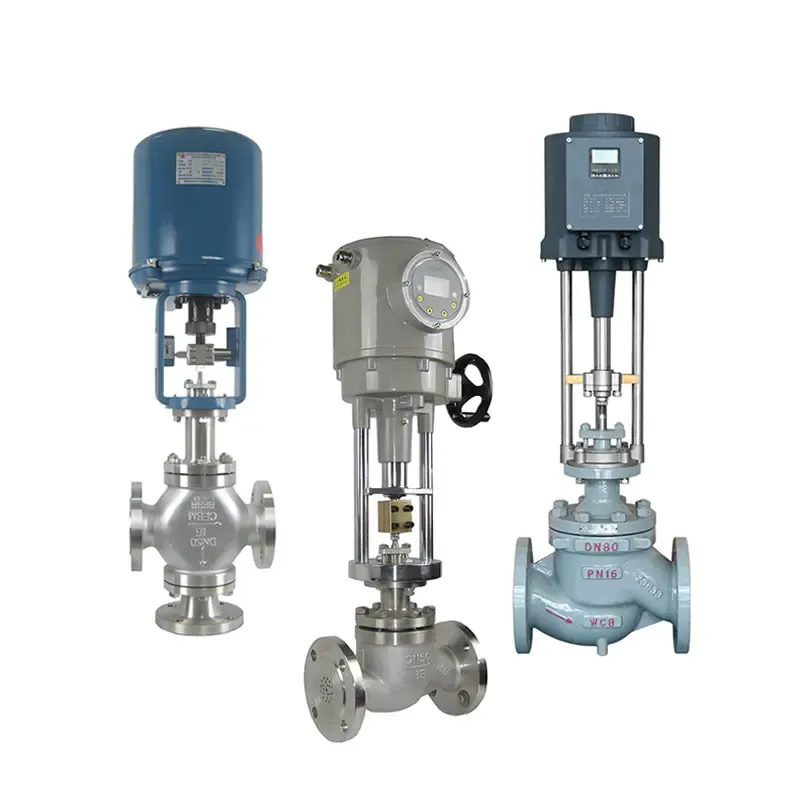

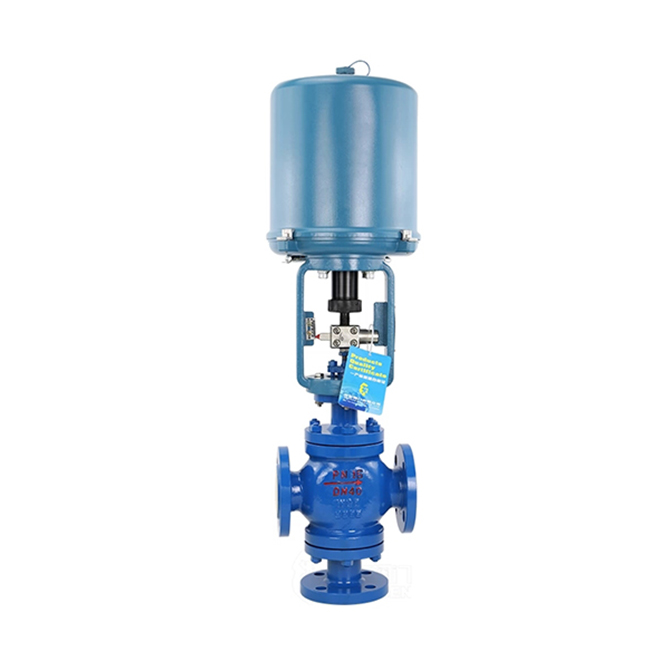

Instead of rotation, these actuators generate straight-line motion. They are ideal for single-seat or double-seat control valves, where linear stem movement controls fluid throttling with high accuracy.
Despite their sophistication, electric actuated control valves are subject to wear, environmental stress, and process variability. Two of the most common issues include improper positioning and leakage.
Positioning errors occur when the valve does not reach its intended position, or when movement becomes inconsistent. This can result in significant process deviations. Causes and solutions include:
Calibration drift: Over time, the correlation between input commands and actual valve position can shift due to component wear. Recalibration is essential.
Feedback system failure: Potentiometers, encoders, or limit switches may provide incorrect signals. Inspect and replace faulty feedback devices.
Mechanical binding: Excessive friction, debris, or stem misalignment may obstruct motion. Inspect and clean the valve internals.
Digital positioner errors: Incorrect configuration or damaged smart positioners can cause inaccuracies. Reviewing diagnostics can pinpoint the issue.
Leakage undermines both safety and efficiency:
Internal leakage: Caused by damaged seats or seals, allowing flow when the valve should be closed. Inspect for erosion, wear, or misalignment.
External leakage: Occurs at packing glands, gaskets, or body joints. This may require tightening or replacing seals and gaskets.
Preventive maintenance programs, regular inspections, and adopting advanced leak detection techniques like ultrasonic testing can minimize downtime and costly accidents.
The versatility of electric actuated control valves makes them valuable across numerous sectors:
Oil and Gas: Controlling crude oil, natural gas, and refined product pipelines with precision.
Power Generation: Regulating steam flow in turbines and cooling systems.
Water and Wastewater Treatment: Managing flow of treatment chemicals, sludge, and clean water distribution.
HVAC Systems: Controlling heating and cooling mediums for buildings and industrial facilities.
Pharmaceutical and Food Processing: Maintaining strict hygiene and process consistency in sterile environments.
Proper maintenance is essential for ensuring the reliability and extended service life of electric actuated control valves. Because these valves often operate in demanding environments, a structured maintenance program helps prevent costly downtime and unexpected failures.
Routine inspections form the foundation of valve care. Technicians should regularly check actuator motors, gear mechanisms, and valve stems for signs of wear, corrosion, or misalignment. Early detection of mechanical issues allows timely corrective action.
Calibration is equally critical. Over time, valve position feedback can drift from actual operation, leading to inaccurate control. Periodically verifying and recalibrating feedback systems against control signals ensures precise positioning and reliable process performance.
Lubrication plays an important role in minimizing friction and preventing binding. Applying the correct, manufacturer-recommended lubricants at scheduled intervals keeps moving parts operating smoothly.
Seal replacement should be proactive rather than reactive. Regularly changing seals, gaskets, and packing materials helps prevent both internal and external leakage, safeguarding safety and process efficiency.
Finally, digital diagnostics offered by modern smart actuators provide valuable insights. Leveraging built-in self-diagnostics allows operators to predict failures, optimize maintenance schedules, and avoid unplanned outages.
Together, these best practices not only maximize equipment performance but also ensure compliance with strict safety and environmental standards.
Compared to pneumatic or hydraulic options, electric actuated control valves offer unique advantages:
Precise Control: Ideal for modulating service requiring fine adjustments.
Energy Efficiency: Consumes power only during operation, unlike pneumatic systems requiring continuous air supply.
Integration: Easily connected with modern digital control systems (Modbus, Profibus, etc.).
Environmental Friendliness: No risk of hydraulic fluid leakage or compressed air wastage.
Flexibility: Suitable for remote and hazardous environments where electrical infrastructure is available.
The market for electric actuated control valves is expanding, driven by Industry 4.0, smart manufacturing, and sustainability goals. Key trends include:
IoT Integration: Advanced actuators with real-time monitoring and predictive maintenance capabilities.
Energy Optimization: Development of low-energy actuators aligned with green initiatives.
Miniaturization: Compact electric actuators for decentralized and modular systems.
Enhanced Materials: Use of corrosion-resistant alloys and advanced polymers for extreme environments.
With industries increasingly shifting toward electrification and digitalization, electric actuated control valves are set to play an even greater role in global infrastructure.
Electric actuated control valves are not just mechanical devices—they are intelligent automation components that enable precise, safe, and efficient process control. By regulating flow, pressure, and temperature, they contribute to industrial reliability and sustainability. Although challenges like improper positioning and leakage require careful attention, modern diagnostics and preventive maintenance strategies significantly improve reliability.
As industries continue to demand higher levels of automation, safety, and energy efficiency, electric actuated control valves will remain at the forefront of process innovation, ensuring that critical systems—from power plants to water treatment facilities—operate smoothly and sustainably.
