In modern industrial automation, the precision and reliability of process control are paramount. Among the key instruments that ensure optimal regulation of flow, pressure, temperature, and liquid levels in pipelines, the pneumatic globe control valve stands out as an essential component. Combining the strengths of mechanical design with pneumatic actuation, this type of valve has become a cornerstone in industries ranging from petroleum and chemical processing to power generation and metallurgy.
A pneumatic globe control valve is designed to modulate the flow of process media by converting a control signal—usually from an automated control system—into mechanical motion that adjusts the valve opening. Utilizing compressed gas as the power source, the valve’s actuator moves a plug within the valve body, precisely regulating the process parameters. In addition, these valves often incorporate accessories such as valve positioners, pneumatic converters, solenoid valves, retention valves, gas storage tanks, and gas filters, all of which enhance control accuracy and operational efficiency.
The combination of simplicity, speed, and intrinsic safety makes pneumatic globe control valves highly valued in industrial settings. Unlike electric valves, which may require extensive explosion-proof measures, pneumatic control valves inherently minimize risk in hazardous environments. Their ability to operate reliably under extreme conditions has cemented their role as a fundamental instrument in industrial process control.

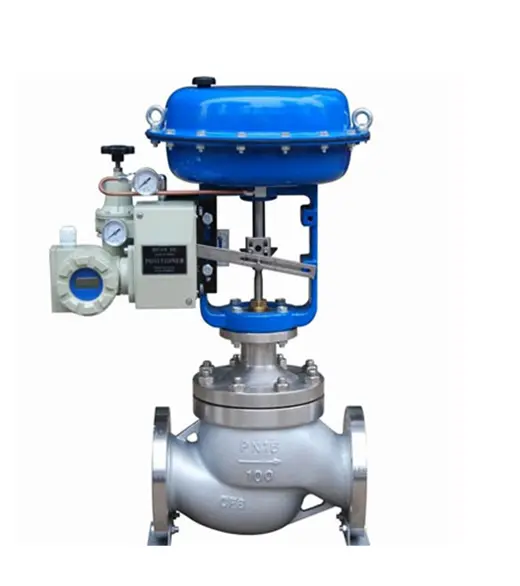

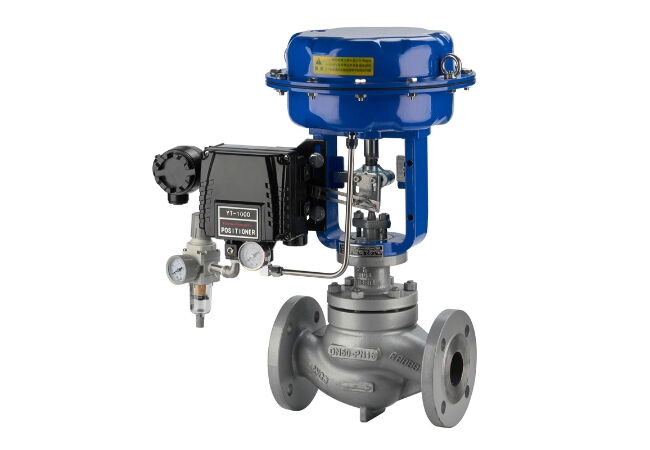

At its core, a pneumatic globe control valve is a regulating valve actuated by compressed air. The primary components include the valve body, valve stem, valve plug, actuator, and various auxiliary devices that enhance control and feedback.
Simple yet Effective Control: Pneumatic globe valves operate on straightforward mechanical principles. Their actuator responds directly to pneumatic signals, translating them into precise valve movements.
Fast Response: The compressibility of air allows the valve to react swiftly to control signals, enabling rapid adjustments in flow and pressure.
Intrinsic Safety: Since the valve is pneumatically actuated, there is no risk of electrical sparks, making it suitable for hazardous or explosive environments.
Reliability: The gas buffer effect reduces the chance of mechanical damage due to sudden shocks or jamming, offering higher reliability than some electrically operated valves in certain applications.
Flexibility: Pneumatic globe valves can be configured as “air-to-open” or “air-to-close” depending on operational requirements.
These features make pneumatic globe valves particularly suitable for industrial processes requiring accurate flow control under variable operating conditions.
Pneumatic globe control valves are widely used in diverse industries due to their precision, adaptability, and reliability.
In petrochemical plants, accurate regulation of liquid and gas flow is critical to ensure safety and efficiency. Pneumatic globe valves allow for precise control of reaction rates, maintaining the balance between production output and operational safety.
Power plants rely on pneumatic globe valves to regulate steam, cooling water, and fuel flow. Fast response and fault-tolerant design make them ideal for high-pressure, high-temperature applications where reliability is non-negotiable.
Chemical plants often handle corrosive or hazardous substances. Selecting the appropriate valve body material, such as stainless steel for corrosive fluids, ensures durability and long-term performance. Pneumatic globe valves provide accurate modulation of chemicals in processes requiring strict control over reaction conditions.
In metallurgical operations, temperature and pressure control are essential for maintaining material quality. Pneumatic globe control valves help regulate fluid flow in smelting, cooling, and other metallurgical processes.
Flow regulation in water treatment plants is another critical application. Pneumatic valves are used to control the rate of water or chemicals, ensuring optimal treatment and reducing the risk of over- or under-dosing.
The pneumatic globe control valve operates on a simple yet effective feedback mechanism.
Signal Reception: The valve actuator receives a pneumatic control signal, typically from a centralized industrial automation system.
Actuator Response: The actuator, often a cylinder or diaphragm-based mechanism, converts the pneumatic signal into linear motion.
Valve Stem Movement: The actuator moves the valve stem, which in turn adjusts the position of the valve plug within the valve body.
Flow Regulation: The movement of the plug changes the opening through which the fluid flows. The degree of opening is directly proportional to the signal strength, allowing for precise control over flow rate, pressure, or temperature.
Position Feedback: Many pneumatic globe valves are equipped with positioners, which provide continuous feedback to ensure the valve accurately reaches the desired setpoint.
This feedback loop ensures high accuracy and repeatability, crucial for processes where even minor deviations can lead to significant production losses or safety hazards.
Pneumatic globe valves can be classified based on actuator type and valve action.
Single-Acting (Spring Return) Actuators: These actuators use air pressure for one action (open or close), while a spring provides the return motion. They are ideal for emergency shut-off scenarios, ensuring the valve defaults to a safe position if the air supply fails.
Double-Acting Actuators: Air pressure is used for both opening and closing the valve. Double-acting actuators are suitable for applications requiring frequent valve adjustments, offering faster response and finer control.
Linear (Straight-Stroke) Valves: The valve plug moves linearly within the valve body, providing proportional flow control. Linear valves are commonly used for throttling applications.
Rotary (Angular-Travel) Valves: The plug moves in a rotational or angular motion. These valves are used when a compact design is required or when the media characteristics demand minimal flow resistance.
Choosing an appropriate pneumatic globe control valve requires careful consideration of several factors.
Stainless Steel: Suitable for corrosive or chemically aggressive media. Offers excellent durability and resistance to wear.
Cast Iron: Ideal for non-corrosive fluids in standard industrial environments. Cost-effective and robust.
Alloy Materials: For high-temperature or high-pressure applications, specialized alloys can ensure longer service life.
Single-Acting: Ideal for safety applications where the valve must return to a default position during a power or air failure.
Double-Acting: Best for continuous regulation and frequent operation, offering smoother response and precision control.
Consider the following:
Flow Range: Ensures the valve can handle maximum and minimum required flow rates.
Operating Pressure: Must match the process pipeline pressure to avoid damage or leakage.
Temperature Range: Material and actuator must withstand the maximum and minimum process temperatures.
Adding devices such as valve positioners, converters, and solenoid valves improves control accuracy and reliability. Positioners, in particular, are critical for maintaining precise plug positioning, especially in high-accuracy processes.
Proper installation and routine maintenance are vital for extending the lifespan and performance of pneumatic globe control valves.
Ensure the valve is centered on the piping to prevent misalignment, which could cause leakage or wear.
Verify that the actuator and accessories are properly connected and calibrated before commissioning.
Follow the manufacturer’s recommended orientation and flow direction to avoid operational issues.
Regularly inspect the valve for debris or deposits on the spool and seat to prevent sticking or jamming.
Lubricate moving parts as recommended to reduce friction and wear.
Check pneumatic connections and filter elements to ensure clean and consistent air supply.
If the valve actuator fails to operate, confirm the gas source pressure and signal connections.
Inspect the positioner for proper calibration and correct any discrepancies in feedback.
Examine the valve plug and seat for wear or damage, replacing components as needed.
Pneumatic globe control valves offer several advantages that make them the preferred choice in many industrial applications:
Fast and Reliable Response: The compressibility of air allows rapid actuation, reducing lag time in control loops.
Intrinsic Safety: No electrical components are involved in the actuation, making the valves inherently safe in hazardous environments.
Durability: Gas cushioning reduces mechanical stress, enhancing longevity and reliability.
Flexibility: Suitable for a wide range of media, including corrosive chemicals, high-temperature fluids, and abrasive materials.
Easy Maintenance: Modular design allows for straightforward inspection, cleaning, and component replacement.
Adaptability: Compatible with automation systems through integration with positioners, converters, and solenoid valves.
As industrial automation evolves, pneumatic globe control valves are also advancing. Trends include:
Smart Positioners: Integration with digital control systems allows real-time monitoring, diagnostics, and predictive maintenance.
Enhanced Materials: New alloys and coatings extend valve life in extreme conditions.
Energy Efficiency: Optimized actuator designs reduce compressed air consumption, lowering operational costs.
IoT Integration: Wireless communication and cloud-based analytics enable better process optimization and remote troubleshooting.
These innovations continue to strengthen the role of pneumatic globe valves in modern industrial operations, ensuring they remain a reliable and efficient solution for precise process control.
Pneumatic globe control valves are indispensable components in industrial automation, offering precise regulation, rapid response, and intrinsic safety across diverse sectors. With careful selection, proper installation, and routine maintenance, these valves deliver reliable performance even in demanding environments.
From petrochemical plants to power stations, chemical processing to metallurgy, pneumatic globe control valves ensure that process control is both efficient and safe. Their simplicity, combined with adaptability and advanced accessories, makes them a versatile and durable solution for modern industrial challenges.
By understanding the operating principles, selecting the right materials and actuators, and integrating with automation systems, industries can fully harness the potential of pneumatic globe control valves, ensuring optimal performance, safety, and long-term reliability.
