In modern industrial systems, pressure management plays a vital role in ensuring safety, efficiency, and continuous operation. Whether in oil refineries, chemical plants, power generation facilities, or pipelines, maintaining stable pressure prevents damage to equipment, enhances product quality, and reduces operational risks. Among the many solutions available, one technology has stood out for its simplicity, reliability, and energy independence: the Self-Actuated Pressure Control Valve (SAPCV).
Unlike conventional control valves that rely on external power sources, actuators, or complex instrumentation, self-actuated pressure control valves function solely by harnessing the energy from the process medium itself. This means the pressure in the system is both the parameter being controlled and the driving force behind the valve’s operation. In other words, the valve uses the system’s own energy to regulate itself.
By design, these valves automatically adjust to maintain an outlet or upstream pressure at a specific set point, regardless of fluctuations in flow rates or inlet conditions. Their autonomous operation, low maintenance requirements, and fail-safe mechanisms make them a trusted choice in industries where reliability and cost-effectiveness are paramount.
This article explores the working principle, sensing mechanism, benefits, applications, and industrial importance of self-actuated pressure control valves.

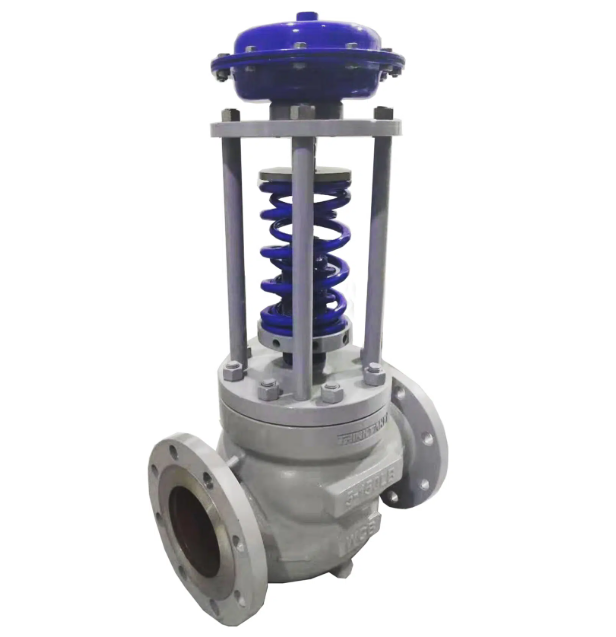

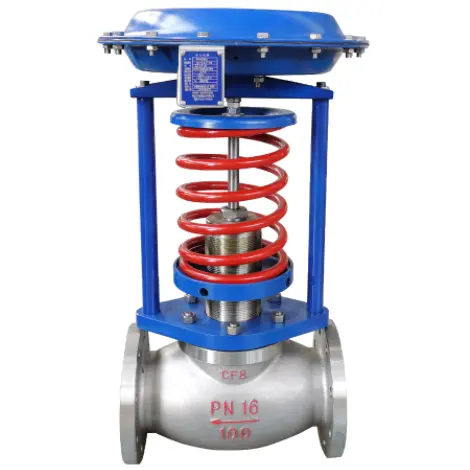

A self-actuated pressure control valve is a specialized type of control valve designed to regulate system pressure without external energy input. When the outlet pressure is used to throttle the valve, the downstream pressure is automatically maintained at the desired set point.
Key defining characteristics include:
No external signal required – Unlike electronically or pneumatically actuated valves, SAPCVs do not rely on compressed air, electricity, or human input for operation.
Process-dependent actuation – The actuating signal comes directly from the process fluid’s own pressure.
Bidirectional regulation – These valves can be configured to maintain pressure either upstream (before the valve) or downstream (after the valve), depending on system requirements.
Stable pressure control – They maintain outlet pressure near the set point even when there are variations in inlet pressure and flow.
Essentially, SAPCVs are autonomous regulators designed to keep pressure within safe and efficient limits in pipelines, tanks, and processing systems.
The fundamental working principle of a self-actuated pressure control valve revolves around utilizing the pressure of the process medium as the driving force for valve actuation. Here’s a simplified breakdown:
Pressure Sensing – A sensing element (such as a diaphragm, piston, or bellows) detects the pressure of the process medium, typically at the downstream or upstream side.
Signal Conversion – The sensed pressure generates a force that acts directly on the actuator mechanism connected to the valve plug or disc.
Valve Movement – Depending on whether the sensed pressure is above or below the set point, the actuator adjusts the valve’s opening to throttle the flow and stabilize the pressure.
Self-Regulation – The valve continuously modulates itself in real time to maintain the desired set point, compensating for any fluctuations in system pressure or flow.
This elegant simplicity eliminates the need for external controllers, sensors, or feedback loops.
The core of the SAPCV’s functionality lies in its sensing and response mechanism. The valve typically incorporates:
Measuring Element – Such as a diaphragm or bellows that directly senses pressure.
Set Point Adjustment – An adjustable spring mechanism defines the target pressure level.
Balancing Action – When the process pressure equals the spring force, the valve stays in equilibrium. Deviations trigger movement to restore balance.
This built-in intelligence allows the valve to autonomously maintain stability, ensuring smooth operations without continuous human intervention or complex external systems.
SAPCVs are widely chosen because they deliver tangible advantages that address modern industrial demands.
The biggest strength of SAPCVs is their ability to operate independently. Since they do not require electricity, pneumatic systems, or sophisticated digital controls, they are well-suited for remote, off-grid, or hazardous environments where external energy may be unavailable or unreliable.
Safety is a critical concern in industries dealing with high pressures, flammable gases, or corrosive fluids. SAPCVs reduce risks through:
Prevention of Over-Pressurization – By automatically throttling flow, these valves keep pressure within safe operating limits, preventing equipment damage or accidents.
Fail-Safe Designs – Many SAPCVs are engineered to default to a safe position (open or closed) during malfunctions, ensuring system integrity even under fault conditions.
Traditional control valves with pneumatic or electric actuators require continuous energy input. SAPCVs, however, use the energy from the process fluid itself, lowering overall energy consumption. This not only reduces operating costs but also aligns with sustainability goals in modern industries.
With fewer external components and no reliance on power supplies, SAPCVs demand minimal maintenance compared to electronically actuated alternatives. Their mechanical simplicity translates into long service life, reduced downtime, and lower lifecycle costs.
Self-actuated valves are known for their rapid responsiveness to system fluctuations. They can quickly adapt to sudden changes in flow or inlet pressure, maintaining a stable outlet pressure that optimizes throughput and protects downstream equipment.
Due to their versatility, SAPCVs are deployed across a wide range of industries.
In upstream and midstream oil and gas operations, maintaining precise pressure control is vital to safeguard pipelines, separators, and compressors. SAPCVs are extensively used in remote wellheads, gathering stations, and gas distribution systems where external energy may not be readily available.
Chemical plants require stable pressure control for reaction stability, product consistency, and equipment protection. SAPCVs provide reliable regulation even in corrosive or hazardous environments, ensuring safety and process efficiency.
Steam systems and turbines require precise pressure regulation to operate efficiently. SAPCVs help maintain stable conditions in boilers, feedwater systems, and auxiliary circuits without relying on external actuators.
Municipal water networks and treatment plants use SAPCVs to manage pressure across varying demand levels. Their autonomous operation ensures consistent delivery, reduces leaks, and extends infrastructure lifespan.
For gas or liquid storage systems, SAPCVs maintain constant pressure levels, preventing tank rupture or collapse while ensuring smooth transfer operations across pipelines.
There are several categories of SAPCVs depending on their functional purpose:
Pressure Reducing Valves (PRVs) – Maintain downstream pressure at a desired set point by throttling excess inlet pressure.
Back-Pressure Valves (BPVs) – Regulate upstream pressure, ensuring minimum pressure is maintained before the valve.
Pressure Relief Valves (PRVs) – Act as safety devices, opening automatically to release excess pressure and protect the system.
Combination Valves – Designed to handle multiple functions such as reducing and relieving pressure within one unit.
Each type addresses specific system needs, providing tailored pressure control solutions.
Self-actuated pressure control valves represent more than just a mechanical solution; they embody a philosophy of reliability, efficiency, and sustainability in industrial engineering. Their growing adoption reflects broader industry trends:
Decentralized Operations – With more remote and unmanned facilities, autonomous equipment like SAPCVs reduces dependency on manual monitoring.
Sustainability Goals – By minimizing energy consumption and maintenance needs, SAPCVs support environmentally responsible operations.
Digital Integration – Although traditionally mechanical, newer designs are being developed with sensors that allow condition monitoring and integration with Industrial Internet of Things (IIoT) platforms, blending autonomy with data-driven insights.
As industries evolve, SAPCVs will continue to play a vital role in balancing performance, safety, and cost-effectiveness.
The Self-Actuated Pressure Control Valve is a cornerstone technology in pressure management across critical industries. Its ability to regulate pressure without external energy or complex systems makes it invaluable in settings where reliability, efficiency, and safety are paramount. From oil rigs in remote deserts to water networks in urban areas, SAPCVs consistently deliver stable performance with minimal intervention.
As industries move toward smarter, more sustainable operations, the simplicity and autonomy of SAPCVs will remain an essential advantage. With advancements in design and integration, these valves will not only serve traditional applications but also adapt to the future of digitalized, energy-conscious industrial systems.
In short, the SAPCV is more than a valve—it is a self-reliant guardian of pressure stability, ensuring that processes run smoothly, safely, and sustainably in an increasingly complex industrial world.
