How to Choose a Pneumatic Control Valve?
On this page

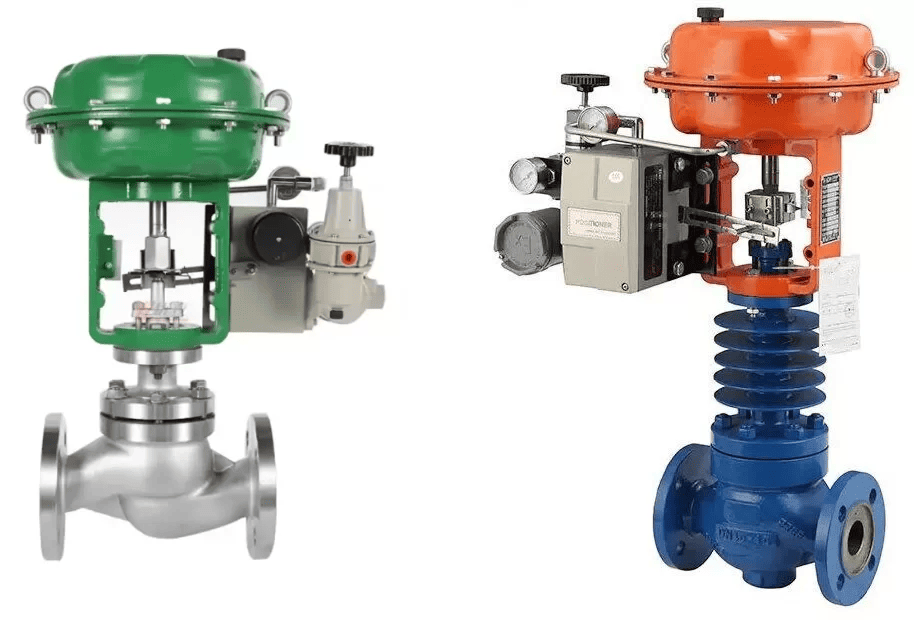

Pneumatic control valves, also known as directional control valves, are vital components in pneumatic systems that control the flow of compressed air or other gases. These valves direct or block the flow, acting as pilots for other valves and driving devices such as actuators, grippers, hand tools, and more. Choosing the right pneumatic control valve is crucial to ensuring the efficiency, reliability, and safety of your system. This article explores the key considerations for selecting a pneumatic control valve that best suits your needs.
For example, if your system uses an aggressive gas or a media prone to contamination, you may need a valve with specialized seals and coatings. Ensure that the valve is rated for the pressure and temperature of the gas or air to avoid potential damage. Pneumatic control valves can be actuated in several ways, depending on the operational requirements and the design of the system. The most common methods of actuation are: Solenoid-operated valves use an electric current to activate the valve. This method is ideal for automated systems where remote control or integration with other electrical systems is required. It provides precise control and allows for quick and reliable valve operation. Manually operated valves require human intervention to open or close the valve. This can be done using various mechanisms, such as a lever, pushbutton, or foot pedal. Manual valves are useful in systems where automation is not required, or where human input is necessary for specific operations. Mechanically actuated valves use mechanical force from tools, workpieces, or cams to control the valve. This type of actuation is often found in systems where components are directly interacting with the valve, such as in industrial manufacturing environments. Remote air-operated valves are controlled by the output signal from another valve or system component. This allows for remote operation and is commonly used in complex systems where valves need to be activated from a distance. This actuation method is typically employed in larger or more automated pneumatic systems.
When selecting the method of actuation, it’s crucial to consider the system's complexity, automation level, and the type of control desired. The choice between a spring-return valve and a detented valve is another key consideration when selecting a pneumatic control valve.
For example, if your system uses an aggressive gas or a media prone to contamination, you may need a valve with specialized seals and coatings. Ensure that the valve is rated for the pressure and temperature of the gas or air to avoid potential damage. Pneumatic control valves can be actuated in several ways, depending on the operational requirements and the design of the system. The most common methods of actuation are: Solenoid-operated valves use an electric current to activate the valve. This method is ideal for automated systems where remote control or integration with other electrical systems is required. It provides precise control and allows for quick and reliable valve operation. Manually operated valves require human intervention to open or close the valve. This can be done using various mechanisms, such as a lever, pushbutton, or foot pedal. Manual valves are useful in systems where automation is not required, or where human input is necessary for specific operations. Mechanically actuated valves use mechanical force from tools, workpieces, or cams to control the valve. This type of actuation is often found in systems where components are directly interacting with the valve, such as in industrial manufacturing environments. Remote air-operated valves are controlled by the output signal from another valve or system component. This allows for remote operation and is commonly used in complex systems where valves need to be activated from a distance. This actuation method is typically employed in larger or more automated pneumatic systems.
When selecting the method of actuation, it’s crucial to consider the system's complexity, automation level, and the type of control desired. The choice between a spring-return valve and a detented valve is another key consideration when selecting a pneumatic control valve.
This type of valve automatically returns to its default position when the actuator is released. Spring-return valves are often used in safety-critical applications because they ensure the valve always returns to a known position (open or closed) in the event of power loss or signal failure. They are typically used in systems where the valve should default to a safe position when not in use.
A detented valve maintains its position until manually or electrically reset. Detented valves are suitable for applications where the valve position needs to be locked in place for extended periods, such as in systems requiring consistent flow control over time. These valves offer more control and are typically used in systems where precise, maintained positions are required.
The decision between spring-return and detented valves depends on the system's safety requirements and the need for valve position stability. Pneumatic valves come in different configurations, each designed for specific functions within a system. The two most common types of configurations are:
The decision between spring-return and detented valves depends on the system's safety requirements and the need for valve position stability. Pneumatic valves come in different configurations, each designed for specific functions within a system. The two most common types of configurations are:
These valves control the flow between two ports. They are the simplest configuration and are typically used for basic on/off applications.
Three-way valves have three ports and can be used for switching between two different paths or for controlling an actuator by directing air to either side of the cylinder.
Four-way valves have four ports and are typically used to control double-acting actuators. They provide more versatility in flow control and can change the direction of flow, allowing for more complex actions in systems such as pneumatic cylinders.
The configuration choice depends on the specific flow path requirements of your system and the type of actuator being controlled. The flow capacity of a pneumatic control valve determines the volume of media it can handle at a given pressure. The size of the valve is crucial in matching the flow rate required for your system’s operation. If the valve is too small for the required flow, it will restrict airflow, leading to system inefficiency, pressure drops, or even valve failure.
On the other hand, a valve that is too large may lead to overcapacity, which can cause unnecessary costs and potentially result in control instability. Valve sizing is influenced by factors such as:
The diameter of the valve ports.
Proper valve sizing ensures that the system operates efficiently, maintaining the desired performance without excess wear or energy consumption. Each pneumatic control valve has a maximum pressure rating that must be considered when selecting the right valve for your system. Choosing a valve with a pressure rating that is too low for your application can result in valve failure, leaks, or safety hazards. Ensure that the valve's pressure rating exceeds the maximum operating pressure of the system to ensure safe and reliable performance. The material composition of the valve is crucial, especially in harsh or corrosive environments. Pneumatic control valves are available in a wide range of materials, including:
The configuration choice depends on the specific flow path requirements of your system and the type of actuator being controlled. The flow capacity of a pneumatic control valve determines the volume of media it can handle at a given pressure. The size of the valve is crucial in matching the flow rate required for your system’s operation. If the valve is too small for the required flow, it will restrict airflow, leading to system inefficiency, pressure drops, or even valve failure.
On the other hand, a valve that is too large may lead to overcapacity, which can cause unnecessary costs and potentially result in control instability. Valve sizing is influenced by factors such as:
System pressure and pressure drop requirements.
The desired flow rate.The diameter of the valve ports.
Proper valve sizing ensures that the system operates efficiently, maintaining the desired performance without excess wear or energy consumption. Each pneumatic control valve has a maximum pressure rating that must be considered when selecting the right valve for your system. Choosing a valve with a pressure rating that is too low for your application can result in valve failure, leaks, or safety hazards. Ensure that the valve's pressure rating exceeds the maximum operating pressure of the system to ensure safe and reliable performance. The material composition of the valve is crucial, especially in harsh or corrosive environments. Pneumatic control valves are available in a wide range of materials, including:
Lightweight and corrosion-resistant, often used in general applications.
Offers high corrosion resistance, ideal for use in chemical, food, and pharmaceutical industries.
Used in systems with low to medium pressure, offering good corrosion resistance and affordability.
The choice of material affects the valve’s durability, performance, and the overall longevity of the system. Consider factors such as temperature extremes, exposure to chemicals, and mechanical stress when selecting the material for your valve. Modern pneumatic control valves come with various control features that enhance their performance, such as:
The choice of material affects the valve’s durability, performance, and the overall longevity of the system. Consider factors such as temperature extremes, exposure to chemicals, and mechanical stress when selecting the material for your valve. Modern pneumatic control valves come with various control features that enhance their performance, such as:
Allows for precise flow control and is often used in applications that require fine adjustments.
Helps maintain safe operation by automatically venting pressure when necessary.
Use a pilot signal to operate larger valves, often found in high-flow applications.
Depending on the complexity of your system and the level of control required, you may need a valve with advanced control features.
Depending on the complexity of your system and the level of control required, you may need a valve with advanced control features.
Choosing the right pneumatic control valve requires careful consideration of several factors, including the type of media, the method of actuation, the valve configuration, and its flow capacity. It’s essential to select a valve that meets the specific needs of your system while ensuring optimal performance, safety, and efficiency. By understanding the key considerations outlined in this article, you can make a more informed decision and choose the right valve for your pneumatic applications.
Investing in the correct pneumatic control valve not only ensures smoother operations but also extends the lifespan of your equipment, reduces maintenance costs, and enhances system safety and efficiency. Whether you're dealing with simple on/off functions or complex systems requiring precise control, selecting the right valve is crucial to your system’s success.
Investing in the correct pneumatic control valve not only ensures smoother operations but also extends the lifespan of your equipment, reduces maintenance costs, and enhances system safety and efficiency. Whether you're dealing with simple on/off functions or complex systems requiring precise control, selecting the right valve is crucial to your system’s success.
