Enhancing Analysis of Electric Butterfly Control Valve Faults
On this page
Electric butterfly control valves play a pivotal role in modern industrial automation systems. As critical components of field instrumentation, they regulate the flow of fluids and gases, ensuring efficient and safe operations across various industries. Their reliability is essential for maintaining seamless production processes, and any malfunction can lead to significant disruptions, delays, and increased costs.
To mitigate these risks, maintenance personnel must be adept at identifying and resolving faults in electric butterfly control valves. This article delves into six common fault scenarios, their causes, and effective troubleshooting techniques, providing a comprehensive guide to ensure minimal downtime and optimal valve performance.
However, like all mechanical and electromechanical devices, these valves are subject to wear and tear over time.
To mitigate these risks, maintenance personnel must be adept at identifying and resolving faults in electric butterfly control valves. This article delves into six common fault scenarios, their causes, and effective troubleshooting techniques, providing a comprehensive guide to ensure minimal downtime and optimal valve performance.

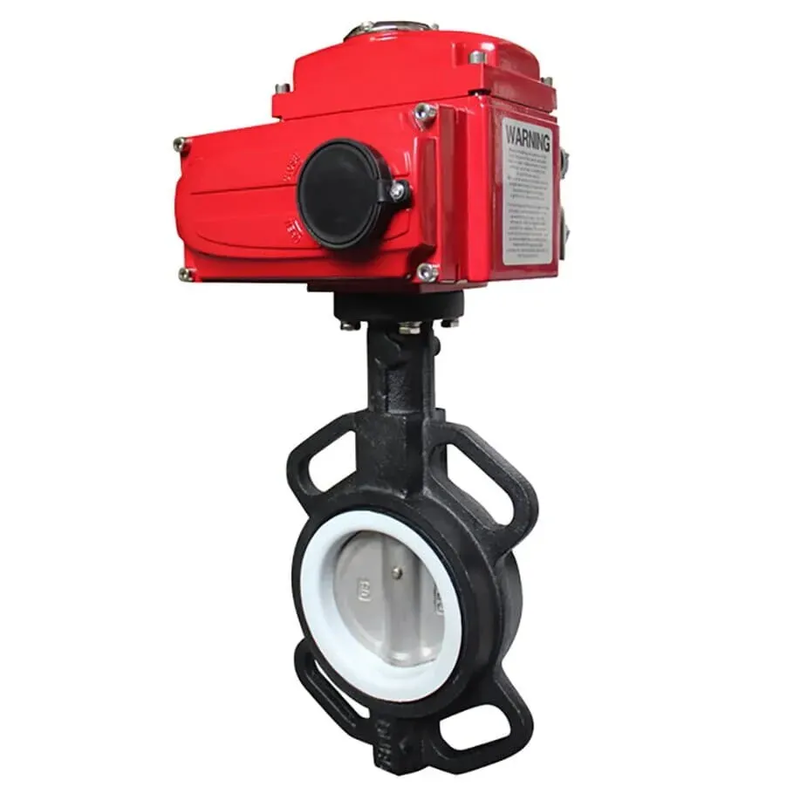

The Importance of Electric Butterfly Control Valves
Electric butterfly control valves are widely used due to their compact design, efficiency, and precise control capabilities. They are commonly deployed in industries such as oil and gas, chemical processing, water treatment, and HVAC systems. Their key features include ease of operation, low maintenance requirements, and adaptability to various applications.However, like all mechanical and electromechanical devices, these valves are subject to wear and tear over time.
External factors such as environmental conditions, improper installation, or inadequate maintenance can exacerbate issues, leading to valve malfunctions. By understanding common faults and their resolutions, operators and maintenance teams can ensure these valves perform reliably and safely.
Common Faults in Electric Butterfly Control Valves
1. Fault: Motor Does Not Start
When the motor fails to start, it can halt operations and disrupt the production process.
Possible Causes:
Power line disconnection.
Failure in the control line.
Malfunction in the stroke or torque control mechanism.
Failure in the control line.
Malfunction in the stroke or torque control mechanism.
Troubleshooting Methods:
Inspect the power lines for any disconnections or damage, and repair or replace them as needed.
Examine the control line for faults, such as loose connections or damaged wires, and address them promptly.
Check the stroke or torque control mechanism for signs of wear or malfunction and perform the necessary repairs.
Examine the control line for faults, such as loose connections or damaged wires, and address them promptly.
Check the stroke or torque control mechanism for signs of wear or malfunction and perform the necessary repairs.
2. Fault: Output Shaft Rotation Direction Is Incorrect
Incorrect rotation of the output shaft can lead to improper valve operation, affecting fluid flow and system efficiency.
Possible Cause:
Reversed phase sequence of the power supply.
Troubleshooting Method:
Swap any two power lines to correct the phase sequence. This simple adjustment can restore the correct rotation direction.
3. Fault: Motor Overheating
Overheating can damage the motor and other components, leading to costly repairs or replacements.
Possible Causes:
Continuous operation for an extended period.
Disconnection in one phase of the power line.
Disconnection in one phase of the power line.
Troubleshooting Methods:
Pause motor operation to allow it to cool. Consider implementing intermittent operation schedules to prevent overheating in the future.
Inspect the power cord for loose or disconnected wires, and repair or replace them as necessary.
Inspect the power cord for loose or disconnected wires, and repair or replace them as necessary.
4. Fault: Motor Stops Running
A sudden stop in motor operation can indicate underlying mechanical or electrical issues.
Possible Causes:
Mechanical failure within the butterfly valve.
Overload in the electric actuator, triggering the torque control mechanism.
Overload in the electric actuator, triggering the torque control mechanism.
Troubleshooting Methods:
Examine the butterfly valve for obstructions, wear, or damage, and perform repairs or replacements as required.
Adjust the torque settings to a higher threshold to accommodate operational demands while ensuring the valve remains within safe limits.
Adjust the torque settings to a higher threshold to accommodate operational demands while ensuring the valve remains within safe limits.
5. Fault: Motor Does Not Stop After Reaching Position
Continuous operation of the motor after the valve reaches its intended position can cause unnecessary wear and energy consumption.
Possible Causes:
Faulty travel or torque control mechanism.
Improper adjustment of the travel control mechanism.
Improper adjustment of the travel control mechanism.
Troubleshooting Methods:
Inspect the travel or torque control mechanisms for signs of malfunction or misalignment, and address the issues.
Recalibrate and adjust the travel control mechanism to ensure it aligns with the operational requirements of the valve.
Recalibrate and adjust the travel control mechanism to ensure it aligns with the operational requirements of the valve.
6. Fault: No Valve Position Signal Remotely
The absence of a remote valve position signal can hinder monitoring and control capabilities, affecting overall system efficiency.
Possible Causes:
Loose set screw in the potentiometer gear.
Faulty remote potentiometer.
Faulty remote potentiometer.
Troubleshooting Methods:
Tighten the set screw on the potentiometer gear to restore proper alignment.
Check the potentiometer for signs of wear or malfunction and replace it if necessary.
Check the potentiometer for signs of wear or malfunction and replace it if necessary.
Key Preventive Measures for Long-Term Reliability
To reduce the likelihood of faults and ensure reliable valve operation, consider implementing these preventive maintenance practices:
1. Routine Inspections
Conduct regular checks on power lines, control circuits, and mechanical components for wear, corrosion, or damage.
Verify the integrity of connections and the proper functioning of control mechanisms.
Verify the integrity of connections and the proper functioning of control mechanisms.
2. Proper Calibration
Ensure that the travel and torque control mechanisms are correctly adjusted to prevent strain on the valve components.
Periodically recalibrate settings to align with changing operational requirements.
Periodically recalibrate settings to align with changing operational requirements.
3. Clean Operating Environment
Maintain a clean and debris-free environment around the valve to prevent obstructions and operational inefficiencies.
Protect the valve from exposure to corrosive substances or extreme environmental conditions.
Protect the valve from exposure to corrosive substances or extreme environmental conditions.
4. Scheduled Maintenance
Develop a comprehensive maintenance schedule to address potential issues before they escalate.
Replace worn or aging components proactively to avoid unexpected failures.
Replace worn or aging components proactively to avoid unexpected failures.
5. Staff Training
Train maintenance personnel in identifying and troubleshooting common valve faults.
Provide guidelines for proper installation, operation, and maintenance procedures.
Provide guidelines for proper installation, operation, and maintenance procedures.
Advanced Diagnostics and Monitoring Technologies
Integrating advanced diagnostics and monitoring tools can further enhance the reliability of electric butterfly control valves:
Sensors and IoT Integration
Smart sensors can monitor valve performance in real-time, providing data on parameters such as torque, position, and temperature.
Predictive Maintenance
Use predictive analytics to identify potential issues before they lead to failures.
Remote Monitoring
Enable remote access to valve data for better oversight and quicker response to anomalies.
Conclusion
Electric butterfly control valves are indispensable in automated production systems, ensuring precise control and efficient operation. While faults are inevitable due to wear and operational demands, understanding their causes and solutions is key to minimizing downtime and maintaining productivity.
By adopting a proactive approach that combines thorough troubleshooting, preventive maintenance, and advanced monitoring technologies, industries can ensure the reliability and longevity of these critical components. Effective management of electric butterfly control valves not only enhances operational efficiency but also contributes to safer and more sustainable industrial processes.
By adopting a proactive approach that combines thorough troubleshooting, preventive maintenance, and advanced monitoring technologies, industries can ensure the reliability and longevity of these critical components. Effective management of electric butterfly control valves not only enhances operational efficiency but also contributes to safer and more sustainable industrial processes.
