In the world of industrial automation, efficiency, reliability, and cost-effectiveness are paramount. Pneumatic quarter-turn actuators have emerged as a game-changing solution for automating ball and butterfly valves, enabling remote control through compressed air. These actuators are designed to enhance system automation, particularly for larger valves, while keeping investment costs relatively low. With their compatibility with ISO 5211 F07 valves and robust construction, pneumatic quarter-turn actuators are becoming a go-to choice for industries seeking to optimize their operations.
This article delves into the features, benefits, and considerations of pneumatic quarter-turn actuators, providing a comprehensive overview of their functionality, applications, and advantages. Whether you're an engineer, plant manager, or automation specialist, understanding the capabilities of these actuators can help you make informed decisions for your systems.

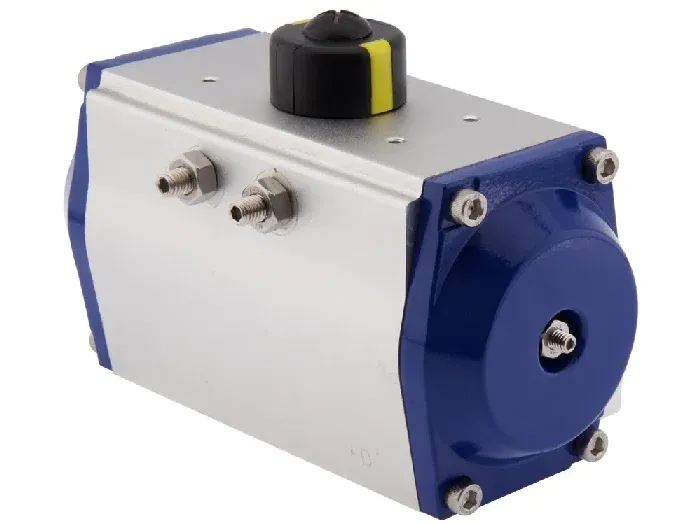

Pneumatic quarter-turn actuators are mechanical devices that convert compressed air energy into rotational motion, typically used to control quarter-turn valves such as ball or butterfly control valves. These actuators are designed to provide precise and reliable operation, making them ideal for applications where automation and remote control are essential.
The actuators are compatible with valves that feature an ISO 5211 mounting flange, ensuring seamless integration. They are equipped with a 17 mm star connection for square drive shafts, and adapters are available to accommodate different shaft sizes. This flexibility makes them suitable for a wide range of valve configurations.
The actuator generates a torque of 74 Nm at 6 bar, with a control pressure range of 6-10 bar. This allows users to adjust the torque output as needed, providing greater control over valve operation.
Unlike single-acting actuators, double-acting actuators use compressed air for both opening and closing motions. This design offers enhanced control and reliability, making it suitable for critical applications.
The actuator is built with an anodized aluminum housing and cover, ensuring durability and resistance to corrosion. The internal rack and pinion mechanism is also made of aluminum, providing reliable rotational operation.
With NBR seals, the actuator operates effectively within a temperature range of -20°C to 80°C. For higher temperature applications, an optional FKM seal is available, extending the maximum temperature limit.

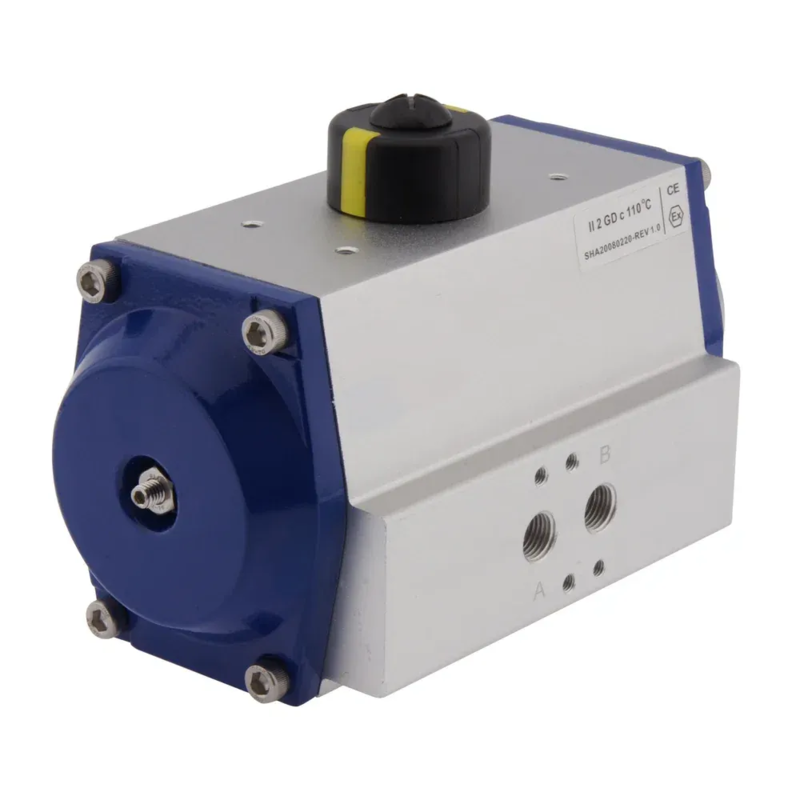

The actuator features G 1/4 inch ports for air supply and return. To streamline installation, a 1/4 inch Namur solenoid valve can be mounted directly onto the actuator. It's important to note that the "1/4 inch" designation refers to the Namur size of the valve, not the port size.
A position control or limit switch box can be mounted on top of the actuator in accordance with VDI/VDE 3845 standards. This feature allows for precise monitoring and control of valve position, enhancing system safety and efficiency.
The actuator is ATEX certified (EX II 2GD c), making it suitable for use in potentially explosive environments. This certification ensures compliance with stringent safety standards, providing peace of mind for operators in hazardous industries.
The double-acting design provides superior control compared to single-acting actuators, allowing for precise operation in both opening and closing directions.
These actuators are compatible with most quarter-turn valves featuring ISO 5211 F07 mounting flanges, making them a versatile solution for various applications.
The ability to directly mount a Namur solenoid valve reduces the need for additional fittings and tubing, simplifying installation and minimizing potential leak points.
Pneumatic actuators are known for their fast opening and closing speeds, which can significantly improve process efficiency.
A mechanical indicator on the actuator's top provides a clear visual representation of the valve's position, aiding in troubleshooting and maintenance.
The ATEX certification ensures that the actuator can be safely used in explosive environments, making it a reliable choice for industries such as oil and gas, chemical processing, and mining.
While pneumatic quarter-turn actuators offer numerous benefits, there are some considerations to keep in mind:
Double-acting actuators consume more compressed air than their single-acting counterparts, which can increase operational costs in systems with high air demand.
These actuators require a compressed air system and a solenoid valve to control the air supply. This dependency may limit their use in facilities without existing air infrastructure.
Compared to electric actuators, pneumatic actuators generally have higher energy consumption, which may impact overall system efficiency.
Pneumatic quarter-turn actuators are widely used across various industries due to their reliability and versatility. Some common applications include:
In the oil and gas industry, these actuators are used to control valves in pipelines, refineries, and offshore platforms. Their ATEX certification makes them ideal for hazardous environments.
The durable construction and corrosion-resistant materials of pneumatic actuators make them suitable for handling aggressive chemicals and high-temperature processes.
These actuators are used to automate valves in water treatment plants, ensuring efficient flow control and system reliability.
In the food and beverage industry, pneumatic actuators are employed to maintain hygiene standards and automate processes such as filling, mixing, and packaging.
The precise control and clean operation of pneumatic actuators make them a preferred choice for pharmaceutical manufacturing processes.
To ensure optimal performance and longevity of pneumatic quarter-turn actuators, follow these installation and maintenance guidelines:
Before installation, verify that the actuator is compatible with your valve's flange dimensions and shaft size. Refer to the datasheet for detailed specifications.
Installing throttle valves on the outlet ports (after the solenoid valve) allows you to adjust the rotational speed of the actuator, providing greater control over valve operation.
Periodically inspect the actuator for signs of wear, leaks, or damage. Replace seals and other components as needed to maintain performance.
Ensure that the actuator's moving parts are properly lubricated to reduce friction and extend service life.
Maintain a consistent and clean air supply to prevent contamination and ensure reliable operation.
Pneumatic quarter-turn actuators are a powerful tool for enhancing automation and control in industrial systems. Their robust design, compatibility with ISO 5211 F07 valves, and ATEX certification make them a reliable choice for a wide range of applications. While they do have some limitations, such as higher compressed air consumption, their benefits far outweigh these considerations in most scenarios.
By understanding the features, advantages, and applications of pneumatic quarter-turn actuators, you can make informed decisions to optimize your systems and improve operational efficiency. Whether you're working in oil and gas, chemical processing, or water treatment, these actuators offer a cost-effective and reliable solution for automating quarter-turn valves.
As industries continue to embrace automation, pneumatic quarter-turn actuators will undoubtedly play a crucial role in driving innovation and efficiency. With their proven performance and versatility, they are set to remain a cornerstone of modern industrial automation for years to come.
