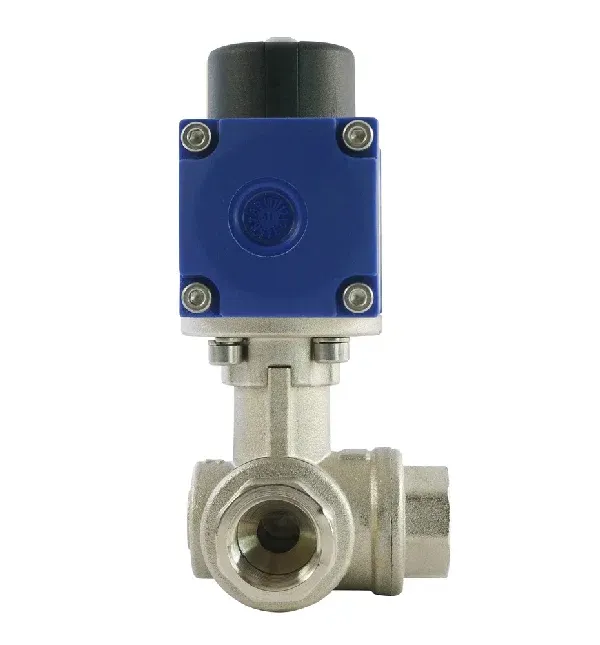

In the ever-evolving world of industrial automation, efficiency, reliability, and precision are paramount. The introduction of the pneumatically controlled 3-way ball valve (L-port) marks a significant leap forward in automating fluid control systems. This innovative valve is designed to replace manually controlled valves, offering a seamless integration into automated systems while enhancing performance and reducing operational costs. With a 10 mm diameter, this valve is suitable for handling both liquids and gases within a temperature range of -10 to 100°C, making it a versatile solution for a wide array of industrial applications.
Unmatched Performance and Durability
At the heart of this 3-way ball valve is its robust pneumatic actuator, capable of generating an impressive 9.92 Nm of torque at 8 bar. The actuator operates within a control pressure window of 6 to 10 bar, ensuring consistent and reliable performance even under demanding conditions. The valve's G 3/8" threaded connections facilitate easy integration with existing piping or hosing systems, while its Kv value of 3 m³ ensures optimal flow control.

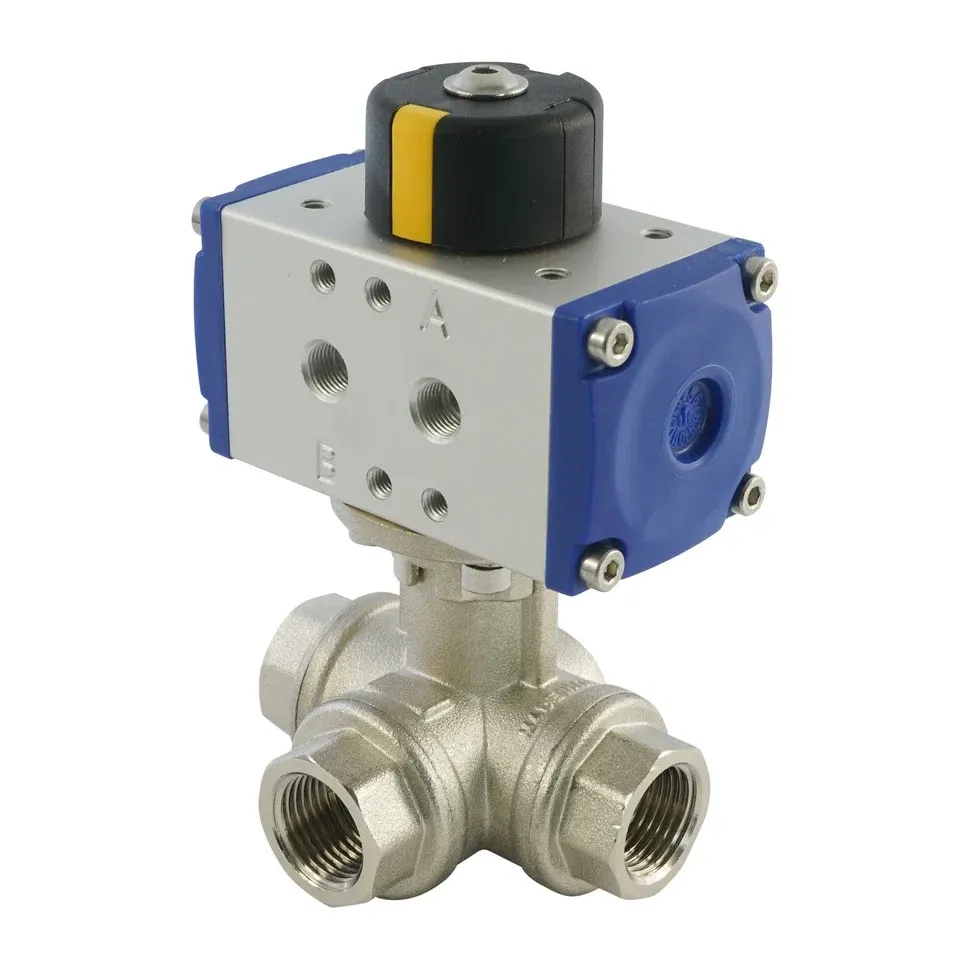

The actuator's double-acting design, powered by an aluminium rack-and-pinion mechanism, offers superior control compared to single-acting actuators. This design allows for precise and rapid opening and closing of the valve, which is crucial in applications where timing and accuracy are critical. The actuator's housing is constructed from anodized aluminum, providing exceptional durability and resistance to corrosion, while the acetal resin cover adds an extra layer of protection against wear and tear.
The ball valve itself features a brass housing, known for its strength and resistance to high-pressure environments, and is sealed with PTFE (polytetrafluoroethylene), a material renowned for its excellent chemical resistance and low friction properties. This combination ensures that the valve can withstand media pressures of up to 40 bar, making it suitable for even the most demanding industrial applications.
Seamless Integration and Control
One of the standout features of this 3-way ball valve is its compatibility with Namur solenoid valves. The actuator is equipped with G1/8 ports for air supply and return, allowing for the direct mounting of a 1/4" Namur solenoid valve. This integration significantly reduces the need for additional fittings and tubing, simplifying the installation process and minimizing potential points of failure. The inclusion of a mechanical indicator on the actuator provides a clear visual representation of the valve's position, ensuring that operators can quickly and easily monitor its status.
Certified for Safety and Reliability
Safety is a top priority in any industrial setting, and this 3-way ball valve does not disappoint. It is ATEX (EX II 2GD c) certified, meaning it has been rigorously tested and approved for use in explosive environments. This certification provides peace of mind to operators, knowing that the valve meets the highest safety standards and can be relied upon in even the most hazardous conditions.
Cost-Effective Automation
While electric actuators are often seen as the go-to solution for automation, the 3-way pneumatic ball valve offers a compelling alternative. The initial investment cost is significantly lower than that of electric actuators, making it an attractive option for businesses looking to automate their systems without breaking the bank. Additionally, the valve's fast opening and closing times, coupled with the precise control offered by its double-acting actuator, ensure that operational efficiency is maximized.
However, it's important to note that double-acting actuators do consume more compressed air than their single-acting counterparts. This increased air consumption can lead to higher energy costs over time. Furthermore, the valve requires a compressed air system and a solenoid valve to control the air supply, which may necessitate additional infrastructure for some facilities. Despite these considerations, the overall cost savings and performance benefits make the 3-way pneumatic ball valve a highly attractive option for many industrial applications.
Enhanced Control with Limit Switch Box
For applications requiring even greater control and monitoring, the 3-way pneumatic ball valve can be equipped with a limit switch box. This accessory provides feedback on the valve's position, allowing for more precise control and integration into automated systems. The limit switch box is particularly useful in applications where the valve's position needs to be monitored continuously or where automated systems require real-time feedback to optimize performance.
Pros of 3-way Pneumatic Ball Valve
Direct Mounting of Namur Solenoid Valve: Reduces the need for additional fittings and tubing, simplifying installation and maintenance.
Mechanical Indicator: Provides a clear visual indication of the valve's position, enhancing operational transparency
ATEX Certification: Ensures the valve can be safely used in explosive environments, meeting stringent safety standards.
Lower Initial Investment: Offers a cost-effective alternative to electric actuators, making automation more accessible.
Fast Operation: Rapid opening and closing times improve system responsiveness and efficiency.
Double-Acting Actuator: Provides greater control and precision compared to single-acting actuators.
Limit Switch Box Compatibility: Allows for enhanced monitoring and control, ideal for advanced automation systems.
Cons of 3-way Pneumatic Ball Valve
Higher Compressed Air Consumption: Double-acting actuators use more compressed air than single-acting models, potentially increasing energy costs.
Requires Compressed Air System: Necessitates the installation of a compressed air system and solenoid valve, which may require additional infrastructure.
Energy Consumption: While the initial investment is lower, the ongoing energy costs may be higher compared to electric actuators.
Conclusion
The 3-way pneumatic ball valve represents a significant advancement in fluid control technology, offering a perfect blend of performance, reliability, and cost-effectiveness. Its robust construction, combined with the precision of its double-acting actuator, makes it an ideal choice for a wide range of industrial applications. The ability to directly mount a Namur solenoid valve, coupled with its ATEX certification, ensures that this valve can be seamlessly integrated into even the most demanding environments.
While the higher compressed air consumption and the need for a compressed air system may be considerations for some, the overall benefits of this valve far outweigh these drawbacks. For businesses looking to enhance their automation capabilities without incurring the high costs associated with electric actuators, the 3-way pneumatic ball valve is a compelling solution.
In a world where efficiency and reliability are key, the 3-way pneumatic ball valve stands out as a testament to the power of innovation in industrial automation. Whether you're looking to upgrade an existing system or implement a new automated solution, this valve offers the performance and versatility needed to meet the challenges of modern industry.
