Introduction
In industrial and commercial applications, controlling the flow of media such as liquids or gases is crucial for efficient system operations. One of the most effective solutions for achieving precise flow control is through the use of 3-way stainless steel electric ball valves. These valves play a pivotal role in regulating the movement of media through pipes, and they are highly regarded for their durability, versatility, and ability to automate control processes. This article provides an in-depth look at the 3-way electric ball valve, its design, components, applications, and benefits, particularly in environments that demand high performance and reliability.

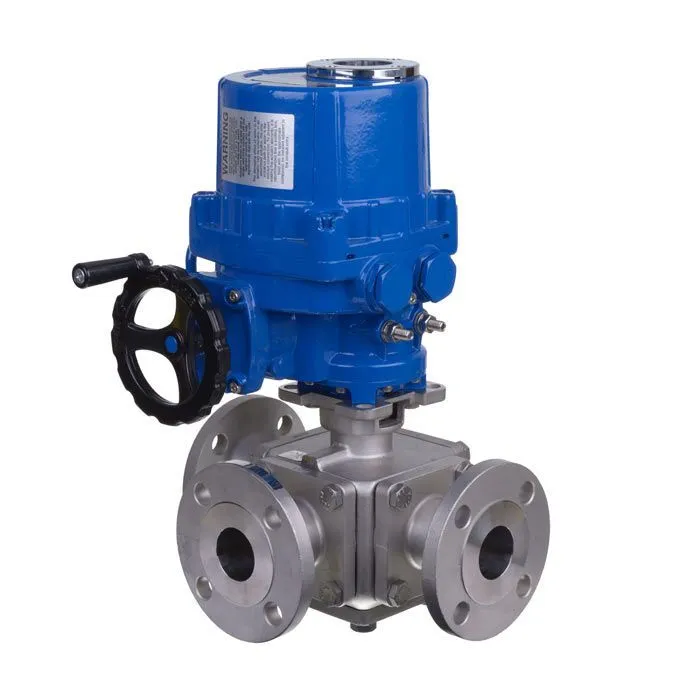

What is a 3-Way Electric Ball Valve?
A 3-way electric ball valve, also known as a 3-way motorized ball valve, is designed to control the flow of various types of media, including liquids and gases. The core function of the valve is to regulate the flow direction using a rotating ball that has a hole or bore in it. This rotating ball is powered by an electric actuator, which is connected directly to the valve’s stem. The actuator rotates the ball a quarter turn, thereby controlling the opening or closing of the valve and consequently the flow of the media.
The 3-way ball valve stands out from traditional ball valves due to its unique design, featuring three ports instead of the usual two. These three ports give the valve a higher level of versatility, enabling it to perform tasks such as mixing, diverting, or distributing the flow of media.
There are two main configurations for 3-way ball valves: T-port and L-port. The difference lies in the design of the valve's internal bore, which dictates how the media flows through the valve.
Design Types: L-Port vs. T-Port
T-Port Valve
A T-port valve has a ball with a bore that creates a “T” shape when viewed from the side. This design allows the valve to either mix two separate flow paths into one or distribute one inlet flow into two separate outlets. It is especially useful in systems where combining or distributing fluids from different sources is required.
Application Example: A T-port valve can be used to combine fluids from two inlets into a single outlet or divide a single inlet into two outlets, depending on the desired flow path.
L-Port Valve
The L-port valve features a 90-degree bore design, forming an “L” shape. This design is optimal for directing flow between two inlets and one outlet, or vice versa, while keeping the flow in a single direction. The L-port configuration is typically used when there is a need to control the direction of flow in a specific manner.
Application Example: In an industrial application, two different tanks may supply fluids into an L-port valve, but only one tank's output is needed at a time. The valve’s design ensures that the correct flow direction is maintained and prevents cross-contamination of the media.
The pressure inlet for most 3-way ball valves is located at the center bore to prevent leakage, unless otherwise specified by the manufacturer. The ports' positioning plays a crucial role in ensuring the proper flow of media, and this should be taken into consideration when choosing the appropriate valve type for specific applications.
Key Components of a 3-Way Stainless Steel Electric Ball Valve
A 3-way electric ball valve consists of two primary components: the electric actuator and the ball valve itself.
Electric Actuator
The actuator, often referred to as a servo motor, is responsible for rotating the ball valve’s stem. Powered by electricity, the actuator’s motion is precisely controlled, allowing for accurate valve operation. Many modern actuators are equipped with features such as remote control and automation capabilities, enabling seamless integration into automated systems.
Advantages of Electric Actuators: One of the primary benefits of using an electric actuator is its ability to provide remote control. This is particularly advantageous in complex systems where manual operation is not feasible or safe.
Ball Valve
The ball valve itself is constructed with a ball that contains a hole (or bore). This ball rotates within the valve body to either allow or block flow. The ball valve’s rotation is actuated by the electric servo motor, which adjusts the ball’s position based on electrical signals.
Material: The ball valve is typically made from stainless steel, known for its resistance to corrosion, high pressures, and extreme temperatures. Stainless steel is an ideal material for valves used in demanding environments, where durability and reliability are crucial.
Stainless Steel: The Preferred Material for 3-Way Electric Ball Valves
The use of stainless steel in 3-way electric ball valves is crucial for ensuring high performance and durability in challenging conditions. Stainless steel is particularly suited for applications involving aggressive or corrosive media due to its exceptional resistance to corrosion, high-pressure environments, and high temperatures.
1. Types of Stainless Steel
304 Stainless Steel: While 304 stainless steel is commonly used in many industrial applications, it may not be ideal for certain harsh media, such as chloride solutions, due to its relatively lower resistance to corrosion in these specific environments.
316 Stainless Steel: 316 stainless steel, on the other hand, is preferred for more aggressive media. Its superior corrosion resistance, especially in chloride-rich environments, makes it the material of choice for industries like chemical processing, petrochemical, and pharmaceuticals.
2. Benefits of Stainless Steel
Corrosion Resistance: Stainless steel, especially 316, offers excellent resistance to corrosion, even in aggressive environments.
Durability: Stainless steel is known for its strength and ability to withstand high pressure, making it ideal for high-pressure applications in industrial sectors.
Temperature Resistance: Stainless steel can handle a wide range of temperatures, ensuring reliable valve operation even in extreme conditions.
3. Other Materials:
For less demanding applications, PVC and other materials may be used, particularly in systems where media such as chloride solutions are involved.
Applications of 3-Way Stainless Steel Electric Ball Valves
3-way stainless steel electric ball valves are versatile and find application in numerous industries. Some of the key sectors where these valves are commonly used include:
Chemical and Petrochemical Industries
3-way electric ball valves are commonly used for mixing, diverting, or distributing chemicals in production lines. Their resistance to high pressure and aggressive media makes them indispensable in these industries.
Water Treatment
In water treatment plants, these valves are used to control the flow of water or wastewater through various processes. The stainless steel construction ensures longevity and resistance to the corrosive effects of treated water.
Oil and Gas
The oil and gas industry uses 3-way ball valves for high-pressure and temperature applications. These valves are essential for controlling the flow of oil, gas, or other fluids in pipelines and refineries.
Food and Beverage
In food processing, stainless steel valves are preferred for their ease of cleaning and resistance to contamination, ensuring hygiene and safety in food production lines.
HVAC Systems
In heating, ventilation, and air conditioning systems, these valves regulate the flow of air or coolant, ensuring optimal performance of the system.
Pharmaceuticals
For pharmaceuticals, where cleanliness and precision are critical, stainless steel ball valves are used to control the flow of fluids in manufacturing processes.
Advantages of 3-Way Stainless Steel Electric Ball Valves
1. Automation
With an electric actuator, these valves can be easily integrated into automated control systems, reducing the need for manual intervention and improving system efficiency.
2. Reliability
Stainless steel’s durability ensures long-lasting performance, even in harsh environments. This reliability reduces maintenance costs and downtime in industrial operations.
3. High Pressure and Temperature Resistance
3-way stainless steel ball valves can operate under high pressures and temperatures, making them suitable for demanding industrial applications.
4. Versatility
The ability to mix, divert, and control the flow of media makes these valves highly versatile. Whether for mixing chemicals, directing fluid flow, or distributing media across multiple outlets, they offer a wide range of functionality.
Conclusion
3-way stainless steel electric ball valves offer a unique combination of durability, versatility, and precision in flow control. Their ability to handle high-pressure, high-temperature, and corrosive environments makes them ideal for industries ranging from chemical processing to water treatment and beyond. With the integration of electric actuators, these valves can be easily automated, allowing for remote operation and enhanced system control. Understanding the design features and applications of 3-way electric ball valves will help engineers and operators make informed decisions when selecting the best valve for their specific needs.
