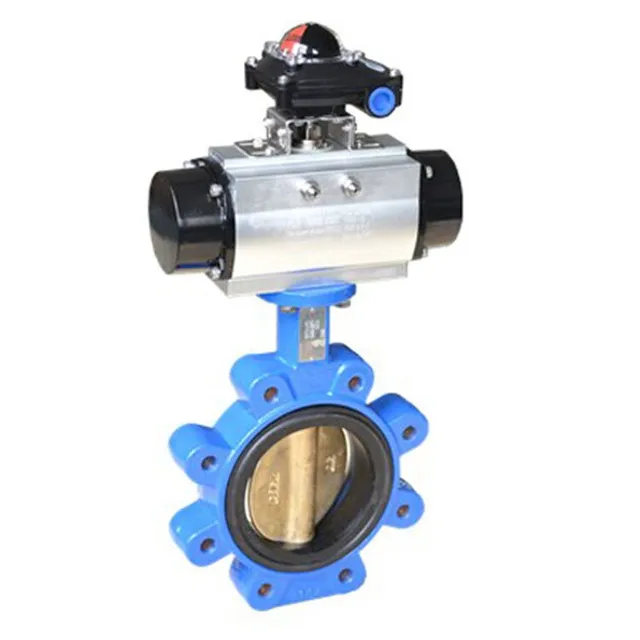

The eccentric offset butterfly control valve, often referred to as a high-performance butterfly valve, is a highly specialized valve designed with a unique off-center, or eccentric, disc or shaft placement relative to the pipeline axis. This innovative design sets it apart from traditional centered disc butterfly valves, offering significant advantages in terms of performance, durability, and sealing capabilities.
When the valve is opened, the eccentric positioning allows the disc to completely disengage from the valve seat, minimizing friction and wear on both components. This not only enhances the valve's operational efficiency but also extends its lifespan. When closed, the eccentric design ensures a tighter seal, effectively preventing leaks and providing a more secure shut-off. This feature is particularly valuable in high-pressure, high-temperature, or corrosive environments where leakage could pose serious risks.
Eccentric offset butterfly control valves are available in single, double, and triple offset configurations, with each additional offset further improving the valve's performance. Triple offset valves, for instance, offer the highest level of sealing and the lowest wear, making them ideal for demanding industrial applications. These valves are widely used across industries such as oil and gas, chemical processing, power generation, and water treatment due to their robust construction, exceptional performance, and long-term reliability.
Eccentric offset butterfly control valves are categorized based on the number of offsets in their design. Each type offers distinct advantages, making them suitable for specific applications. Below, we explore the three main types:
The single offset butterfly control valve is the simplest of the three types. In this design, the stem axis is positioned away from the centerline of the disc seat and body seal (Offset One). This offset reduces the contact between the disc and the seat during operation, minimizing wear and tear on both components. As a result, single offset valves tend to have a longer lifespan compared to traditional centered disc valves.
Single offset valves are commonly used in applications where moderate sealing and durability are required. They are particularly effective in low-pressure systems and environments where frequent operation is necessary.
Double offset butterfly control valves, also known as high-performance butterfly valves, feature two offsets. The first offset is similar to that of a single offset valve, where the stem axis is positioned away from the centerline of the disc seat and body seal (Offset One). The second offset involves the eccentricity of the shaft relative to the centerline of the bore (Offset Two).
This dual-offset design creates a cam-like motion during operation, which significantly reduces friction and wear on the seat and seal. The cam action ensures that the disc only contacts the seat at the final moment of closure, further enhancing the valve's sealing capabilities and durability. Double offset valves are ideal for applications requiring higher performance, such as those involving higher pressures, temperatures, or corrosive media.
Triple offset butterfly control valves represent the pinnacle of eccentric offset valve technology. In addition to the two offsets found in double offset valves, triple offset valves feature a third offset: the conical shape of the seating surface (Offset Three). This conical design ensures that the disc and seat only make contact at the point of closure, eliminating friction and wear during operation.
The triple offset design provides the highest level of sealing performance, making these valves suitable for the most demanding applications. They are often used in critical processes where zero leakage is essential, such as in the oil and gas industry, power plants, and chemical processing facilities. Additionally, triple offset valves are highly resistant to wear, ensuring long-term reliability even in harsh operating conditions.
Eccentric offset butterfly control valves offer several key advantages over traditional centered disc butterfly valves. These benefits make them a preferred choice for a wide range of industrial applications:
The eccentric design minimizes contact between the disc and seat during operation, reducing friction and wear. This extends the valve's lifespan and lowers maintenance costs.
The off-center positioning of the disc ensures a tighter seal when the valve is closed, preventing leaks and enhancing safety in high-pressure or high-temperature environments.
By reducing friction and wear, eccentric offset valves operate more smoothly and efficiently, even in demanding conditions.
These valves are suitable for a wide range of applications, including those involving corrosive media, high pressures, and extreme temperatures.
The robust design and reduced wear make eccentric offset valves highly durable, ensuring reliable performance over an extended period.
Eccentric offset butterfly control valves are widely used across various industries due to their superior performance and reliability. Some of the key applications include:
These valves are used in pipelines, refineries, and offshore platforms to control the flow of crude oil, natural gas, and other hydrocarbons. Their ability to withstand high pressures and temperatures makes them ideal for this industry.
In chemical plants, eccentric offset valves are used to handle corrosive and abrasive media. Their tight sealing and resistance to wear ensure safe and efficient operation.
Power plants rely on these valves to control the flow of steam, cooling water, and other fluids. Their durability and reliability are critical in maintaining uninterrupted power generation.
Eccentric offset valves are used in water treatment facilities to regulate the flow of water and chemicals. Their ability to prevent leaks ensures the integrity of the treatment process.
Eccentric offset butterfly control valves represent a significant advancement in valve technology, offering superior performance, durability, and sealing capabilities compared to traditional centered disc designs. Their unique off-center configuration reduces friction and wear, extends lifespan, and ensures tight sealing, making them ideal for a wide range of industrial applications.
Whether it's a single, double, or triple offset valve, each type offers distinct advantages tailored to specific operational requirements. From oil and gas to chemical processing, power generation, and water treatment, these valves play a critical role in ensuring safe, efficient, and reliable fluid control.
As industries continue to demand higher performance and greater reliability, eccentric offset butterfly control valves are poised to remain a cornerstone of modern fluid control systems. Their innovative design and proven track record make them an indispensable tool for engineers and operators worldwide.
