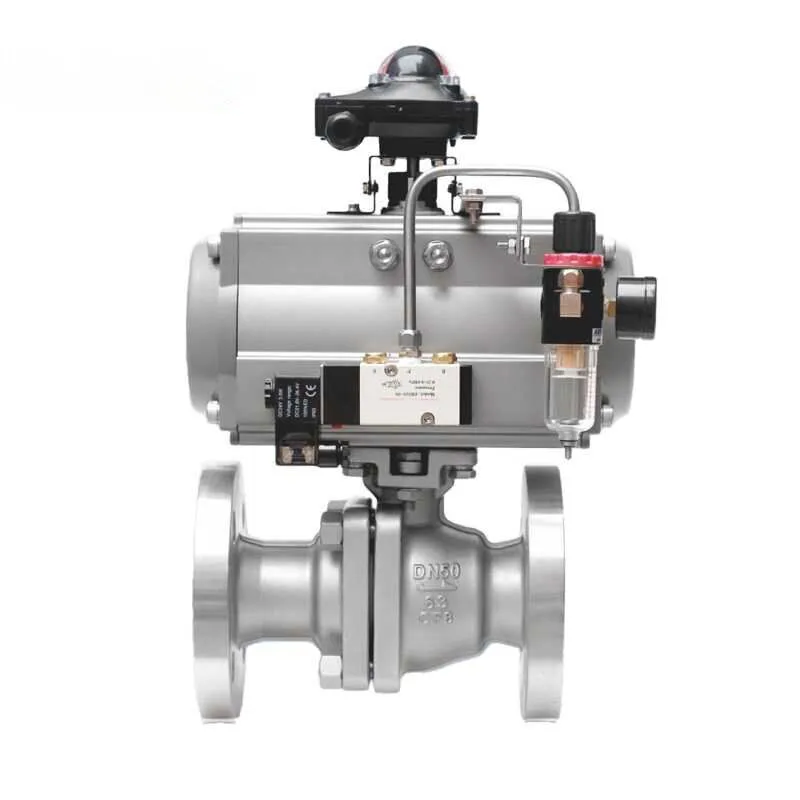

A pneumatic cut-off ball valve is a high-performance industrial valve designed for efficient and reliable on/off control of fluids using compressed air as the driving force. It is typically equipped with essential components such as a stroke limit switch, a solenoid valve, a pressure-reducing valve, and an air source within the pressure range of 0.4 to 0.7 MPa. These elements work together to enable remote or automated valve operation while sending passive contact signals to indicate whether the valve is open or closed.
This valve plays a vital role in industries that demand quick response times and secure shut-off functions. It is especially valuable in scenarios where electric power may not be reliable or safe. Pneumatic cut-off ball valves are widely adopted across sectors like chemical processing, oil and gas, textiles, electric power generation, pharmaceuticals, food and beverage, refrigeration, aerospace, aviation, papermaking, and even sewage treatment.
The actuator that powers the valve can be either single-acting or double-acting, depending on system requirements. Single-acting actuators offer a unique safety advantage: in the event of a power or air supply failure, the valve can automatically return to its default open or closed position, ensuring the system remains secure and operational under emergency conditions.
Pneumatic cut-off ball valves are engineered with a variety of structural and functional features that enhance their performance in demanding environments. Below are some of the most notable characteristics:
Ball valves, by design, offer some of the lowest fluid resistance among all valve types. Even in cases where the valve size is reduced, the internal flow path remains streamlined, allowing for minimal pressure loss and high flow efficiency. This makes them ideal for applications where maintaining flow rate is critical.
Equipped with thrust bearings, pneumatic cut-off ball valves reduce the friction on the valve stem during operation. This allows the stem to move smoothly and with greater precision, which contributes to the valve’s longevity and reliability.
The valve seat is typically made from elastic materials such as Teflon (PTFE), known for their chemical resistance and self-lubricating properties. These materials provide tight sealing even under fluctuating pressure conditions. In fact, the valve’s sealing performance improves as the pressure increases, making it ideal for both medium and high-pressure environments.
Since the valve stem rotates rather than moves vertically, the stem packing experiences less wear and tear. This rotational motion reduces the likelihood of leakage and ensures long-term sealing integrity, especially in pressurized applications.
The use of self-lubricating materials like PTFE minimizes friction and wear on the moving components. Combined with robust construction and precision engineering, this contributes to the valve’s durability and long operational life.
Modern pneumatic cut-off ball valves incorporate a variety of design innovations to meet the demands of different industrial applications. Here’s a closer look at the features that make these valves both versatile and dependable:
The valve body is typically manufactured through precision casting or forging processes, ensuring structural strength, dimensional accuracy, and an aesthetically clean finish. The compact design supports installation in tight spaces without compromising performance.
These valves often utilize a fixed O-type ball design, where the ball rotates along with the stem. The rotation ensures consistent contact between the ball and the valve seat, providing effective shut-off capability and strong shearing force—particularly useful for cutting through thick or viscous media.
The valve seat is supported by cylindrical or butterfly-type springs, which apply a constant preload. This design ensures automatic compensation for wear, enhancing the self-sealing ability of the valve. It also allows the valve to automatically relieve internal cavity pressure caused by temperature fluctuations, thereby improving operational safety—especially when transporting volatile liquids.
By fixing the ball in position and allowing the stem to rotate smoothly, the valve reduces the amount of torque needed for operation. This not only makes manual operation easier (when applicable) but also lowers the load on the actuator, improving overall energy efficiency.
The valve can be configured with a double block and bleed design, which ensures complete shut-off by isolating both sides of the valve. This feature is critical in applications where zero leakage is required for safety or process integrity.
To accommodate different working conditions, various sealing structures are available. Users can select from upstream seat seals, downstream seat seals, or upstream sealing with seat relief, depending on specific application needs. The sealing options include:
Soft sealing (Teflon or similar materials) for standard operations
Hard sealing (metal-to-metal) for high-temperature or abrasive media
Optional surface hardening treatment for extended wear resistance
For applications involving liquid media that may expand under temperature changes, the valve features an automatic cavity pressure relief mechanism. When internal pressure builds up, the valve seat alone can relieve the excess pressure without the need for an external safety valve, thereby increasing safety and reliability.
In special cases such as fire exposure or contamination of the sealing surface, the valve offers an emergency grease injection feature. A built-in grease valve allows a grease gun to inject sealing compound directly into the seat area to quickly restore sealing and minimize downtime.
Depending on the application, the valve can be designed with a fire-safe structure, which maintains sealing integrity during high-temperature conditions. Additionally, anti-static features prevent electrostatic discharge during operation, and anti-blowout stem designs ensure that the valve stem remains securely in place under extreme pressure.
For cryogenic or low-temperature applications, the valve can be provided with a long stem extension, allowing safe and efficient operation even in sub-zero environments.
Pneumatic cut-off ball valves are indispensable in numerous industrial sectors due to their fast actuation, dependable sealing, and robust construction. Common application areas include:
Chemical and Petrochemical Industries: For handling aggressive fluids and maintaining process control in complex systems.
Oil and Gas Pipelines: Providing quick shut-off and pressure relief in both upstream and downstream operations.
Pharmaceutical and Food Processing: Ensuring sanitary conditions with clean and precise shut-off capabilities.
Textile and Paper Industries: Managing steam, chemicals, and water flow for efficient production lines.
Power Plants: Controlling boiler feedwater, steam, and cooling systems.
Sewage and Water Treatment: Suitable for wastewater control and fluid management in municipal infrastructure.
Aerospace and Aviation: Handling specialized fluids in high-pressure, high-temperature systems.
The pneumatic cut-off ball valve is a vital component in modern automated fluid control systems. Its combination of precision engineering, reliable sealing, and flexible actuation makes it a preferred choice for a wide range of industrial applications. Whether you're handling corrosive chemicals, high-pressure steam, or sensitive pharmaceutical fluids, this valve offers the performance and safety features required to keep operations running smoothly.
Its adaptability—with options for fire safety, anti-static design, emergency sealing, and pressure relief—ensures that it meets the stringent requirements of today's industrial environments. As industries continue to evolve toward smarter, safer, and more efficient systems, the pneumatic cut-off ball valve stands out as a cornerstone of fluid automation technology.
