Understanding the Working Principle of Control Valve Positioners
On this page
Control valve positioners play a critical role in enhancing the performance and precision of control valves in various industrial applications. These devices ensure that the control valve reaches the desired position as dictated by the control system, thereby maintaining the accurate regulation of fluid flow. This article explores the working principle of control valve positioners, their types, and their significance in industrial processes.

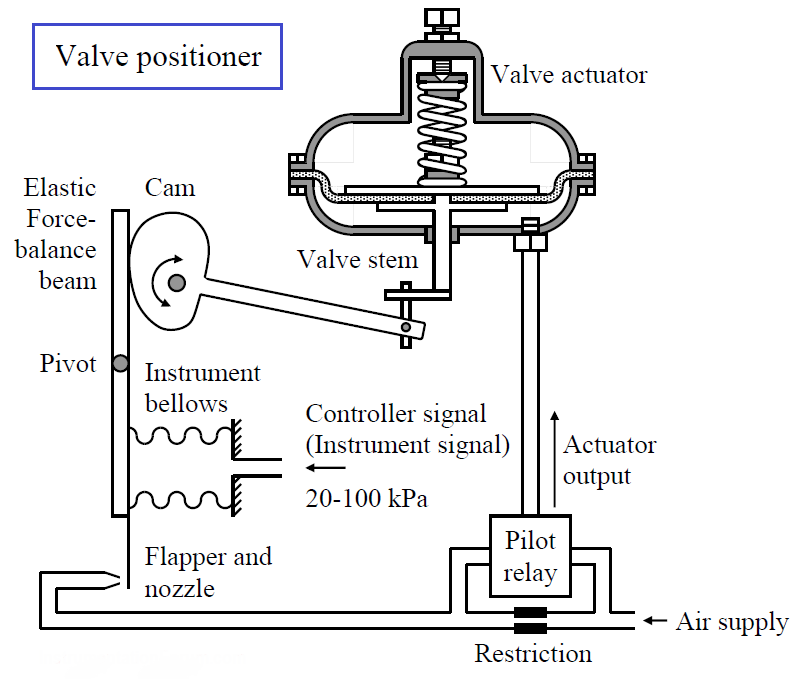

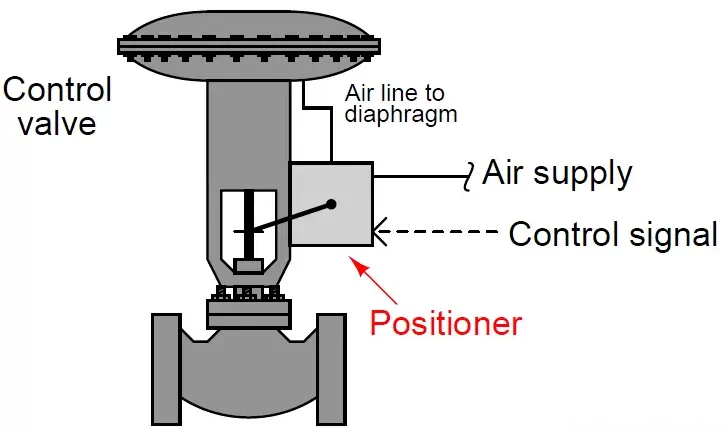

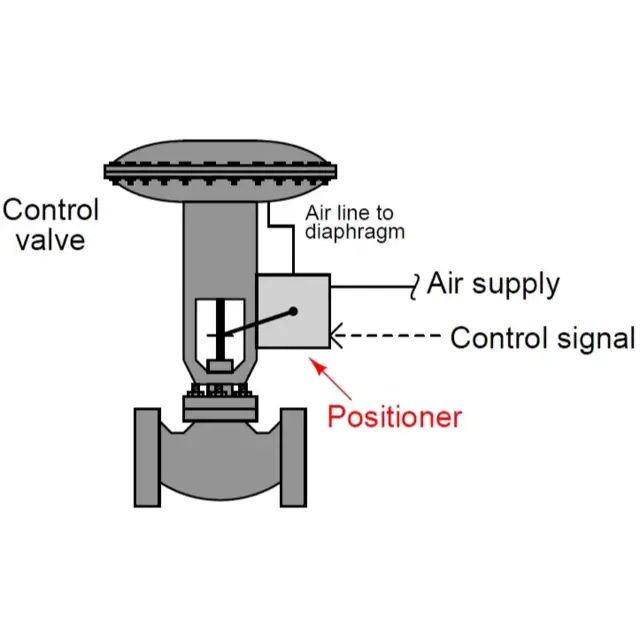

A control valve positioner is an auxiliary device attached to a control valve to provide accurate positioning of the valve stem. The main components of a positioner include: The positioner receives an input signal from the process controller, indicating the desired valve position. This system monitors the actual position of the valve stem and provides feedback to the positioner. Adjusts the actuator to align the valve position with the input signal. Manages the supply of energy (pneumatic, electric, or digital) to the actuator based on the input signal and feedback. The working principle of a control valve positioner can be understood through the following steps: The positioner receives a control signal from the process controller. This signal represents the desired valve position and is typically in the form of a pneumatic (3-15 psi), electric (4-20 mA), or digital signal. The positioner compares the desired position (setpoint) with the actual position of the valve stem. The actual position is detected by a feedback mechanism, often a mechanical linkage or a non-contact sensor. If there is a discrepancy between the desired and actual positions, the positioner generates a corrective signal. This signal adjusts the actuator, which moves the valve stem to the correct position. The actuator, powered by pneumatic, electric, or hydraulic energy, moves the valve stem accordingly. As the valve stem moves, the feedback mechanism continuously monitors its position and provides real-time updates to the positioner. The positioner continuously adjusts the actuator until the actual position matches the desired position. Once equilibrium is achieved, the valve remains in the correct position until a new control signal is received.
Control valve positioners come in various types, each designed to meet specific application requirements:
Use air pressure to control the actuator. They are suitable for applications where explosion-proof operation is necessary.
Combine electrical and pneumatic signals, converting an electrical control signal into a pneumatic output to control the actuator.
Utilize microprocessors to offer advanced control features. They can be configured and monitored remotely, providing diagnostic information and improving overall process efficiency.
Control valve positioners are essential in numerous industries, including oil and gas, chemical processing, water treatment, and power generation. They enhance the accuracy, reliability, and responsiveness of control valves, contributing to improved process control and efficiency.
For instance, in an oil refinery, precise control of fluid flow is crucial for optimizing production and maintaining safety. Positioners ensure that control valves respond accurately to control signals, minimizing the risk of process upsets and maximizing output quality. In water treatment plants, positioners help maintain the correct dosage of treatment chemicals, ensuring the safety and quality of the water supply. Positioners ensure that the valve reaches the exact position required by the control system, enhancing process precision. By quickly adjusting the actuator, positioners enable rapid response to control signals, improving process dynamics. Positioners minimize the lag between the control signal and valve movement, ensuring more consistent control. Digital positioners provide valuable diagnostic data, helping identify maintenance needs and preventing unplanned downtime. Control valve positioners are vital components that enhance the performance and accuracy of control valves in industrial systems. By ensuring precise valve positioning, they contribute significantly to the efficiency, reliability, and safety of various processes. Understanding their working principle and benefits helps in selecting the right positioner for specific applications, ultimately leading to improved operational outcomes.
