Pneumatic ball control valves have become an integral component in a wide range of industrial fluid systems. Designed for precision, reliability, and automation, these valves are actuated using compressed air or gas, making them ideal for applications that demand fast response times, energy efficiency, and long-term durability. As industries continue to pursue smarter and more efficient process control technologies, pneumatic ball valves remain a preferred choice for engineers and system designers worldwide.

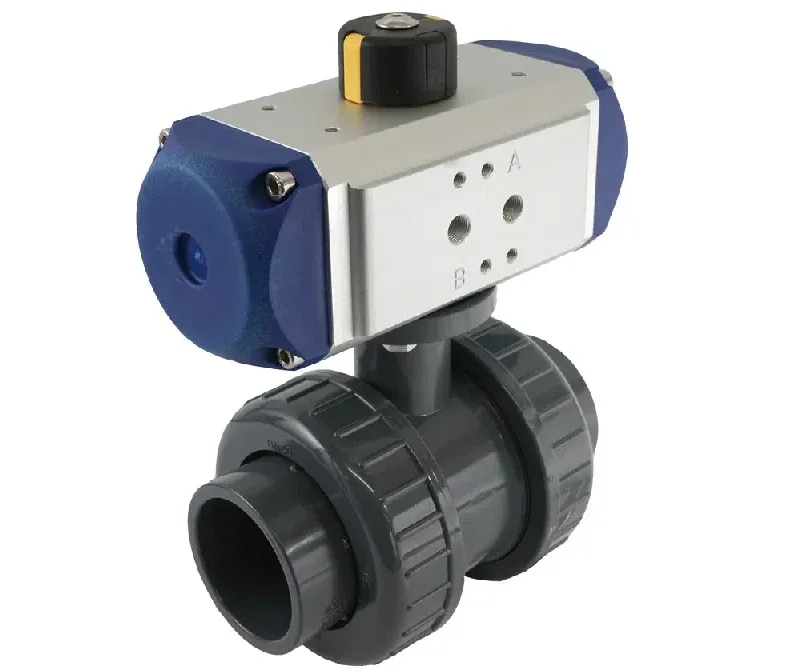

A pneumatic ball control valve is an automatic shutoff valve that employs a spherical ball to control the flow of fluids or gases through a pipe. The valve opens or closes by rotating the ball 90 degrees, which is achieved through the actuation force provided by compressed air. The ball, which has a hole through its center, aligns with the flow path when open and blocks it when rotated to the closed position.
This rotational movement is controlled by a pneumatic actuator mounted directly onto the valve. Pneumatic actuators convert energy from compressed air into mechanical motion, ensuring a quick and responsive operation that is essential for modern automated systems.
The integration of pneumatic actuators with ball control valves allows for accurate modulation and flow control, which is especially beneficial in high-volume, high-pressure applications across industries such as chemical processing, water treatment, oil and gas, pharmaceuticals, food and beverage, and power generation.

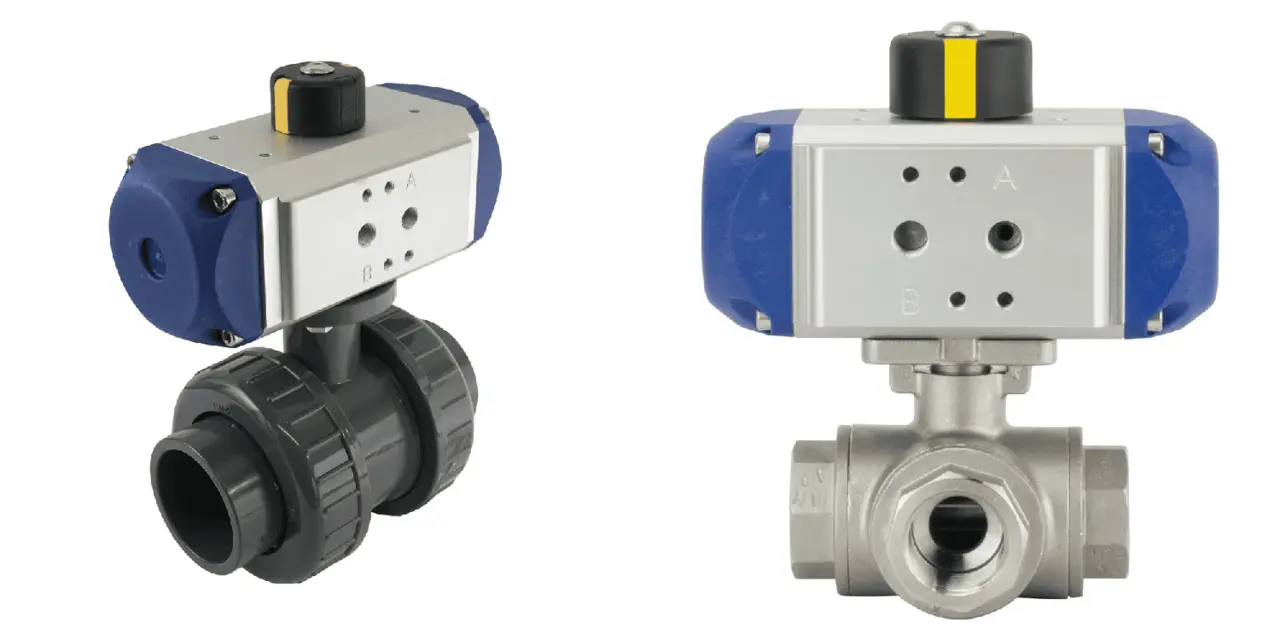

A typical pneumatic ball valve assembly comprises two primary elements:
1. The Ball Valve Body
2. The Pneumatic Actuator
These two components are usually connected using an ISO 5211-compliant flange. The ISO 5211 standard ensures interchangeability between various actuators and valves by providing uniform mounting interface dimensions. Common flange sizes include F03, F04, and F05, among others. When assembling or replacing parts, it is critical to match the flange and shaft sizes to guarantee compatibility and optimal performance.
The ball inside the valve is precision-machined and typically made of stainless steel or other corrosion-resistant metals. It rotates inside a cavity and is sealed by seats—often made from PTFE or other soft materials—to ensure a tight shut-off. When the ball’s bore aligns with the piping, media flows through; when turned perpendicular, flow is halted.
Pneumatic actuators can be categorized into two types:
Single-Acting (Spring Return): In this configuration, compressed air moves the valve to the open or closed position, while a spring returns it to its default position when the air is released. This design is ideal for fail-safe applications, where the valve must return to a specific position during a power or air failure.
Double-Acting: Air pressure is used for both opening and closing operations, eliminating the need for springs. Double-acting actuators are often preferred for larger valves or applications requiring frequent cycling and bidirectional control.
Compared to electric actuators, pneumatic actuators generally offer faster cycle times, are more suitable for explosive environments (no risk of sparks), and come with a lower initial cost, particularly for larger valve sizes.
Pneumatic ball valves offer numerous benefits in industrial flow control systems:
High-Speed Operation: Pneumatic actuators provide quick open/close response times, making them ideal for applications that require fast actuation.
Fail-Safe Design: Single-acting versions automatically revert to a default position upon air loss, which enhances safety in critical systems.
Energy Efficiency: Unlike electric actuators that consume power continuously, pneumatic systems only use energy during actuation.
Compact and Lightweight: Pneumatic actuators are generally lighter and smaller compared to equivalent electric motors.
Durability and Reliability: Engineered with tight tolerances and robust seals, these valves are built to withstand harsh environments and continuous operation.
Low Maintenance: With fewer moving parts and minimal heat generation, pneumatic systems tend to require less maintenance over their operational lifetime.
Proper installation is crucial for the performance and longevity of pneumatic ball valves. The following factors should be carefully evaluated during setup:
Ensure that the valve and actuator are suitable for the operating environment. For example, in corrosive atmospheres or outdoor settings, stainless steel valve bodies and weatherproof or explosion-proof actuator housings may be required.
Always adhere to safety standards during installation. This includes wearing protective equipment such as gloves, safety goggles, and face masks—especially when handling lubricants, sealants, or chemical media.
Verify the compatibility of all components, including pressure ratings, temperature tolerances, connection types, and materials. The actuator must match the torque requirements of the valve and operate within the same pressure range.
Before commissioning, inspect all threads, seals, and gaskets to ensure secure fitment and avoid leakage. Any deviation from the required torque values or alignment can result in system inefficiencies or mechanical failure.
Plan for future maintenance and servicing. Select mounting orientations and access points that allow technicians to easily reach and replace parts. A valve located in a hard-to-reach or hazardous area may increase downtime and service costs.
Different industrial setups demand specific connection methods for integration into pipeline systems. Here are the five most commonly used connection styles for pneumatic ball valves:
These valves are fitted with flanged ends and bolted directly to mating flanges on the pipeline. They provide strong, leak-free connections and are ideal for high-pressure or large-diameter applications. Flanged valves are easy to install and remove, making them suitable for systems that require frequent maintenance.
Threaded connections offer a quick and cost-effective way to integrate valves into piping systems, especially for small-diameter pipelines. These valves typically come with NPT or BSP threading, making them compatible with standard pipe fittings.
Often used in sanitary or food-grade applications, tri-clamp (or sanitary clamp) valves provide a smooth, crevice-free connection that’s easy to clean and dismantle. Only two bolts are needed for assembly, making them ideal for low-pressure applications where hygiene is paramount.
Wafer-style valves are mounted between two pipeline flanges and secured with bolts that pass through both flanges and the valve body. This design is space-saving and suitable for tight installations. The valve body often includes positioning holes for quick and accurate alignment.
Welded connections provide the most robust and permanent solution, eliminating the need for additional seals or gaskets. These valves are suitable for high-pressure, high-temperature environments where leaks are unacceptable. They are commonly found in power plants, chemical refineries, and oil & gas pipelines.
Pneumatic ball valves are widely used across diverse sectors for controlling the flow of liquids, gases, and slurries. Key industries and applications include:
Oil & Gas: Flow isolation, emergency shutoff, and gas distribution systems
Chemical Processing: Corrosive fluid handling, blending systems, and batch reactors
Water Treatment: Filtration systems, pump stations, and chlorine dosing lines
Pharmaceuticals & Food: Hygienic fluid transfer in cleanroom environments
HVAC Systems: Heating and cooling water regulation in building automation
Power Generation: Steam and condensate control in boiler systems
These valves are often integrated with process control systems via solenoids, positioners, and feedback sensors, enabling remote monitoring and automation through SCADA or PLC systems.
While pneumatic ball valves are known for their durability, they are not immune to challenges. Common issues include:
Air Supply Contamination: Dirty or moisture-laden air can clog actuator internals, leading to sluggish operation or failure.
Seal Degradation: Over time, valve seats and stem seals may wear out, causing internal leakage or reduced performance.
Incorrect Sizing: An undersized actuator may struggle to fully operate the valve, while an oversized one can cause excessive wear or safety hazards.
To mitigate these problems, a regular maintenance schedule is recommended. This includes:
Periodic cleaning and lubrication of moving parts
Inspection of seals, gaskets, and valve seats
Checking actuator pressure and functionality
Verifying torque output and cycle speed
Pneumatic ball control valves offer a blend of speed, strength, and simplicity that is difficult to match. Their design flexibility, low operating cost, and wide compatibility make them a go-to solution for engineers managing fluid control in automated systems. Whether it's handling corrosive chemicals, pressurized steam, or clean water, pneumatic ball valves deliver dependable performance across a wide spectrum of industries.
For plant managers, maintenance teams, and system integrators, understanding the core principles of pneumatic actuation and choosing the right valve design and connection type are key to ensuring system longevity and optimal control.
As the demand for automation continues to rise, pneumatic ball valves will remain a central player in the quest for smarter, safer, and more sustainable industrial processes.
