Pneumatic ball valves play a vital role in modern fluid control systems across a wide range of industries. These valves are widely used due to their efficiency, durability, and ability to integrate seamlessly with automated control systems. Their operation relies on compressed air, which powers an actuator to rotate the valve’s ball core and control the fluid flow within a pipeline.
This article provides an in-depth look into the working principle of pneumatic ball valves, their key features, structure classifications, advantages, and industry applications. Understanding these aspects will help industries select the appropriate valve type for specific operational needs, ensuring efficiency and long-term reliability.

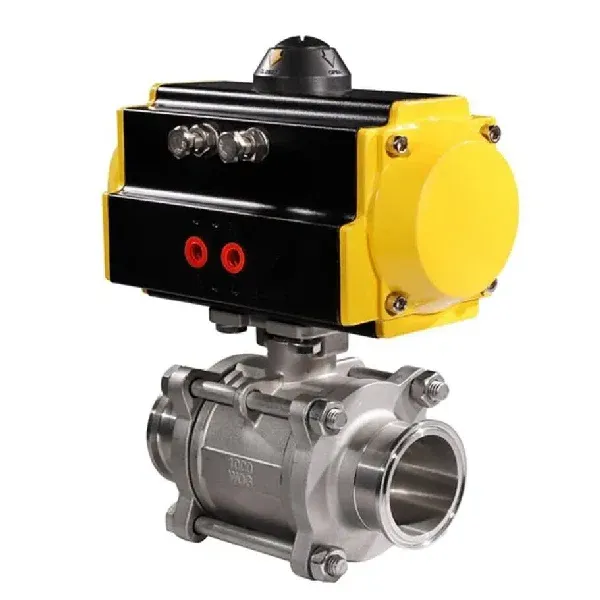

Pneumatic ball valves operate by utilizing an actuator that receives compressed air to drive a ball core inside the valve body. This ball core features a circular through-hole or channel that aligns with the pipeline when the valve is in the open position. When the actuator is triggered, it rotates the ball 90 degrees, shutting off the flow.

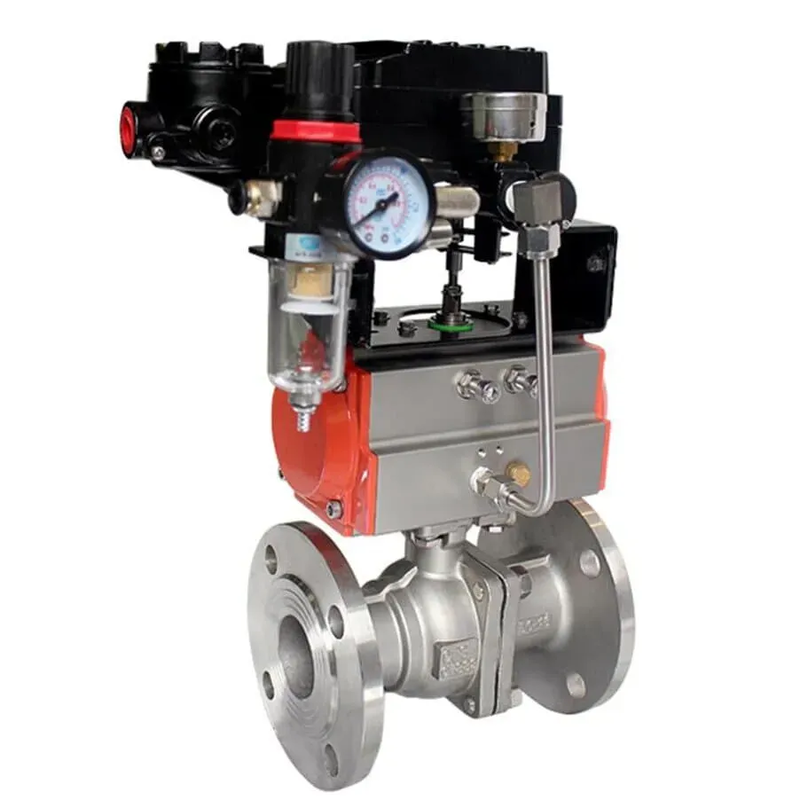

A valve positioner can be integrated with the actuator to regulate the opening degree of the valve, allowing for precise flow adjustment. The fast response time of pneumatic actuation enables efficient fluid control, making these valves ideal for applications requiring quick shut-off or precise regulation.
Unlike manually operated ball valves, pneumatic ball valves require no human intervention, reducing the risk of errors and enhancing operational efficiency. Additionally, because they function using compressed air rather than electricity, they are safer for use in hazardous environments where electrical sparks could pose a risk.
One of the biggest advantages of pneumatic ball valves is their rapid response time. Their pneumatic actuators enable quick opening and closing, ensuring immediate fluid control and reducing the risk of delays in operations.
Designed to withstand high-pressure environments, pneumatic ball valves feature precision-engineered components that allow them to handle fluid pressure without deforming or failing.
Many pneumatic ball valves are made from materials like stainless steel, copper alloys, and PTFE (Polytetrafluoroethylene), ensuring durability in environments exposed to corrosive chemicals and extreme temperatures.
Pneumatic ball valves have superior sealing properties, which prevent fluid leakage and contamination. Their tight shut-off capability makes them ideal for critical applications where leakage can result in operational failures or safety hazards.
Compared to other valve types, pneumatic ball valves are smaller and lighter. This compact structure makes installation and maintenance easier, reducing overall system costs.
Pneumatic ball valves can be easily integrated into industrial automation systems, receiving electrical or hydraulic control signals. This allows for remote operation, reducing manual labor and improving efficiency.
Pneumatic ball valves can be classified based on their functional design and application. The two primary types are on-off pneumatic ball valves and regulating pneumatic ball valves.
Designed primarily for opening and closing fluid flow completely.
The valve core typically features an O-type ball, which has a full-bore passage identical to the pipeline diameter.
Provides minimal resistance to fluid flow, making it an ideal choice for applications where quick shut-off is required.
Commonly used in applications such as oil and gas, water treatment, and chemical processing.
Designed for precise flow control instead of just on/off functionality.
The valve core features a V-shaped ball, allowing for more accurate flow adjustment.
When paired with a positioner, regulating pneumatic ball valves can precisely control fiber-containing and granular media.
Used in industries such as food processing, pharmaceuticals, and high-precision manufacturing.
Pneumatic ball valves consume significantly less energy than electrically operated valves, as they utilize compressed air instead of continuous electrical power.
With fewer moving parts compared to other valve types, pneumatic ball valves require less maintenance, resulting in reduced operational costs and downtime.
Since pneumatic ball valves operate using compressed air, they eliminate the risk of electrical sparks, making them safer for use in explosive or flammable environments.
Pneumatic ball valves are used in various industries, including oil and gas, water treatment, food and beverage processing, and chemical manufacturing. Their ability to handle different types of fluids, including gases, steam, and corrosive chemicals, makes them highly adaptable.
These valves can be integrated with SCADA and other automation control systems, allowing remote monitoring and control, improving process efficiency and reducing human error.
Pneumatic ball valves are used in pipelines to control the flow of oil and gas. Their ability to handle high pressure and corrosive materials makes them essential for upstream and downstream applications.
These valves regulate water and wastewater flow, ensuring optimal treatment processes. Their corrosion resistance makes them ideal for handling treated and untreated water.
Pneumatic ball valves play a crucial role in controlling the flow of ingredients and liquids in food processing. The use of sanitary-grade materials ensures compliance with hygiene standards.
These valves ensure precise control over liquid medicines and chemicals used in drug manufacturing, maintaining purity and consistency.
Pneumatic ball valves are designed to withstand harsh chemicals, acids, and extreme temperatures, making them essential for chemical production and transport.
As industries continue to adopt smart automation and Industry 4.0 technologies, pneumatic ball valves are evolving to meet modern demands. The following trends are shaping the future of pneumatic ball valve technology:
New-generation valves are being designed with sensors that provide real-time data on flow rates, pressure levels, and valve conditions, allowing predictive maintenance and system optimization.
Advancements in actuator design are making pneumatic ball valves more energy-efficient, reducing air consumption and operational costs.
The development of new corrosion-resistant and high-durability materials is extending the lifespan of pneumatic ball valves in extreme conditions.
Future pneumatic ball valves will be more compatible with AI-driven control systems, enabling higher precision and fully autonomous operation.
Pneumatic ball valves are indispensable components in modern industrial fluid control systems. Their ability to provide fast switching, high-pressure resistance, excellent sealing, and automation capabilities makes them highly efficient and reliable.
As industries continue to advance toward greater automation and energy efficiency, pneumatic ball valves will remain a preferred choice for fluid control applications. Understanding their working principles, key features, and advantages can help industries make informed decisions when selecting the right valve for their specific needs, ensuring long-term operational success.
